DEPLOYABLE WATER
PURIFICATION SYSTEM
SMART WATER PURIFIER
DWPS-T2-01

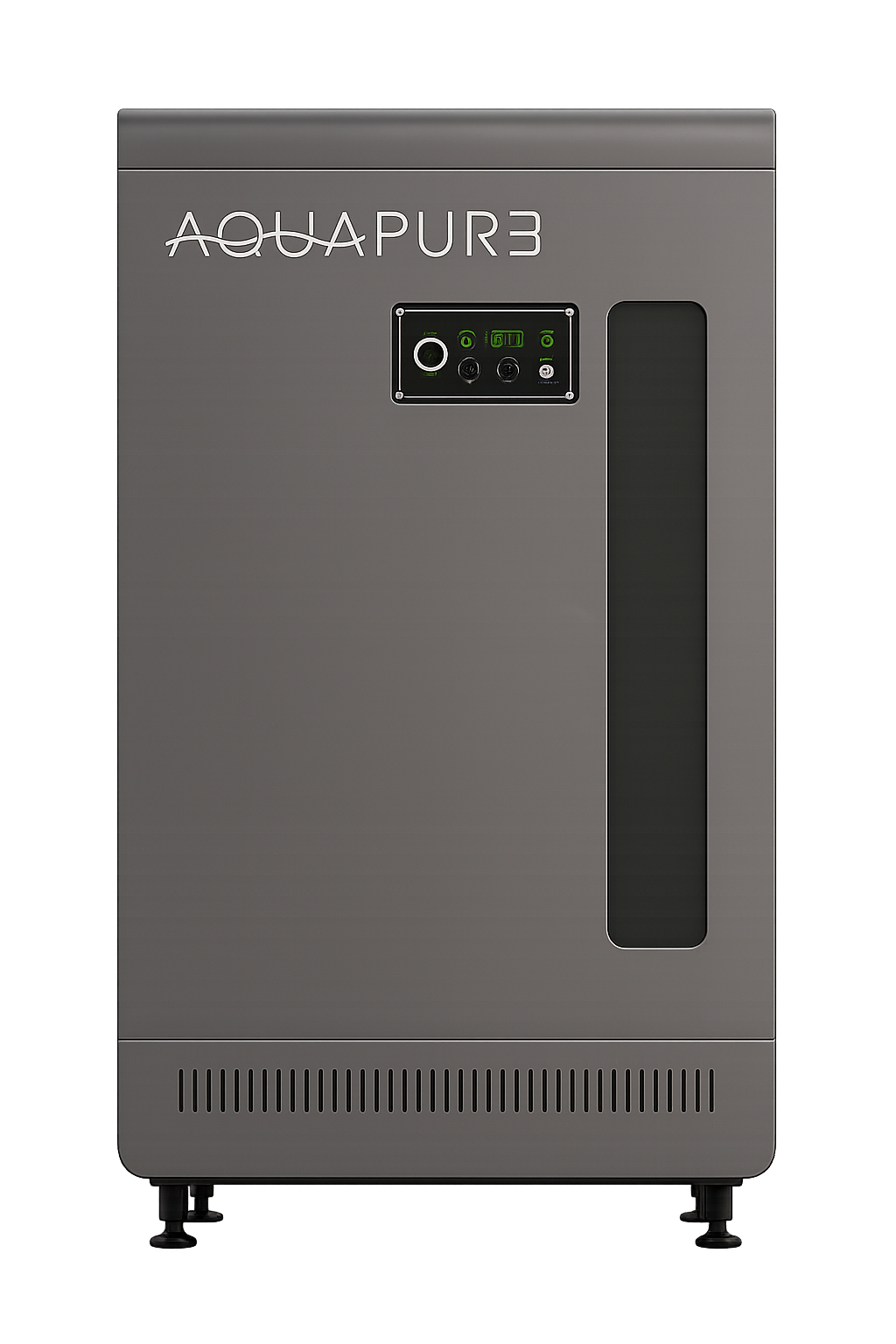

The AQUAPURE Pulse Resonance Smart Water Purifier is an advanced water treatment system utilizing pulse resonance purification technology to deliver clean drinking water without traditional filter consumables. Designed for large-scale deployment, it combines intelligent monitoring, low maintenance requirements, and continuous water quality management.
AQUAPURE: PULSE RESONANCE WATER PURIFIER
- MODEL
- AQ-R3
- PRODUCT BRAND
- AQUAPUR3
- WEIGHT
- To be confirmed
- DIMENSIONS
- To be confirmed
03 / SYSTEM CAPABILITIES
PULSE RESONANCE
WATER PURIFICATION
A filter-free purification platform designed for continuous, intelligent, and large-scale drinking-water production.
KEY FEATURES
Clean water through physical separation, intelligent monitoring, and low-maintenance operation.
PURE PHYSICAL WATER PURIFICATION
Uses pulse resonance blasting and separation to purify water without chemical additives.
NO FILTER REPLACEMENT REQUIRED
Eliminates traditional filter consumables, reducing maintenance, replacement work, and operating costs.
INTELLIGENT CLOUD MONITORING
Monitors water quality and consumption through a connected cloud-based management platform.
LARGE-SCALE WATER PRODUCTION
Produces up to 7.2 tons of purified water per day for high-demand and community-scale applications.
Water Outlet Pipe
Provides the purified-water output for direct distribution and use.
Return Pipe
Returns circulating water to the system to help maintain freshness.
Sewage Pipe
Discharges separated heavy metals and impurities as concentrated wastewater that may be reused for greening or other domestic purposes.
Power Supply
Operates using a 220V AC host power supply.
Pulse Motor
Uses a silent permanent-magnet motor for stable system operation.
Water Pump
Lifts water up to 36 meters, approximately equivalent to ten floors.
Water Storage Tank
Provides a total storage capacity of 0.3 tons.
Cloud Data Monitoring System
Monitors water quality and water consumption in real time.
Adjustable Angle Bracket
Stainless-steel, waterproof, and moisture-resistant construction with a 30 mm adjustment range.
Pulse Resonance Purification Core
Uses pulse resonance blasting to separate impurities through a purely physical purification process.
04 / PRODUCT PARAMETERS
DEPLOYABLE WATER PURIFICATION SYSTEM
- NAME
- Pulse resonance water purifier
- BRAND
- AQUAPUR3
- MODEL
- AQ-R3
- HOST POWER SUPPLY
- AC 220V
- HOST POWER
- Rated 550W; standby 20W
- WATER PRODUCTION RATE
- 7.2 tons per day
- WATER STORAGE RATIO
- 3:1 clean water
- WATER EFFICIENCY LEVEL
- Level 1
- TANK WATER STORAGE
- 0.3 tons
- WATER SOURCE
- City tap water or rural mountain spring water
- WARRANTY PERIOD
- 1 year
- CIRCULATION MAIN MATERIAL
- Food-grade 304 stainless steel
- OPERATION AND MAINTENANCE
- No consumables, no filter replacement, zero additives, and a double-tube live-water system
- INSTALLATION SERVICE
- Available
- PRODUCT FUNCTIONS
- Direct drinking water, water-quality monitoring, and water-use management
- INSTALLATION METHOD
- Direct drinking through pipes, piped into the home, or connected to a water table
05 / DEPLOYMENT ADVANTAGES
Designed for safer access, reduced waste, and intelligent management.
Safe Large-Scale Purification
Supports safer drinking-water hygiene through a purely physical purification process suitable for broad deployment.
Reduced Water and Packaging Waste
Improves water-resource utilization while reducing dependence on bottled and barreled water.
Lower Labor and Logistics Demand
Reduces transportation, storage, and handling requirements associated with bottled-water distribution.
Emergency Water Reserve
The integrated storage tank provides an accessible reserve of clean drinking water during service interruptions.
Accessible Pure Water
Low-maintenance operation makes high-quality drinking water more convenient and affordable for end users.
IoT Water Management
Real-time monitoring supports an intelligent and controllable drinking-water management platform.
