Geo
INTELLIGENT LIGHTING
ILLUMINATION
GEO DELIVERS PLUG-AND-PLAY INTELLIGENT LIGHTING WITH UP TO 40% ENERGY SAVINGS, INTUITIVE DIMMING, AND DIRECT WI-FI CONTROL WITHOUT APPS OR INTERNET.

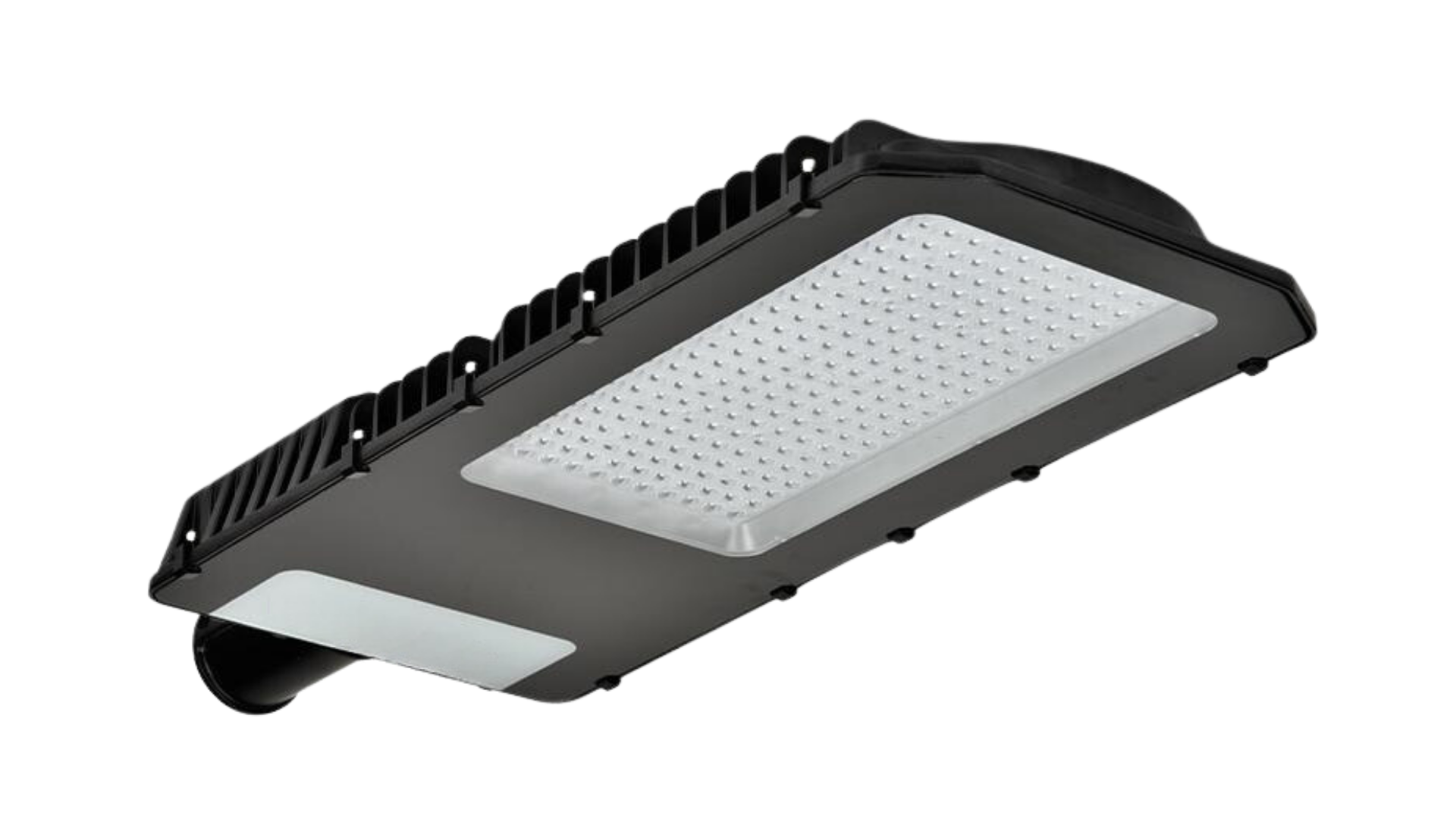

GEO: SATURN MODEL
- PRODUCT MODEL
- Saturn 150W
- INPUT VOLTAGE
- AC 100–240 V
- WEIGHT
- 9.4 kg
- DIMENSIONS
- 601 mm L × 226.5 mm W × 107 mm H

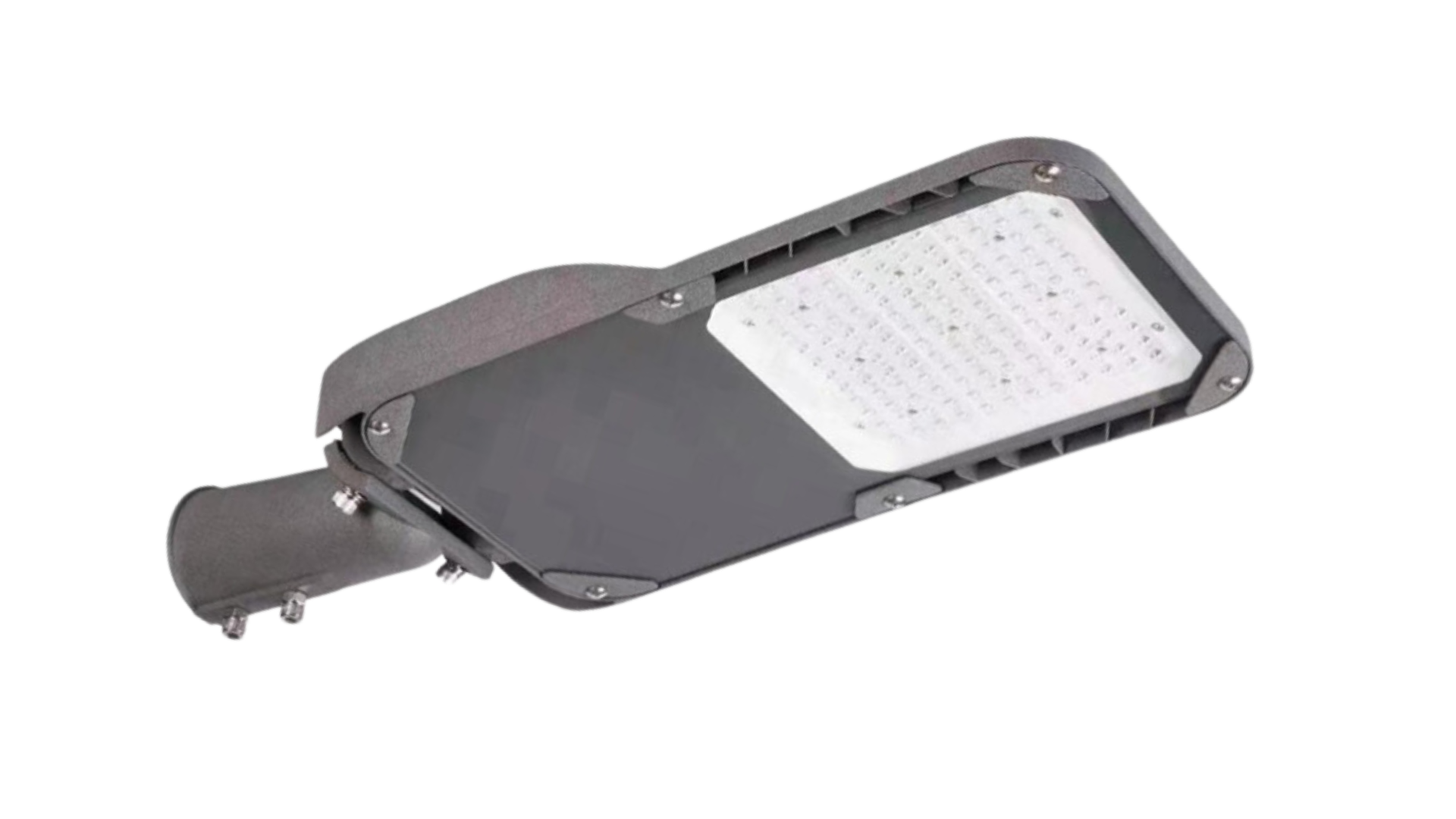

GEO: BALDER MODEL
- PRODUCT MODEL
- Balder Model
- INPUT VOLTAGE
- To be confirmed
- WEIGHT
- To be confirmed
- DIMENSIONS
- To be confirmed
03 / SYSTEM CAPABILITIES
Intelligent control.
Built into every light.
GEO combines adaptive output, offline control, programmable scheduling, and synchronized operation in one retrofit-ready lighting platform.
Dynamic Light Control
Raises output during peak traffic, lowers output during low traffic, and supports approximately 30–45% energy savings.
Offline Wi-Fi Control
Configure the lighting system through a direct Wi-Fi connection without an app, internet service, or external data connection.
GPS Time Synchronization
Uses GPS time and location data to maintain accurate, coordinated operating schedules.
Twelve Adjustable Schedules
Supports twelve programmable schedules for customized on, off, and dimming functions throughout the year.
Magic Click Tool
Resets connected lamps along one street using a simple three-toggle on-and-off sequence.
04 / TECHNICAL DOCUMENTATION
GEO Technical Overview
Product capabilities, core specifications, and component information presented as responsive website content instead of embedded images.
GEO FEATURE SUMMARY &PRODUCT OVERVIEW

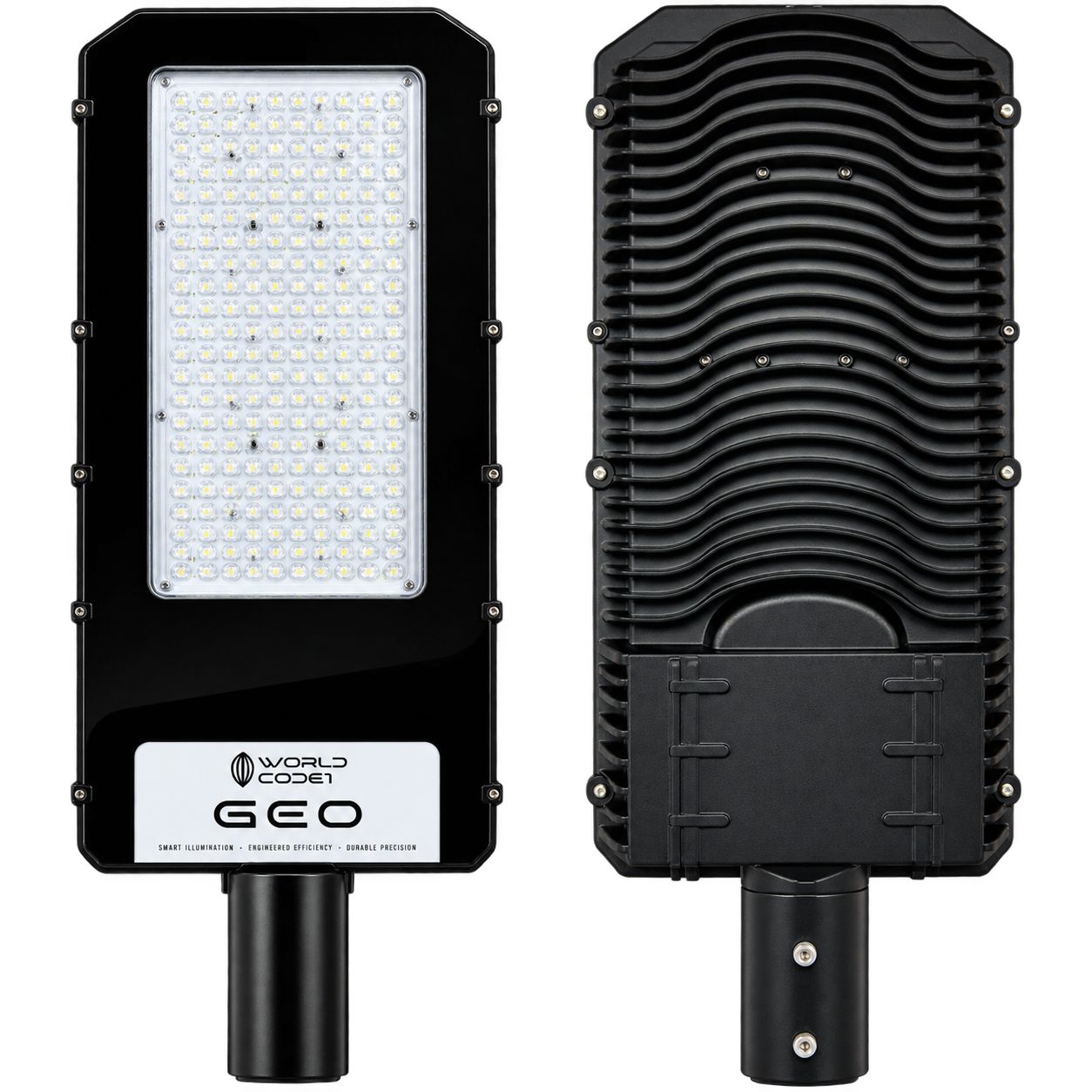

GEO STREET LIGHT / SATURN 150W
1. PRODUCT OVERVIEW

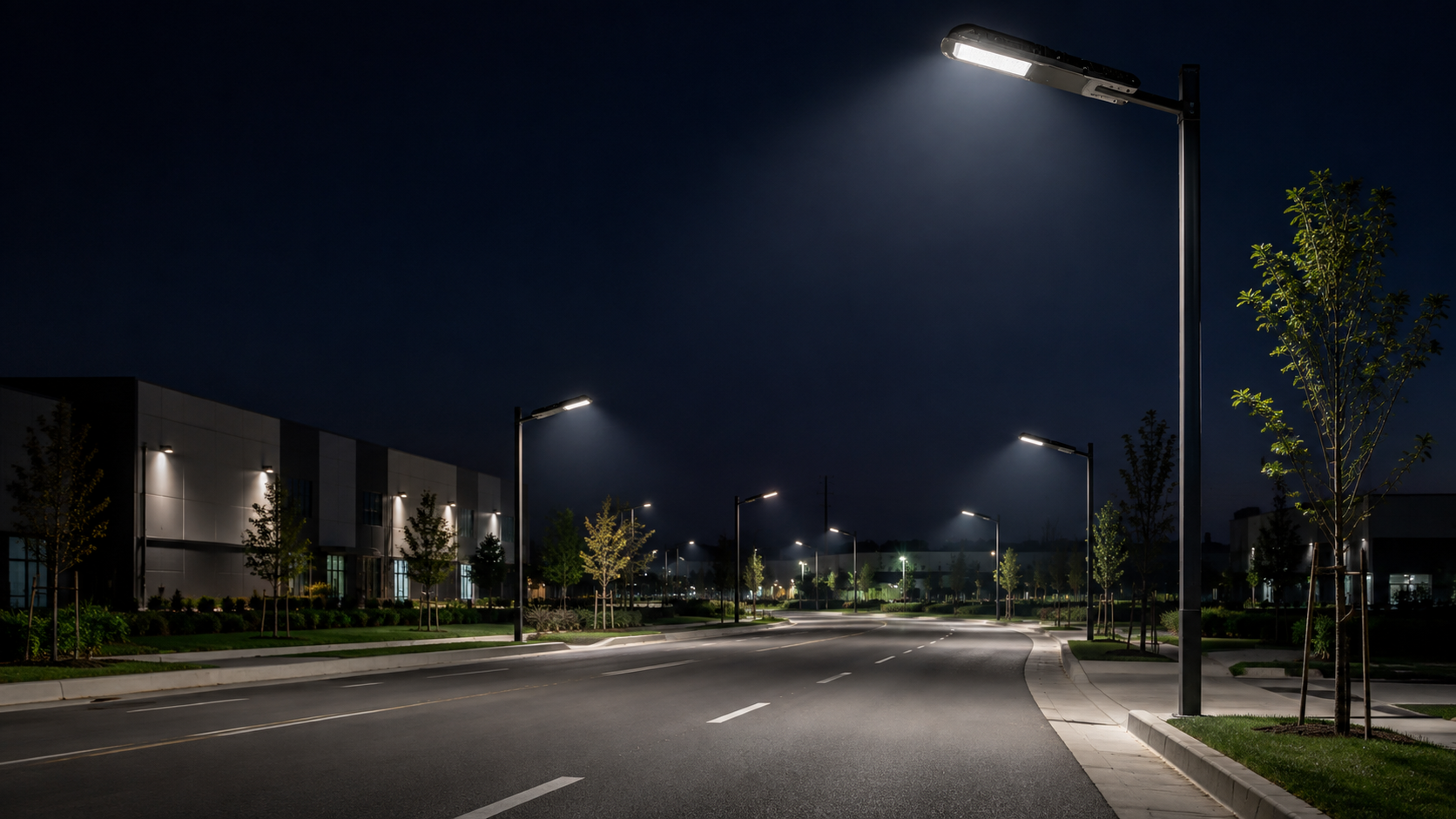

GEO is an intelligent street lighting system designed for energy efficiency, retrofit compatibility, and simple plug-and-play deployment. It supports smart dimming, direct Wi-Fi control without apps or internet, and synchronized scheduling for reliable day-to-day operation.
2. FEATURE SUMMARY
Dynamic Light Control — High power lighting during peak traffic; low power lighting during low traffic; supports approximately 30–45% energy savings.
Easy-to-Use Technology — No app, no internet, and no data connection needed; controlled with a simple Wi-Fi connection.
GPS Time & Date Synchronization — Uses GPS time and location for accurate scheduling.
Adjustable Time Schedules — 12 adjustable time schedules for customized on, off, and dimming functions.
Magic Click Tool — Resets connected lamps in one street with a simple three-toggle on/off sequence.
3. QUICK HIGHLIGHTS
- Plug and Play
- No Internet Needed
- Retrofit Ready
- No App Needed
- Intelligent On/Off System
- No Computer Needed
- Fully Dimming Scale
- Automatic Date and Time Synchronization
PRODUCT
SPECIFICATIONS
1. GENERAL INFORMATION
- • Product Name
- Street Light Geo Technology
- • Product Model
- Saturn 150W
- • Version No.
- V01
- • Specification No.
- WCAX-ID-LX150W-01
- • Date
- 2024-09-01
2. KEY FEATURES
- • Power Saving
- 30 to 40%
- • Wi-Fi Connection
- Simple
- • Programmable
- 12 programs for 12 months
- • Intelligent System
- Intelligent On/Off System
- • Safety Control
- Safety Lamp Temperature Control
- • Dimming
- Fully dimming scale
- • Installation
- Plug and Play
- • Compatibility
- Retrofit
- • Internet Requirement
- No Internet needed
- • Network Requirement
- No Network needed
- • Additional Devices
- No Computer needed
- • App Requirement
- No App needed
- • GPS
- Automatic Date and Time Synchronization
*The percentage of power saving depends on final adjustment in the programming.
APPLICATION &
COMPONENT
SPECIFICATIONS
GEO STREET LIGHT / SATURN 150W
1. APPLICATION
- • Installation Height
- Suitable for installation at 8–12 m
- • Power Supply Box
- Made of die-cast aluminum alloy for excellent heat dissipation and extended product life
- • Installation
- Lamp post
- • Application Areas
- Urban and rural roads; garden roads; industrial park roads
2. CHIP CHARACTERISTICS
- • LED Source
- Imported SMD3030 LED with high brightness and long life
- • Certification
- LED has LM-80 certification
3. DRIVER CHARACTERISTICS
- • Brand
- Domestic famous brand driver
- • Input Range
- 100–240 VAC
- • Protection Functions
- Short circuit, over current, over voltage, over temperature
- • Power Factor
- PF > 0.9 when load is > 75%
- • Design
- IP65 rating for dust and water resistance
4. HEAT SINK FEATURES
- • Material
- ADC12 aluminum with high thermal conductivity
- • Design
- Large heat dissipation area ensures product stability and longevity
5. CERTIFICATIONS & ENERGY EFFICIENCY
- • Certifications
- CE, RoHS
- • Power Consumption
- 150W street light equivalent to 300W HPSL
