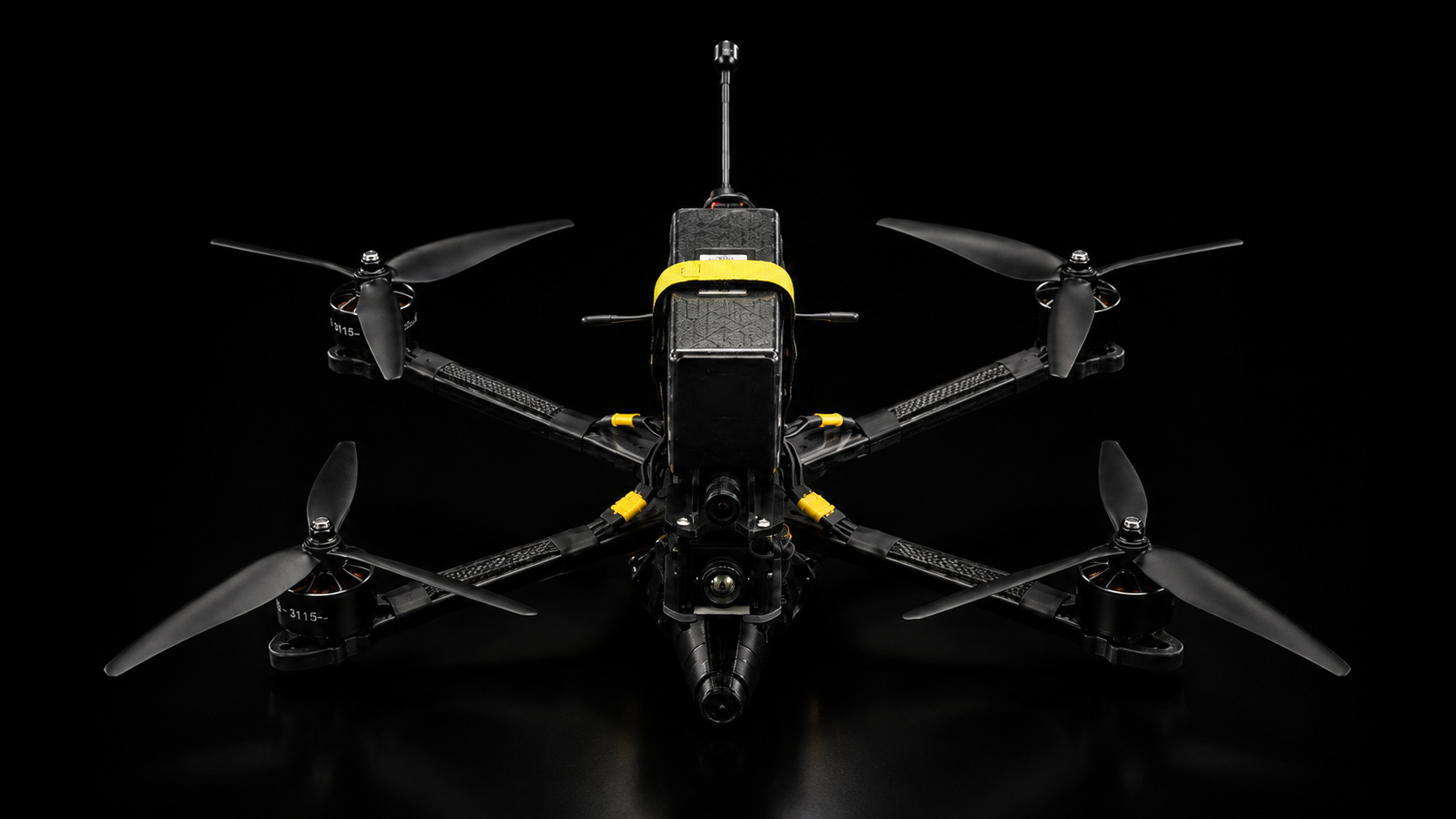

ARGUS AISR-2

AI AUTONOMOUS ISR DRONE

TIER 3

An advanced surveillance platform integrating AI-assisted vision, automated target detection, multi-sensor monitoring, and persistent reconnaissance capabilities. Argus enhances command-level situational awareness by supporting automated perimeter surveillance and intelligent reconnaissance while maintaining human decision authority in operational employment.

03 / KEY FEATURES

TACTICAL FLIGHT FEATURES

Argus combines low-signature propulsion, extended-range communications, thermal imaging integration, and a rigid tactical airframe to support persistent autonomous reconnaissance and intelligent surveillance missions.

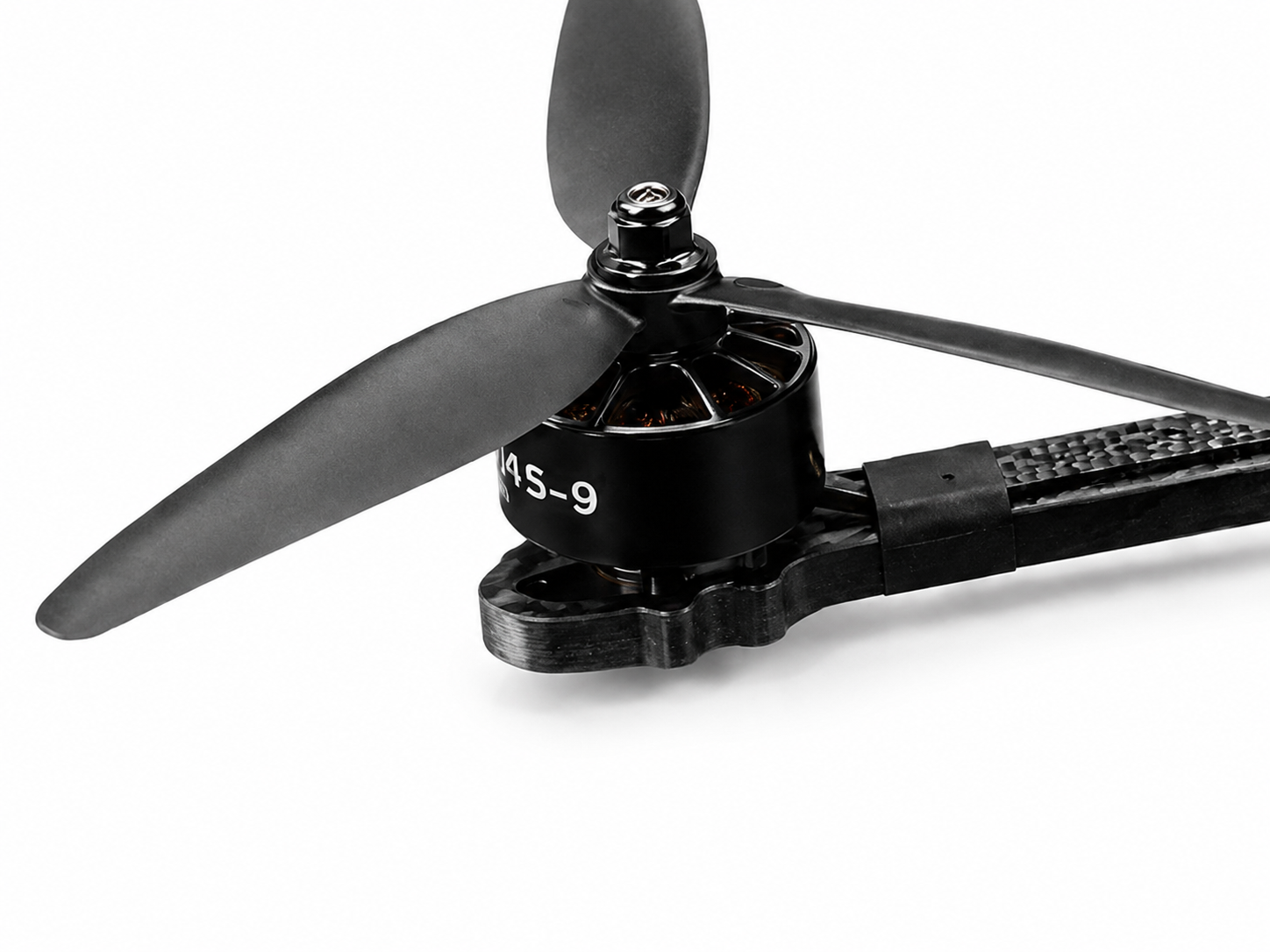

LOW-NOISE PROPELLERS

The 1050 3-blade design is engineered to provide efficient thrust, stable flight performance, and reduced acoustic signature, enabling discreet surveillance operations.

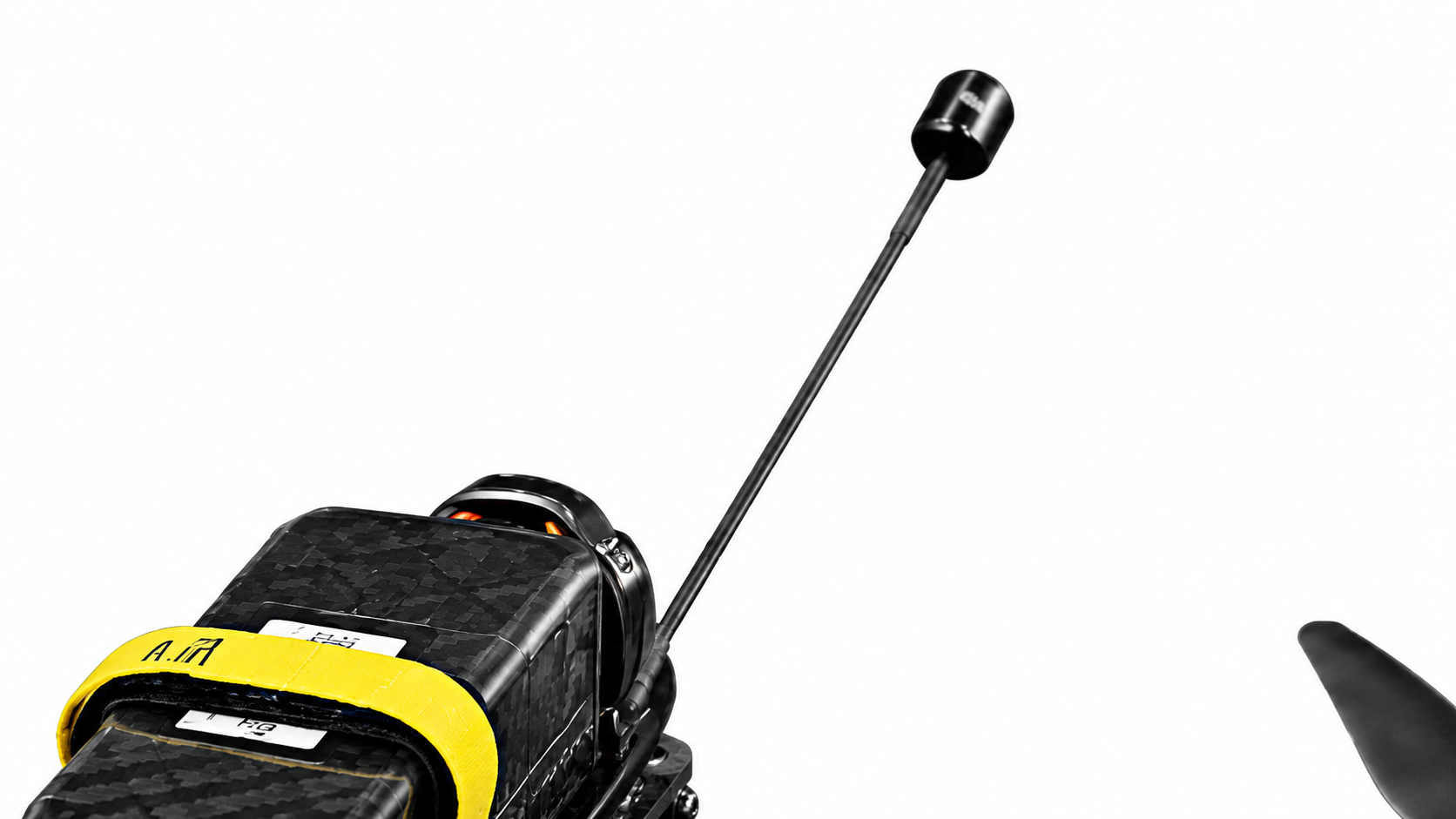

EXTENDED RANGE ANTENNA

The 5.8G SMA L150mm antenna provides stable signal transmission for long-distance control and real-time video telemetry during reconnaissance operations.

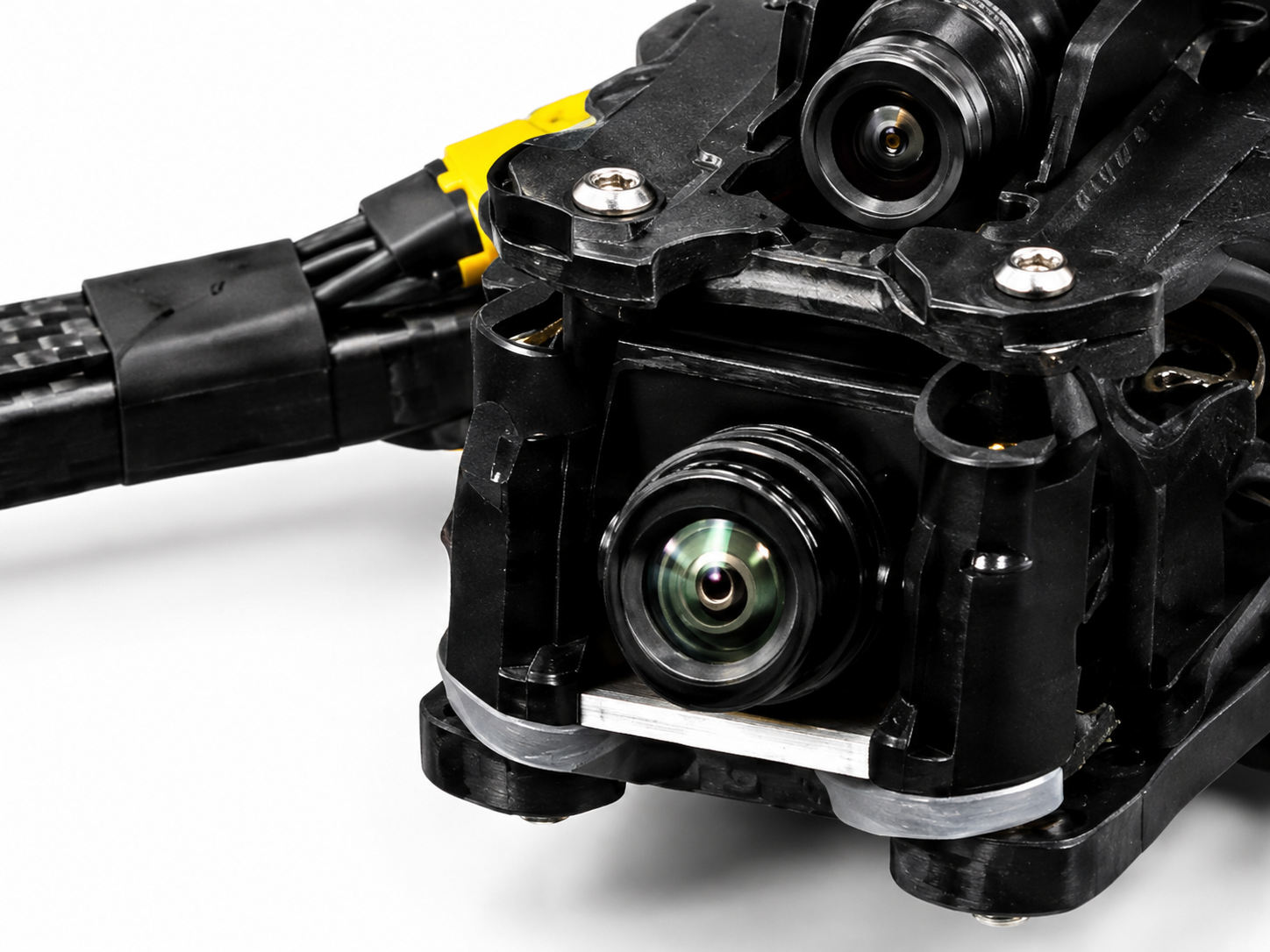

FPV THERMAL CAMERA MOUNT

Front-mounted IRC-640CA module enabling real-time aerial observation and situational awareness for tactical monitoring.

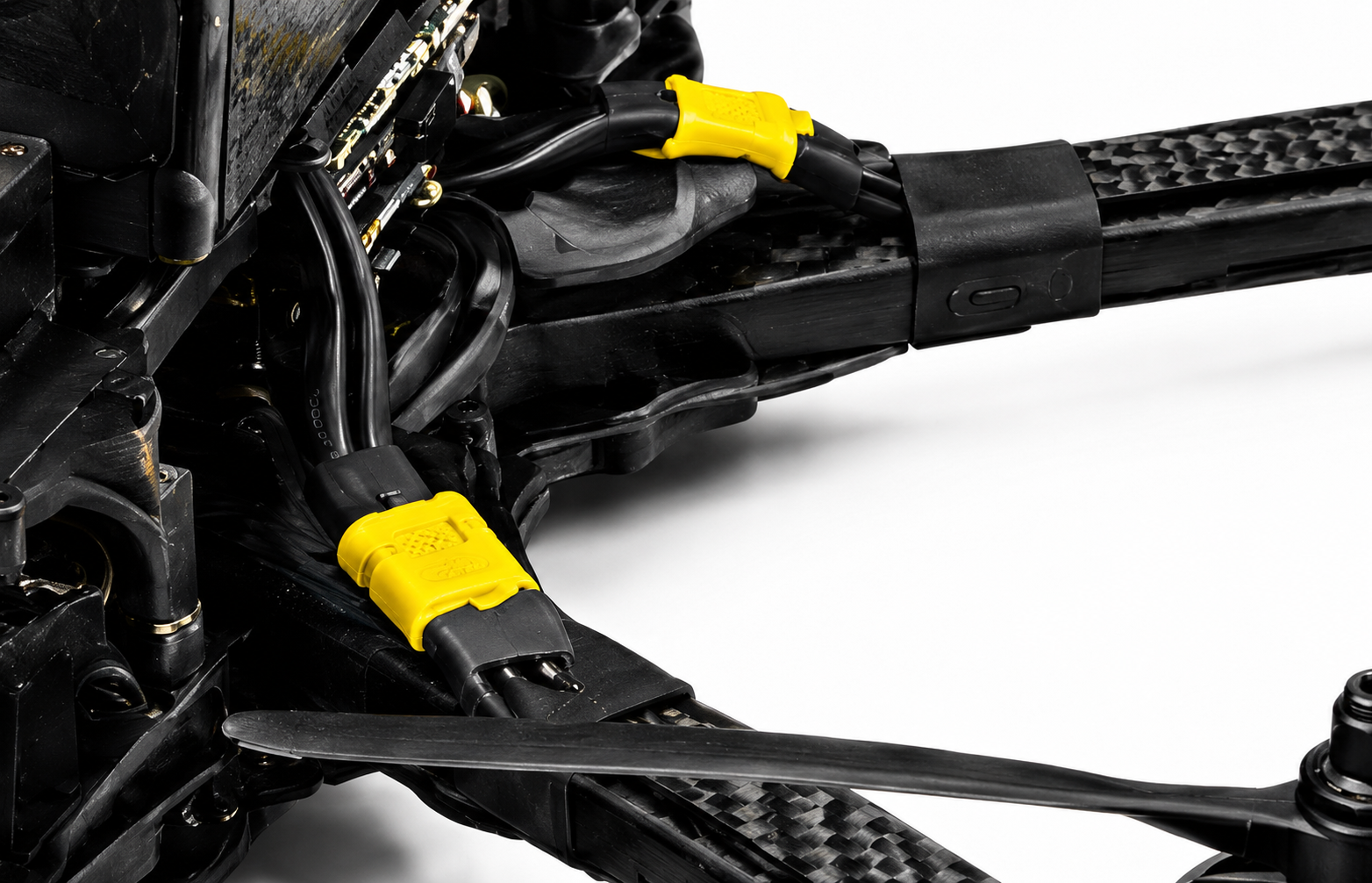

HEAVY-DUTY FRAME STRUCTURE

Lightweight yet rigid structure designed for high durability, vibration resistance, and stable flight performance in demanding operational environments.

04 / SYSTEM COMPONENTS

SUBSYSTEM COMPONENTS & SPECIFICATIONS

Operator control, first-person-view, charging, and AI-assisted vision subsystems supporting the Argus AISR-2 reconnaissance platform.

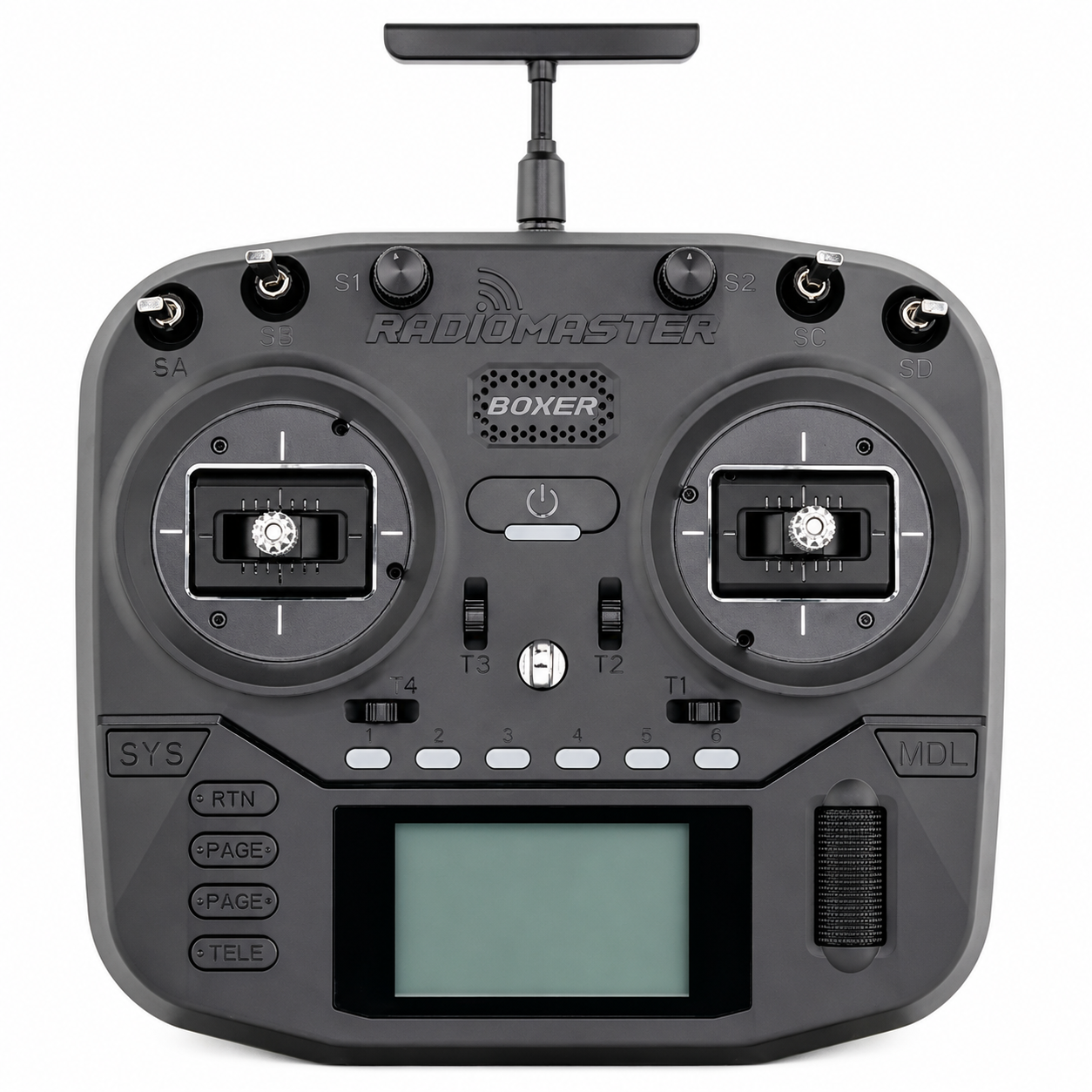

REMOTE CONTROL

SIZE: 235*178*77mm
WEIGHT: 532.5g
RF / FREQUENCY: 2.400GHz-2.480GHz (CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz)
VOLTAGE RANGE: 6.6-8.4V DC
FIRMWARE: EdgeTX Transmitter / Multi-Module (RF module) / ELRS
CHANNELS: Max 16 channels (Receiver dependent)
DISPLAY: 128*64 Monochrome LCD display
GIMBAL: High precision 4.0 Hall gimbals as standard (AG01 Optional)

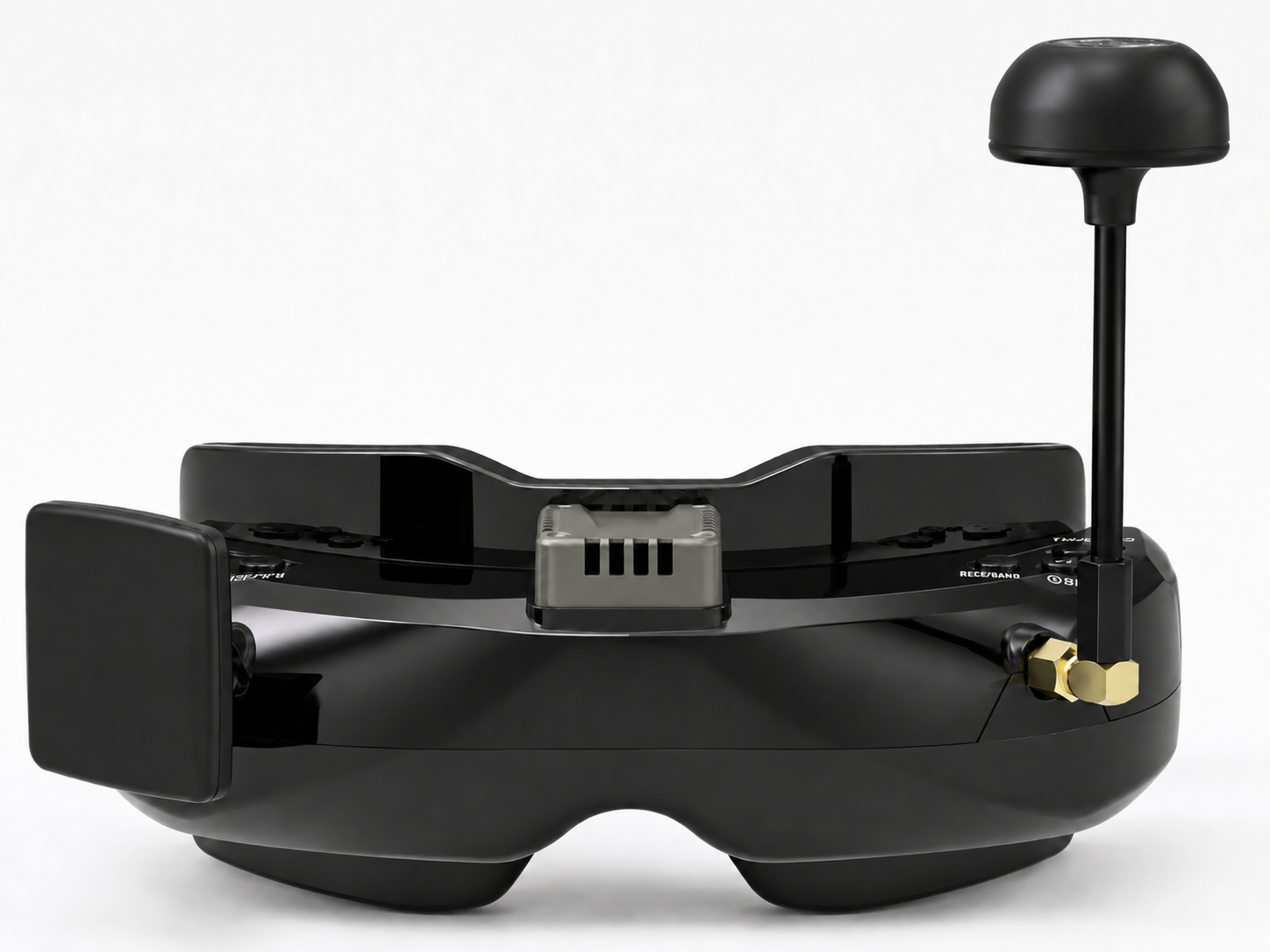

FPV GOGGLES

MEMORY: SD Card supports up to 64GB (MJPEG, 30fps, AVI)
RECEIVER: 5.8G 48CH steady view receiver
SCREEN: 16:9 and 4:3 switchable
DISPLAY: 640X400 OLED resolution display
FOV: Up to 29°
CONNECTION: HDMI in
WIDE VOLTAGE SUPPORT: 2S-6S
CHANNELS: 48
ANTENNA: Patch and Omni antenna (RHCP)

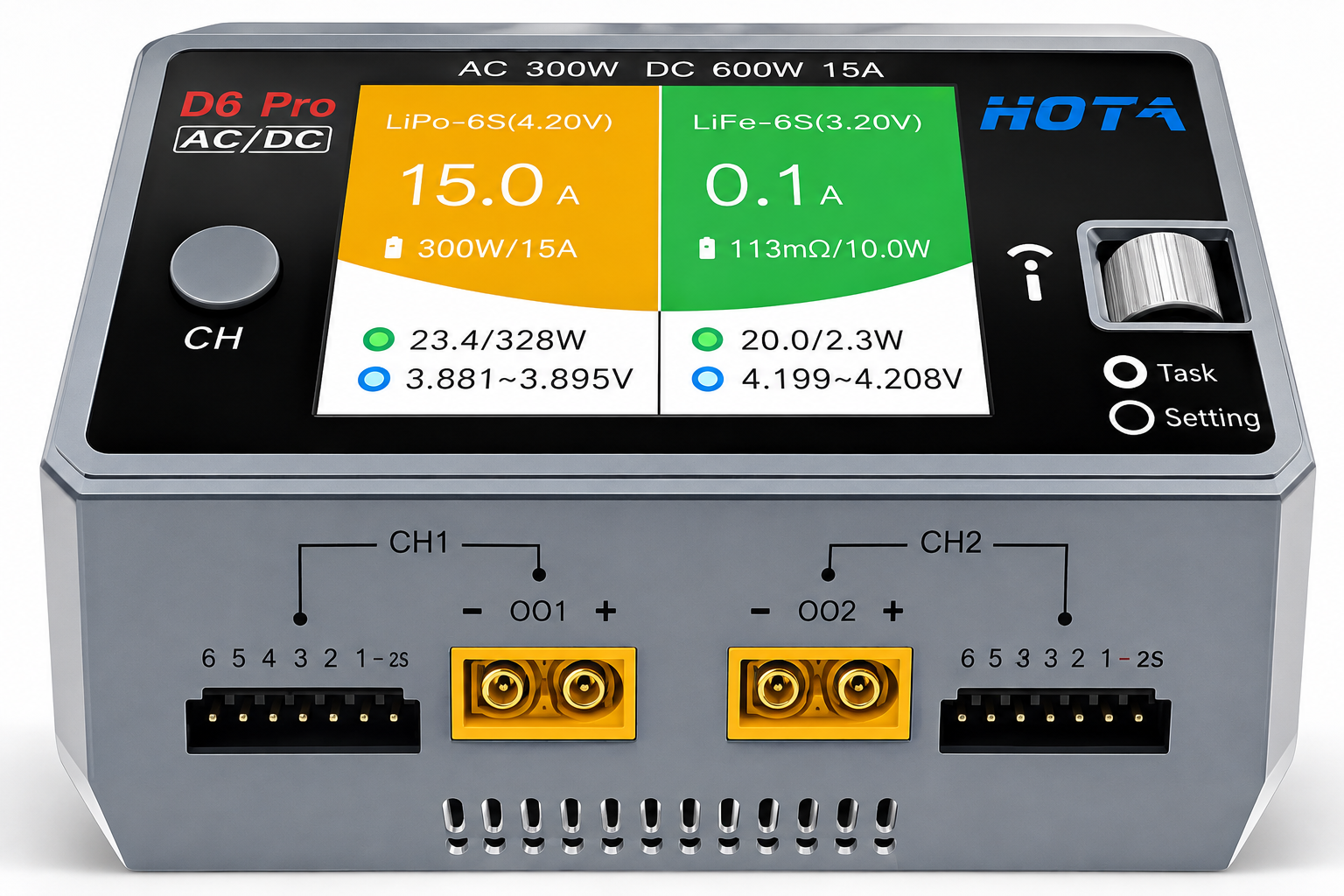

CHARGER

HOTA D6 Pro 600W 1-6S 2CH

DISPLAY SCREEN: 2.8" 320*240
INPUT VOLTAGE: AC100~240V/DC 6.5~30V
BATTERY TYPE: LiPo/LiIon/LiFe/LiHV 1-6S, NiMH/NiCd 1-16S
BALANCING CURRENT: 1600mA*2 @ 4.2V
CHARGING POWER: DC 325W*2
DISCHARGING POWER: 325W*2
USB: 5W 2A

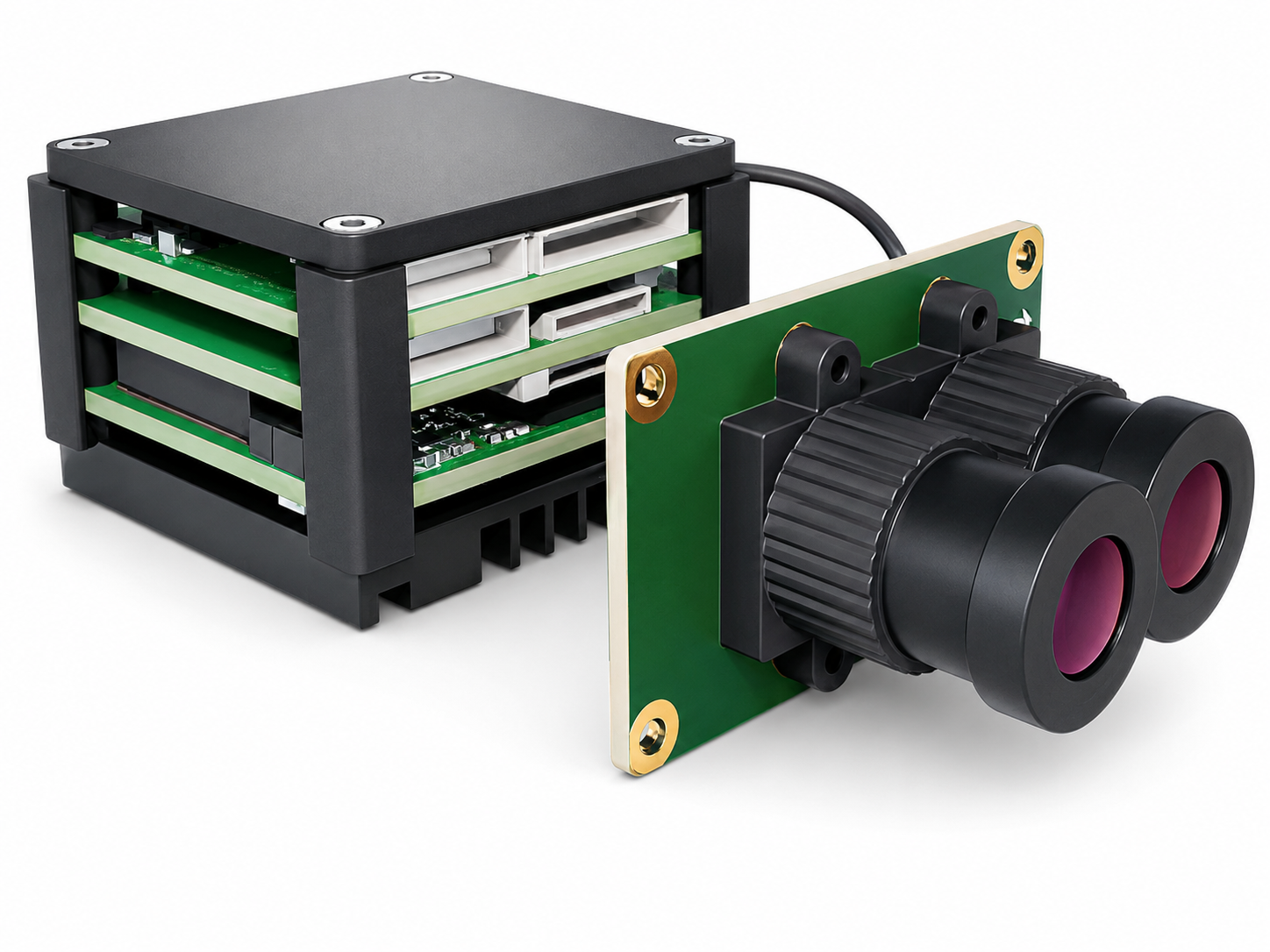

AI MODULE

ULTRA DUAL VISIBLE LIGHT

MODEL: Ultra Dual Visible Light
DETECTABLE TARGET TYPES: Default: People and Cars
TARGET RECOGNITION DISTANCE: Vehicle:1200m, Human:500m
MINIMUM TARGET TRACKING PIXEL: 16*16 pixels
MAX TRACKING SPEED OF DYNAMIC TARGET: 60km/h
INTELLIGENT ADSORPTION TRACKING: Supports crosshair fuzzy locking for short-distance crosshair adsorption
TRAJECTORY PREDICTION AND MEMORY TRACKING: Supports dual-mechanism tracking of trajectory prediction and feature memory
NUMBER OF IDENTIFIABLE TARGETS: 50 targets
PICTURE-IN-PICTURE: Supported
CONTROL PROTOCOL: CRSF
SUPPORTED FIRMWARE: BetaFlight/APM

05 / TECHNICAL DOCUMENTATION

GENERAL TECHNICAL SPECIFICATIONS

Core platform specifications for the DLS-2 ARGUS configuration, including flight performance, payload, propulsion, control, communications, and structural parameters.

DLS-2 ARGUS	TECHNICAL SPECIFICATIONS
MAX SPEED	160 km/h
PAYLOAD	1.5-2 kg
IMAGE TRANSMISSION	5.8G 48CH 3W, Max 15km Flight Range
MAXIMUM ALTITUDE	5km
PRODUCT SIZE	34429460 mm
FRAME WHEELBASE	396 mm
ARM THICKNESS	7 mm
MOTOR	4*3115 900kv 6S
FLIGHT CONTROLLER	F4 F405, Supported Firmware: BF/INAV
ESC	E60ID 60A 8Bit 2-6S
CAMERA	1800TVL 5-40V (optional)
ANTENNA	5.8G Right-hand Circular Polarization SMA Male Pin, Length 150mm
RECEIVER	ELRS915M
PROPELLER	1050 3-blade (4 pcs)
NET PRODUCT WEIGHT	1185 g
