TACTICAL SOLAR
POWER SYSTEM
TSPS-T2-01
TIER 2
The TSPS T2-01 Tactical Solar Power System is a mission-ready tactical solar power system designed to deliver reliable and sustainable energy in remote, off-grid, and emergency environments. Engineered for rapid deployment, it provides stable power support for field operations, critical equipment, and temporary installations. Its modular configuration and rugged construction ensure dependable performance in demanding conditions, enabling continuous operations where conventional power sources are unavailable.
03 / OPERATIONAL CHALLENGE
FUEL DEPENDENCY CREATES OPERATIONAL RISK
Across multiple regions, fuel supply chains are becoming increasingly unstable. Conflicts, trade disruptions, and shifting global demand have made oil more difficult to secure, transport, and sustain.
For military and government operations, this creates a critical vulnerability:
- Fuel costs are rising
- Delivery timelines are unpredictable
- Remote and island locations are harder to sustain
- Every liter of fuel requires protection, transport, and risk
04 / ENERGY INDEPENDENCE
MODERN OPERATIONS REQUIRE A DIFFERENT MODEL
Not energy that is delivered, but energy that is already there.
Systems must:
- Operate independently of fuel logistics
- Deploy rapidly in any location
- Sustain operations without constant resupply
05 / SYSTEM CONFIGURATIONS
TACTICAL SOLAR POWER MODELS
Three scalable configurations provide tactical solar power for lightweight, medium-capacity, and high-capacity field applications.

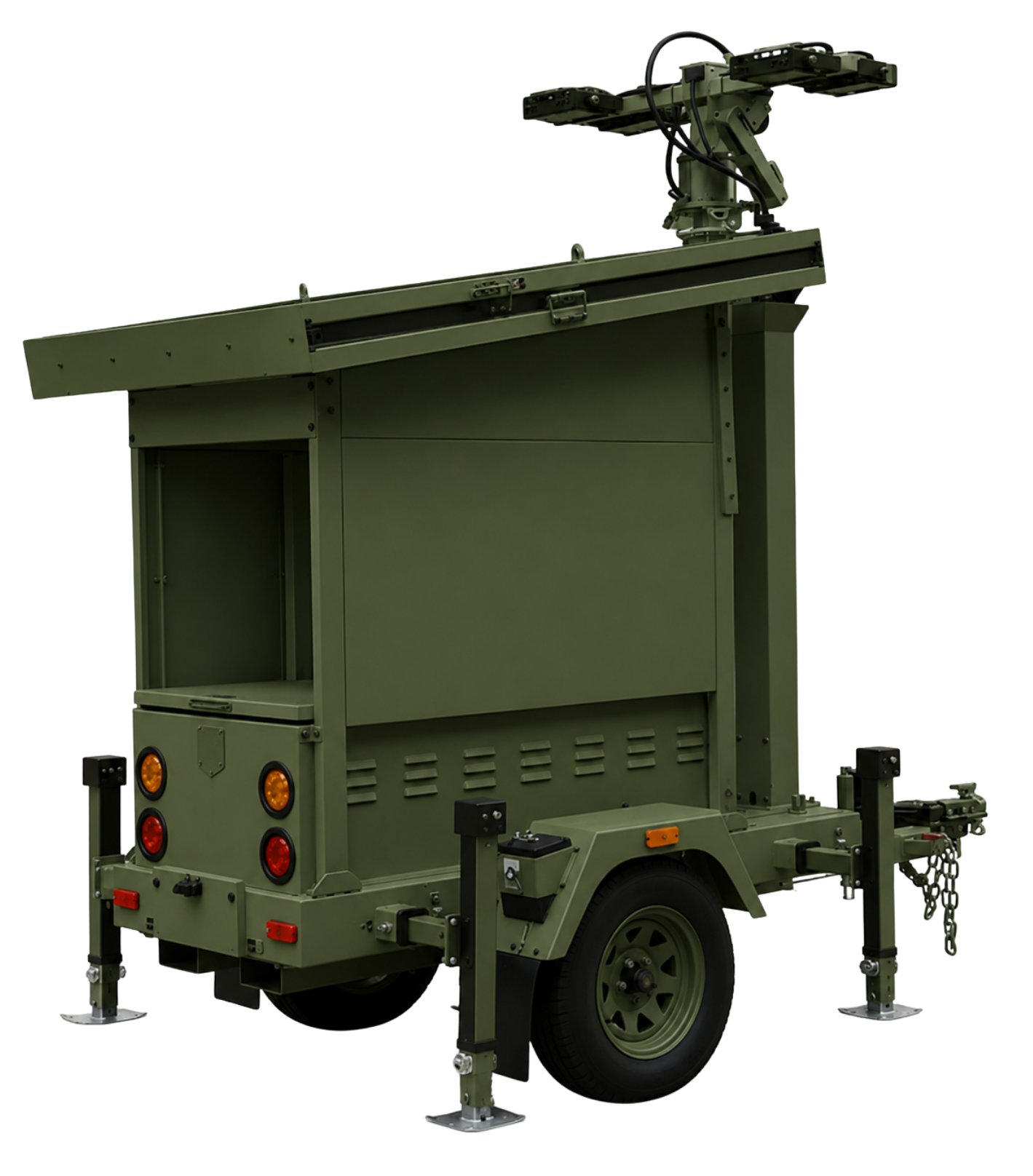

TSPS-T2-2.0-01
- SOLAR PANEL
- 2 × 490W
- LFP BATTERY & CAPACITY
- 1 × 314Ah, DC25.6V, 8040Wh
- SOCKET
- AC220V
- SYSTEM VOLTAGE
- DC24V
- WEIGHT
- 750 kg

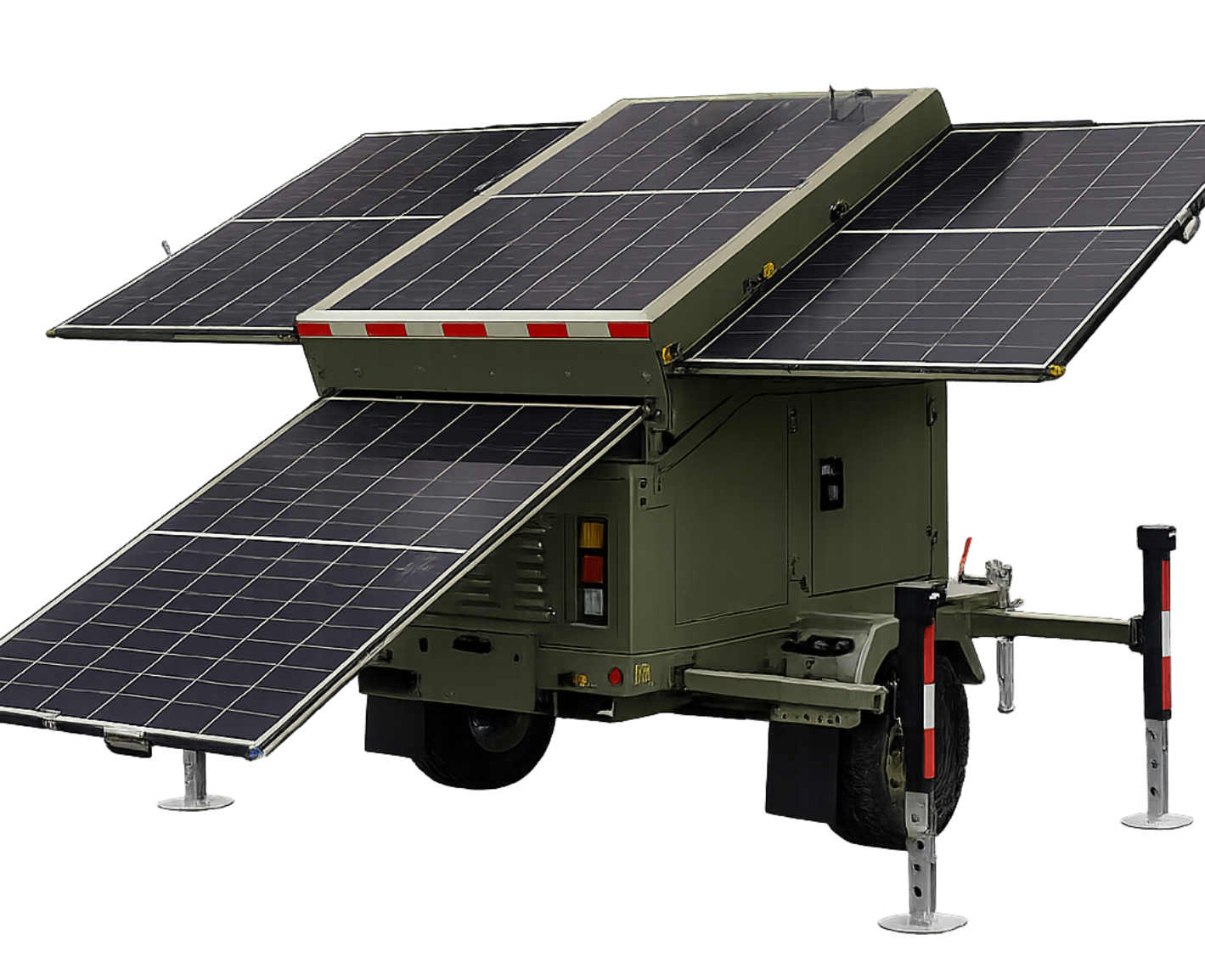

TSPS-T2-6.5-01
- SOLAR PANEL
- 4 × 490W
- LFP BATTERY & CAPACITY
- 1 × 300Ah, DC51.2V, 15360Wh
- SOCKET
- 1 × 32A + 2 × 16A, AC220V
- SYSTEM VOLTAGE
- DC48V
- WEIGHT
- 1250 kg

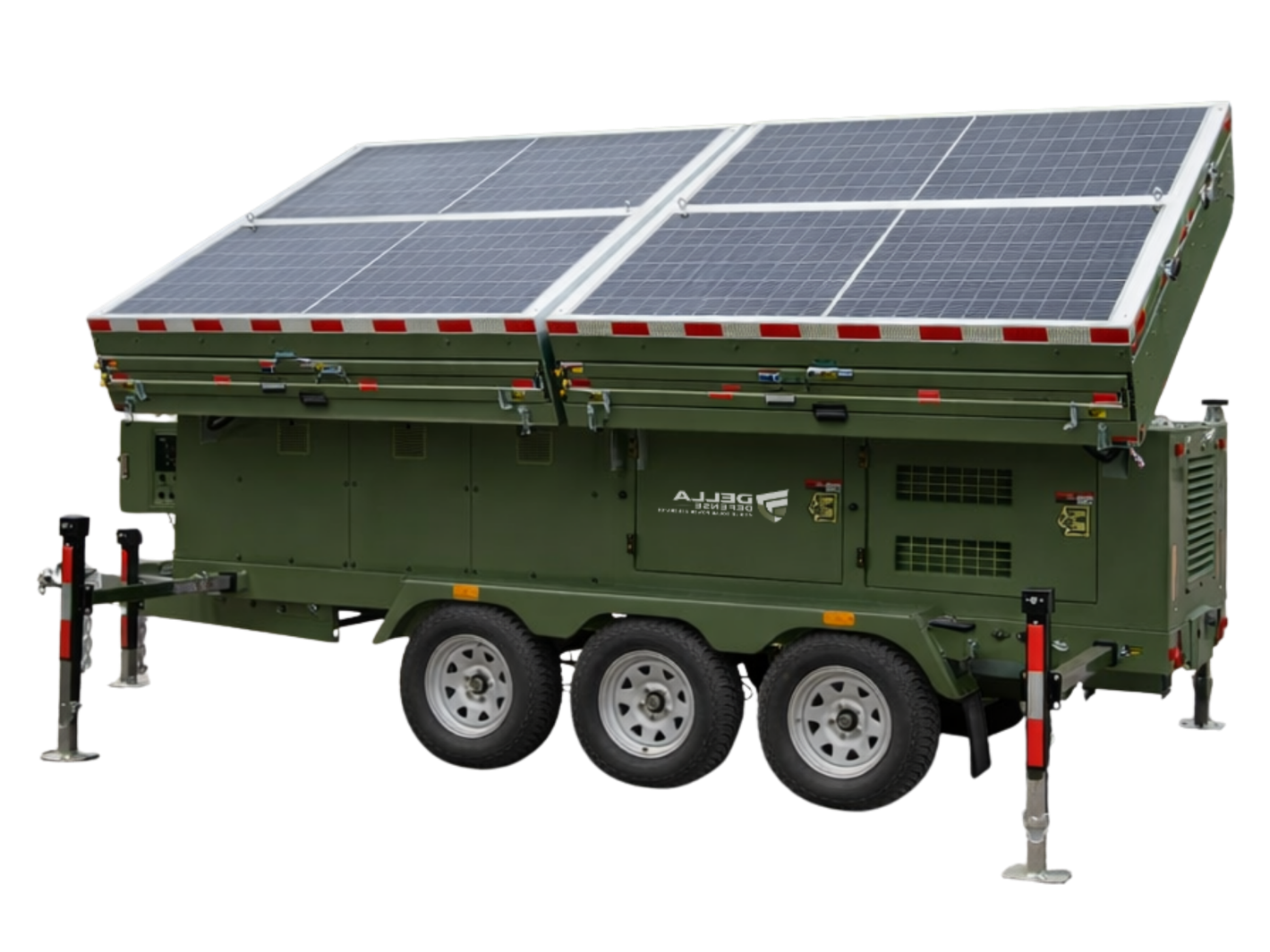

TSPS-T2-30-01
- SOLAR PANEL
- 16 × 470W
- LFP BATTERY & CAPACITY
- 4 × 314Ah, DC51.2V, 64.3 kWh
- SOCKET
- 3Ph AC400V / 1Ph AC220V
- SYSTEM VOLTAGE
- DC48V
- WEIGHT
- 3200
06 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Comparative electrical, battery, trailer, deployment, charging, dimensional, and weight specifications across all three TSPS models.
| SPECIFICATION | TSPS-T2-30-01 | TSPS-T2-6.5-01 | TSPS-T2-2.0-01 |
|---|---|---|---|
| Solar Panel | 16 × 470W | 4 × 490W | 2 × 490W |
| Inverter | 2 × 15 kVA | 6kW / 6kVA | 2kW / 2kVA |
| LFP Battery & Capacity | 4 × 314Ah, DC51.2V, 64.3 kWh | 1 × 300Ah, DC51.2V, 15360Wh | 1 × 314Ah, DC25.6V, 8040Wh |
| Socket |
3Ph AC400V Output Socket: 1 × 63A + 1 × 32A 1Ph AC220V Output Socket: 3 × 16A |
1 × 32A + 2 × 16A, AC220V | AC220V |
| Panel Lifting | Manual Lifting | Manual Lifting | Manual Lifting |
| System Voltage | DC48V | DC48V | DC24V |
| Controller | 40A MPPT | 40A MPPT | 40A MPPT |
| Trailer Standard | US / AU / EU | US | US |
| Hitch | 70mm / 3" Ring Type | 2" Ball / 3" Ring | 2" Ball / 3" Ring |
| Brake | Electric | Electric | Electric |
| Axle | Triple, Suspension | Single | Single |
| Tire | 15 inch | 14 inch | 14 inch |
| Outriggers | 5 | 4 | 4 |
| Forklift Holes | 2 | 2 | 2 |
| Charging Time | 7.5 hours by Peak Sun | ||
| Dimension (Shipping) | 4500 × 2298 × 2156mm | 2200 × 1700 × 2400mm | 2150 × 1500 × 2300 mm |
| Weight | 3200 | 1250 kg | 750 kg |
07 / ENGINEERING REFERENCE
DIMENSIONAL DRAWING
Engineering-view references for the high-capacity TSPS-T2-30-01 and the TSPS-T2-6.5-01 / TSPS-T2-2.0-01 configurations.

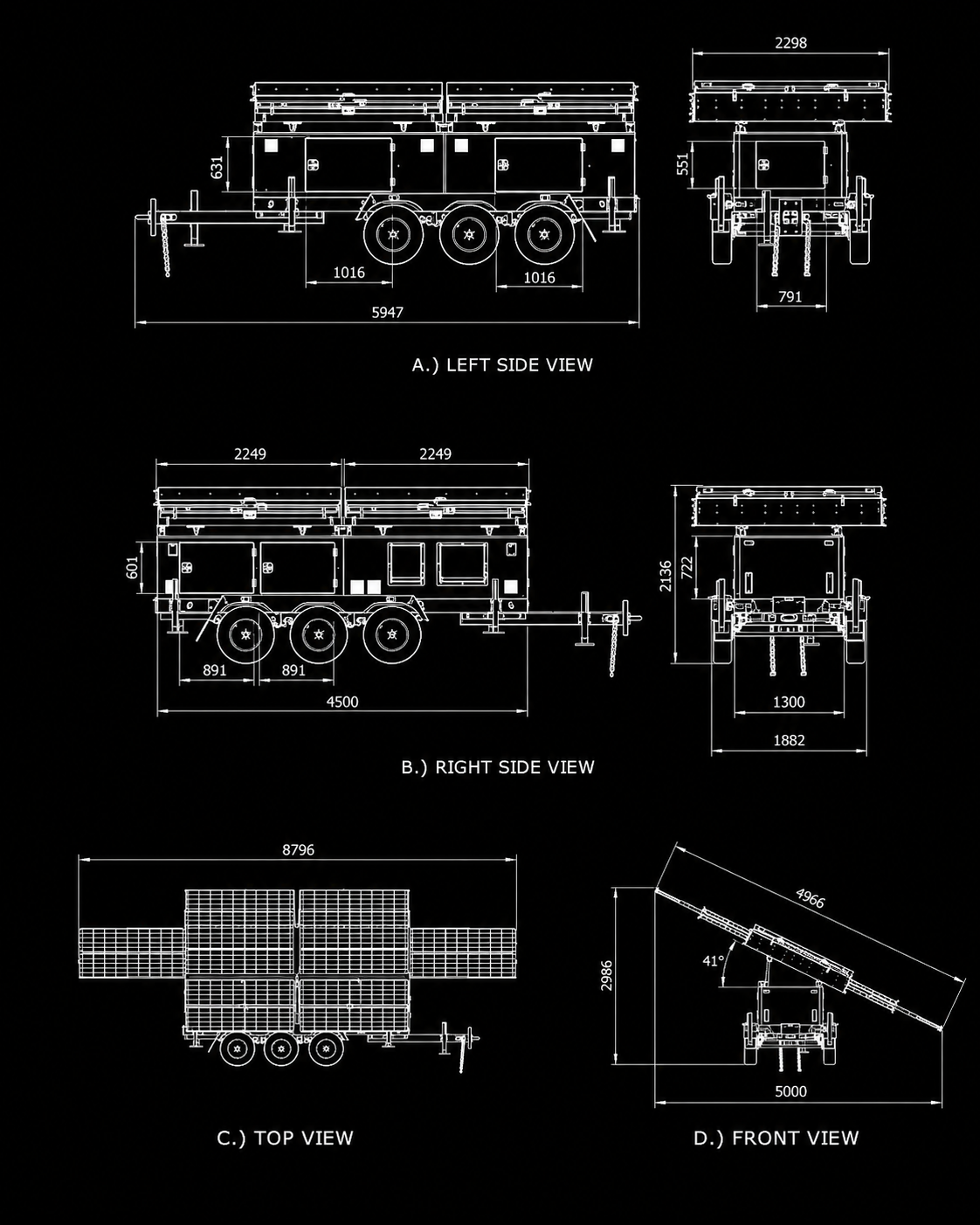

TSPS-T2-30-01

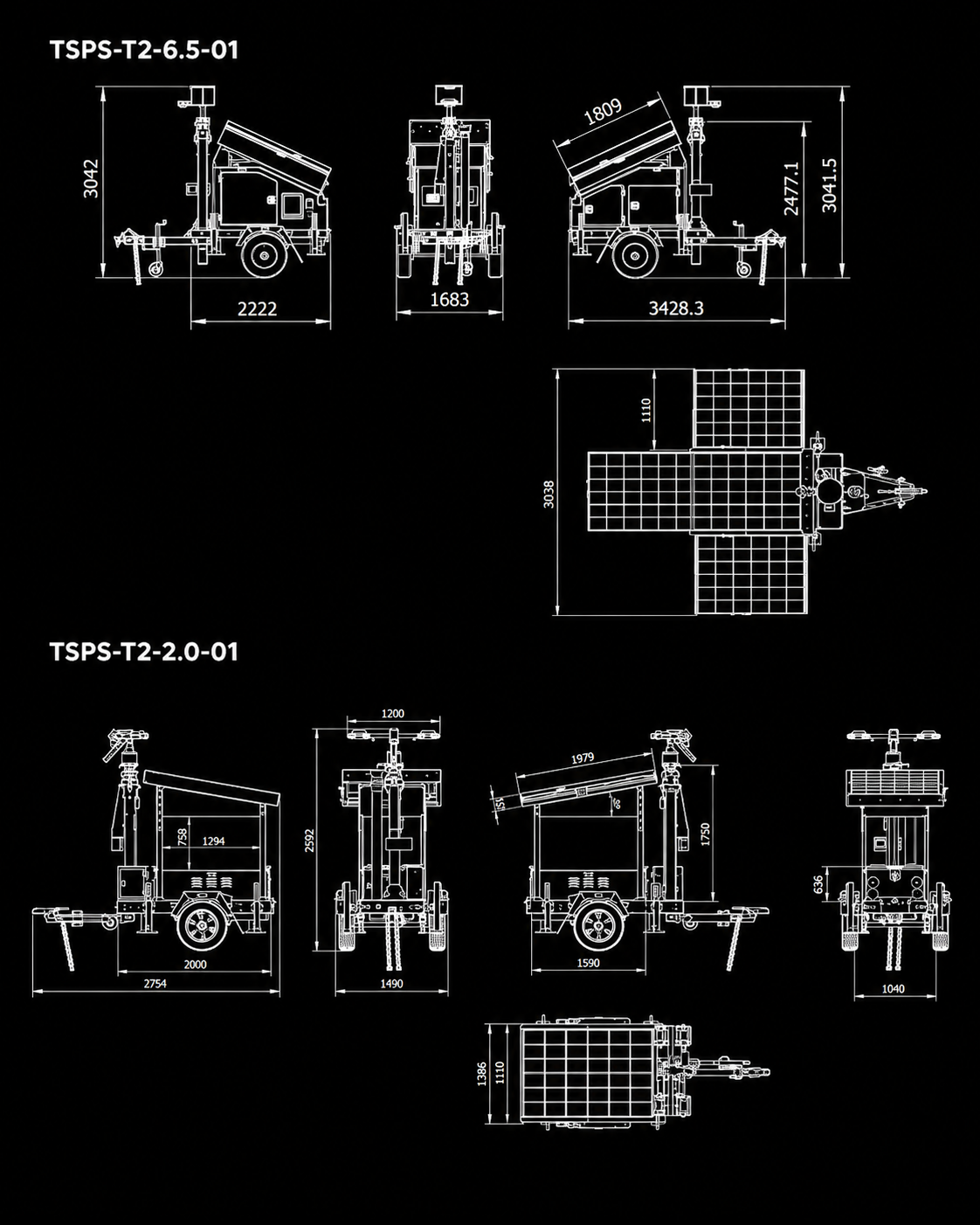

TSPS-T2-6.5-01 / TSPS-T2-2.0-01
