RAPID DEPLOYMENT
SHELTER SYSTEM
RDSS-T1-36-01
TIER 1
Engineered for rapid deployment and sustained field operations, the system is constructed using High Impermeability Technology Material (HITM) to deliver superior durability and reliable environmental protection. The configuration includes a portable diesel generator and a portable industrial air-conditioning unit, ensuring continuous operational support in demanding environments.
03 / MATERIAL SYSTEM
Layered protection for sustained field use.
The shelter combines specialized surface treatments, coated structural fabric, and external canopy materials to resist water, chemicals, abrasion, and repeated deployment.
COATING
White smooth-silk coating creates a clean, durable, and easy-maintenance external finish.
NANO SPRAYING
Nano-sprayed surface protection improves resistance against water exposure and acidic contaminants.
AIR COLUMN BASE
0.7 mm gray PVC double-sided coated fabric forms the primary inflatable structural system.
EXTERNAL CANOPY
Composite fabric construction provides additional environmental shielding around operational openings.
04 / OPERATIONAL CAPABILITY
MISSION-READY.
ALL TERRAIN.
ALL WEATHER.
RAPID DEPLOYMENT
SYSTEM
HITM WATERPROOF
CONSTRUCTION
AIR-BEAM STRUCTURAL
FRAMEWORK
MULTI-MISSION
APPLICATION
ALL-WEATHER
PERFORMANCE
05 / SYSTEM DETAILS
Integrated shelter components.
Compact feature views identify the principal structural, ventilation, access, and identification systems used throughout the RDSS configuration.

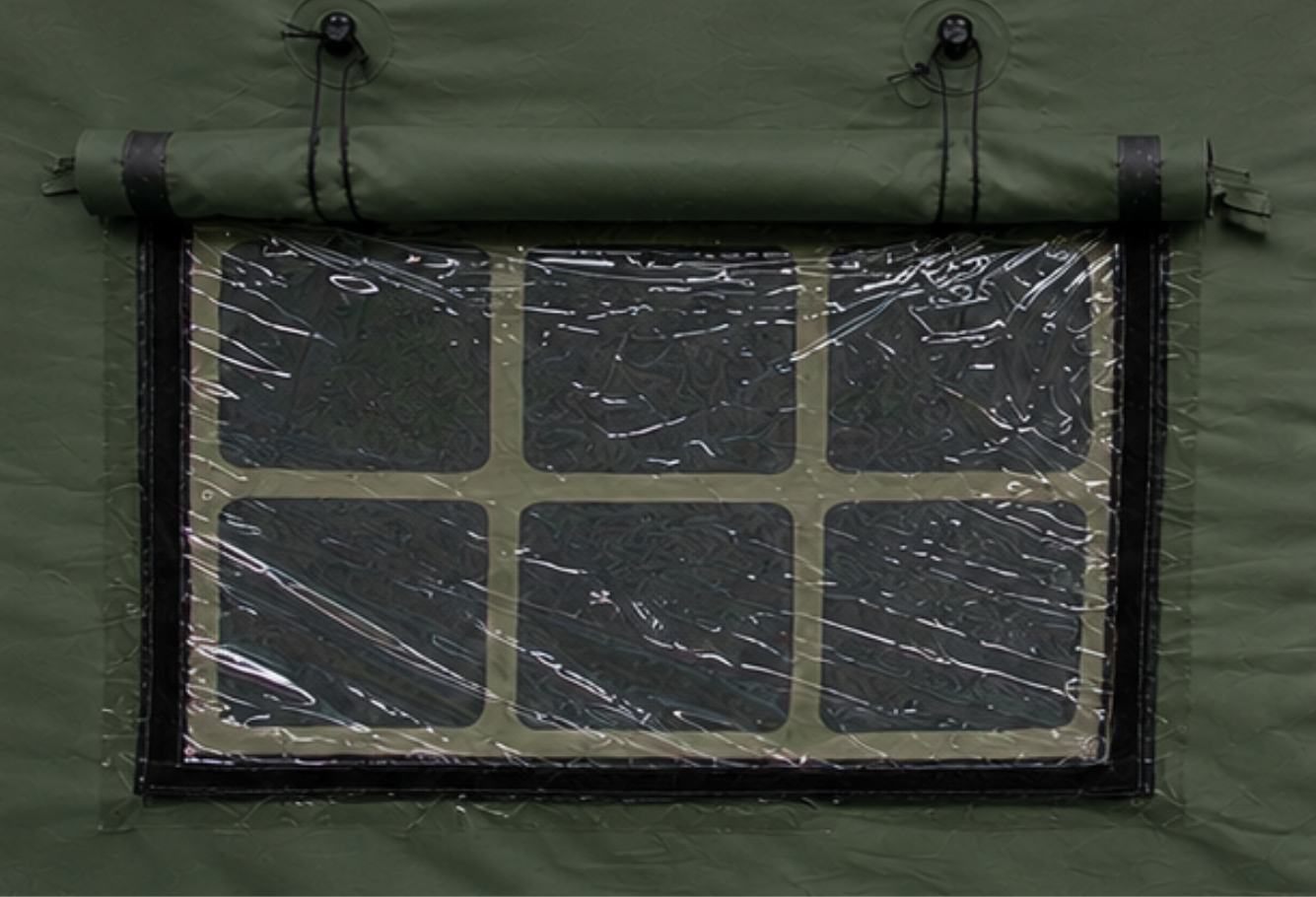

THREE-LAYER MULTIFUNCTIONAL WINDOW
Layered window construction combines visibility, weather protection, ventilation control, and insect screening.

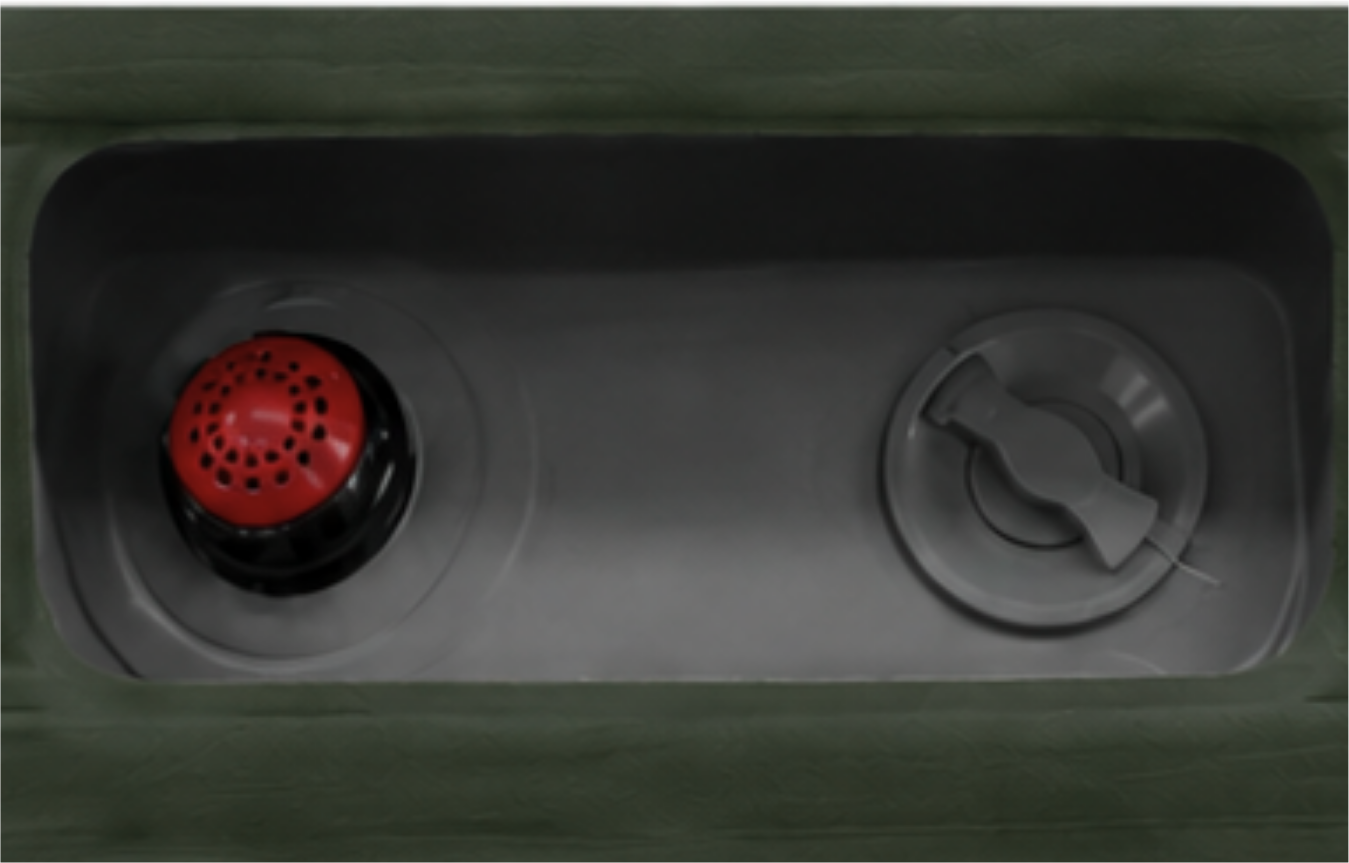

FILLING AND EXHAUST VALVE GROUP
Integrated inflation and exhaust valves support rapid setup, controlled pressure management, and efficient pack-down.

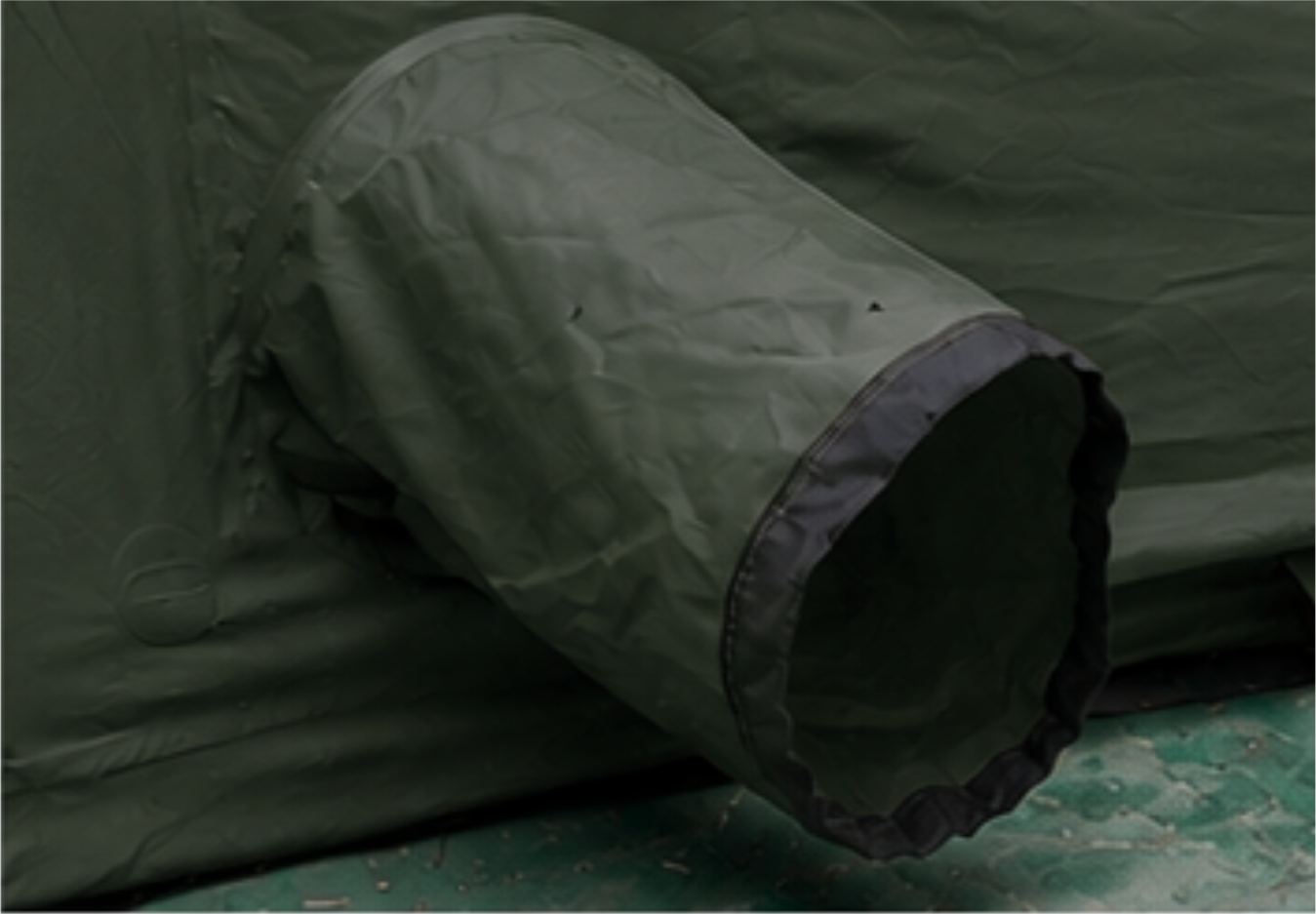

COLD AND WARM AIR OUTLET
Dedicated environmental-control interfaces support conditioned-air delivery for heating and cooling operations.

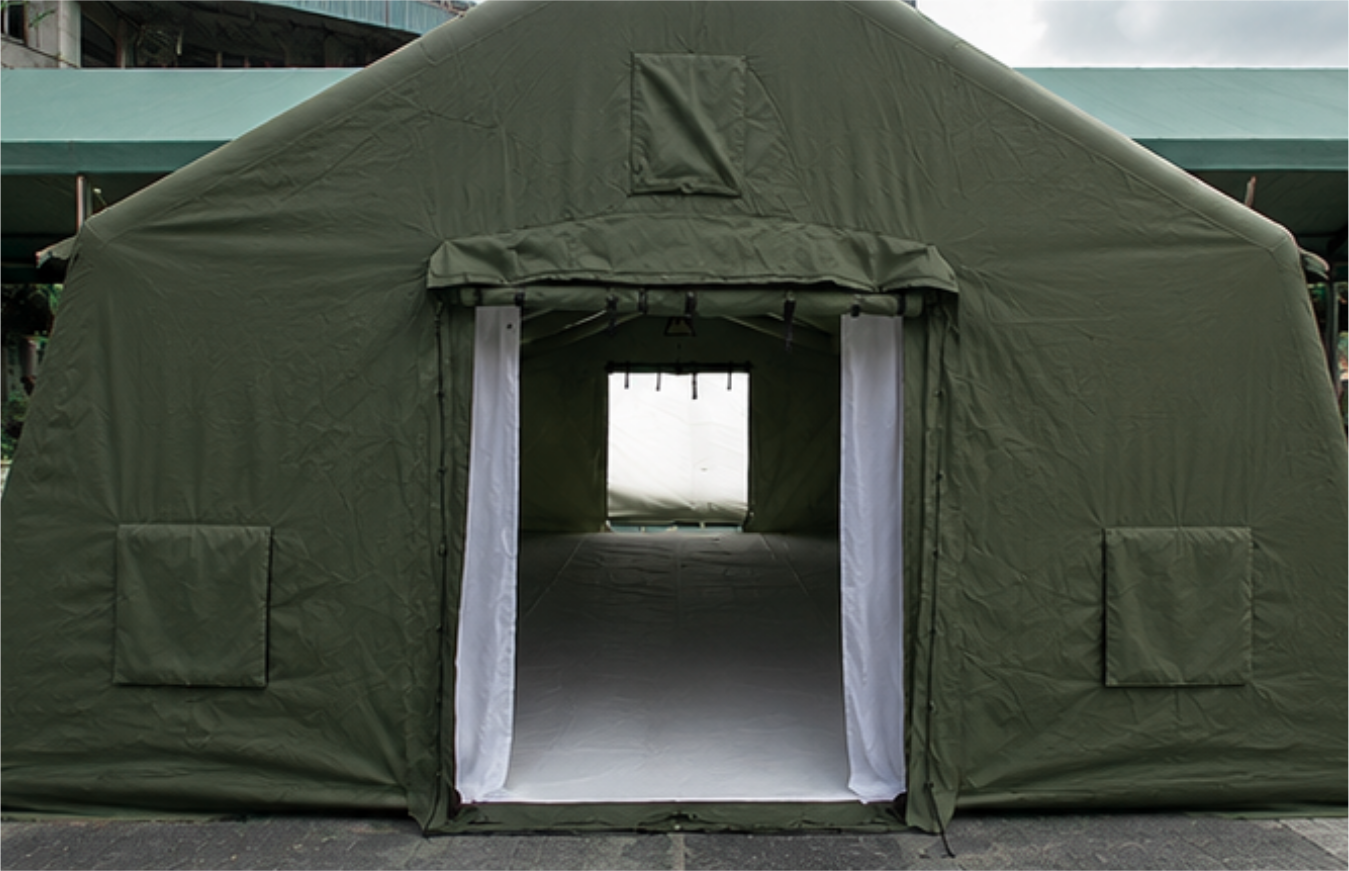

DOOR LINK COMPONENTS
Reinforced connection hardware maintains doorway alignment, secure closure, and repeated operational reliability.

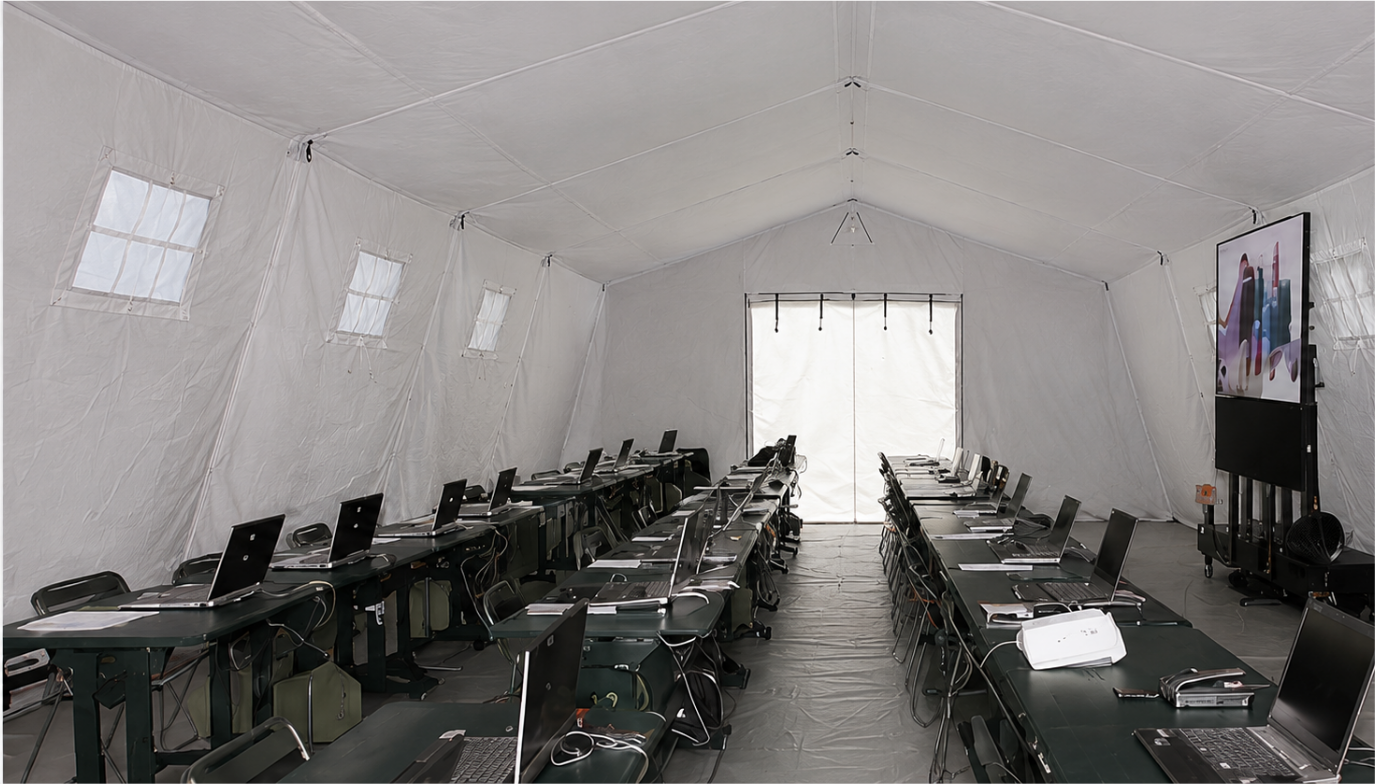

DISPLAY OF THE USE SCENE INSIDE THE TENT
The unobstructed interior supports configurable layouts for command, medical, accommodation, logistics, and support missions.

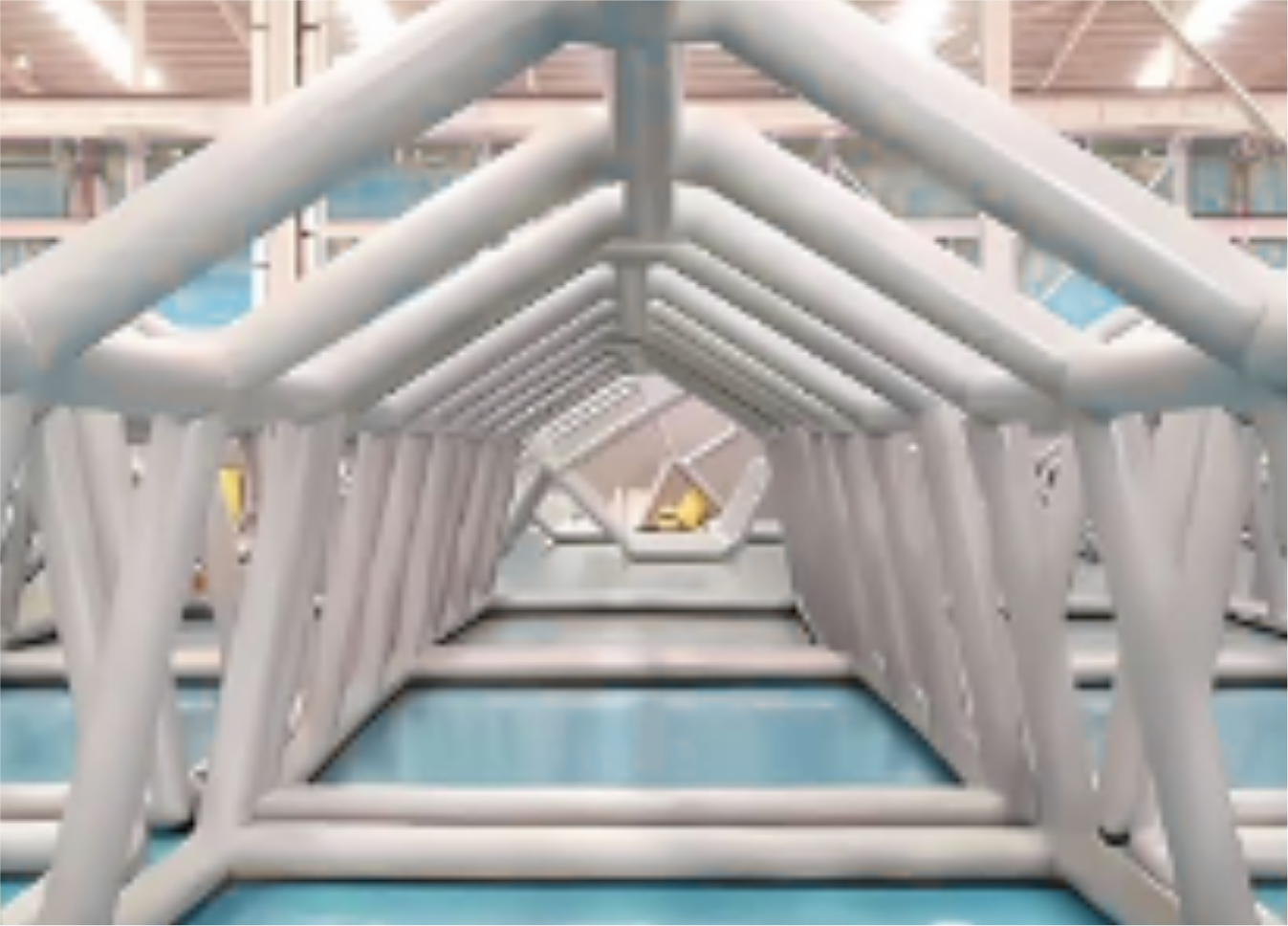

TENT AIR COLUMN STRUCTURE
Inflatable air-beam architecture creates a stable structural frame without conventional rigid poles.

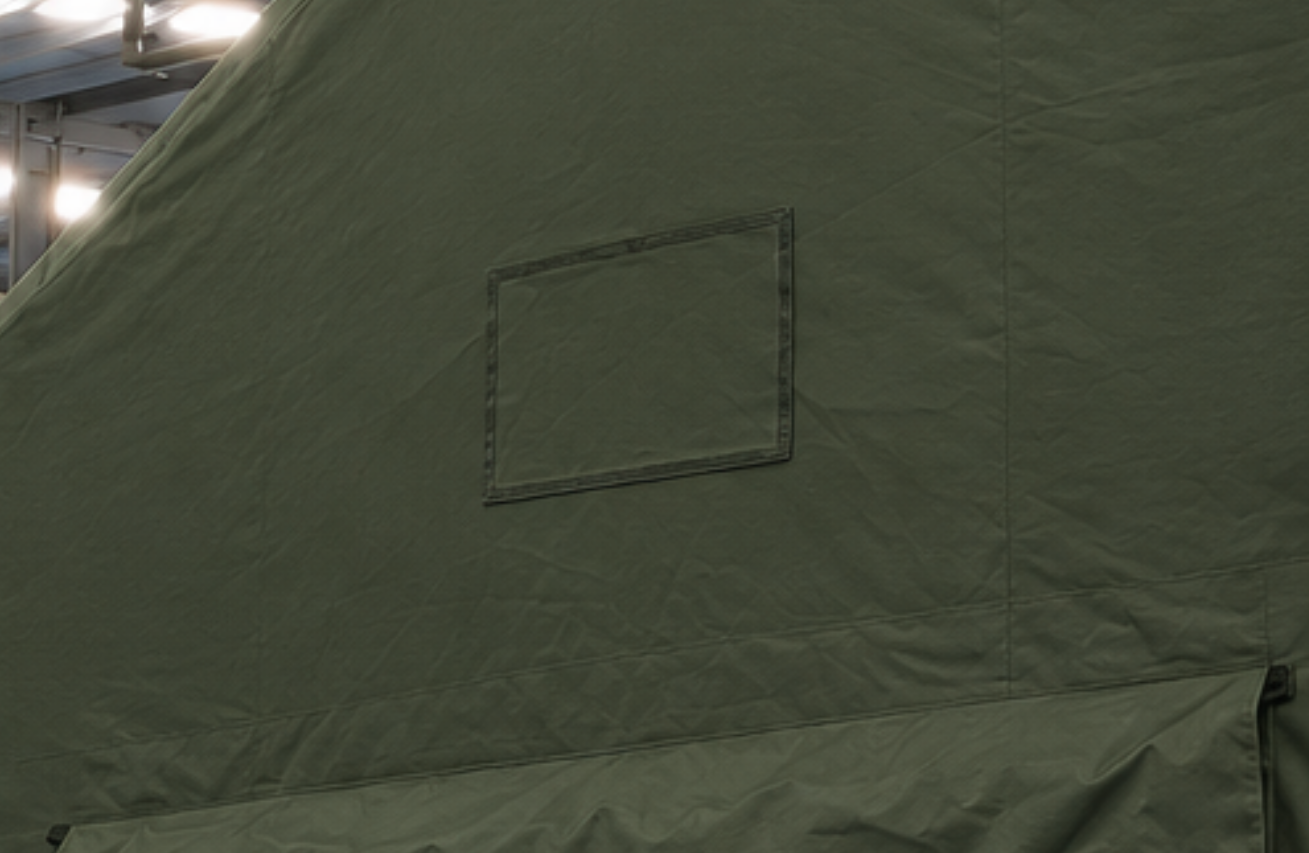

REMOVABLE TRANSPARENT LOGO POCKET ON DOOR
A clear removable identification pocket allows rapid unit labeling, branding, or mission-role designation.

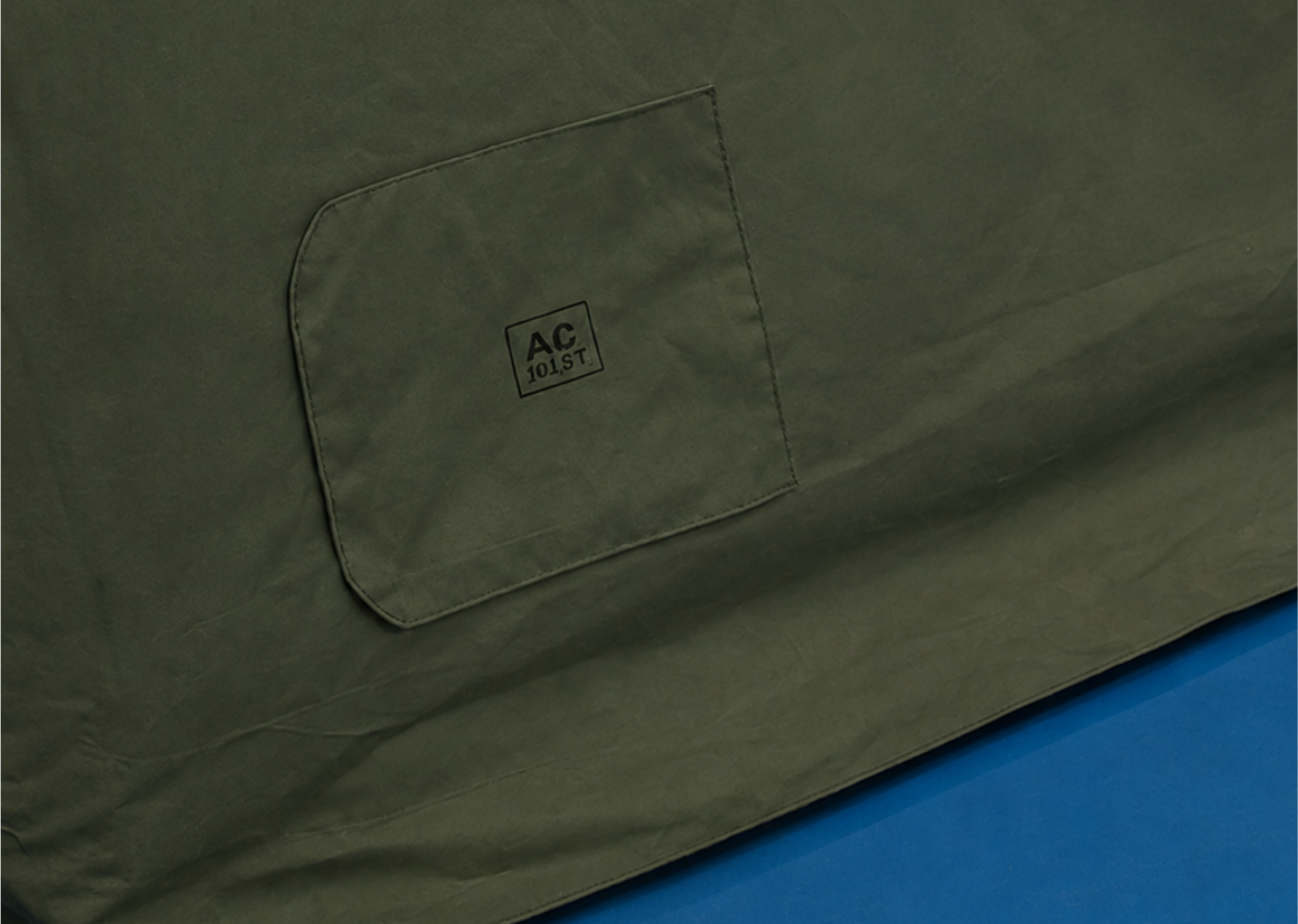

BOTTOM SANDBAG PIECE
Integrated lower-edge ballast points improve anchoring and stability in exposed field environments.
06 / TECHNICAL DOCUMENTATION
General Technical Specifications
Dimensional, material, pressure, environmental, accessory, and ventilation requirements for the 36 m² rapid-deployment shelter.
RDSS TECHNICAL
SPECIFICATIONS
RDSS-T1-36-01 / 36 M² SHELTER SYSTEM
GENERAL TECHNICAL SPECIFICATIONS
- • Projection Dimensions
- 6.0 m × 6.0 m × 5.5 m (±50 mm); shoulder height 2.35 m (±50 mm); projection area 36.0 m²
- • Internal Dimensions
- 5.48 m × 5.48 m × 3.24 m (±50 mm); shoulder height 2.17 m (±50 mm); internal area 30.0 m²
- • Outer Cover
- ≥750 g/m² green PVC
- • Air Column
- 0.7 mm thick gray PVC
- • Floor Covering
- 420 g/m² gray PVC
- • Main Entrance Dimensions
- 1,500 mm × 2,000 mm (±50 mm), with two zipper-type roller shutters; total: 2 units
- • Window Dimensions
- 885 mm × 815 mm (±50 mm); 6 units total, including window frames, window film, and screen
- • Working Pressure
- 25–30 kPa (0.25–0.3 bar)
- • Adaptation Temperature
- −50°C to 70°C
- • Inflation Time
- 6–8 minutes
- • Estimated Weight
- 200 kg
- • Estimated Packaging Dimensions
- 1.2 m × 1.0 m × 1.0 m; PVC bag with a large handle for easy transport
- • Wind Resistance Rating
- ≥8
- • Accessories
-
- One electric integrated charging-discharging pump: 220–240 V, 50–60 Hz, 2,000 W, approximately 3.45 kg
- Eight 450 mm triangular ground drill bits, one pair of 2-pound hammers, and one repair adhesive
- Five 100 mm × 100 mm repair patches for the outer canopy and floor cloth
- One air-conditioner cover plate set
- • Ventilation System
-
- Four Ø400 mm ventilation openings with sleeves and cover plates positioned around the main entrance
- One detachable PVC panel, minimum 1,550 mm × 1,550 mm, mounted 1,500 mm above ground on the left side of the entrance, forming an external equipment canopy when supported
07 / POWER SUPPORT

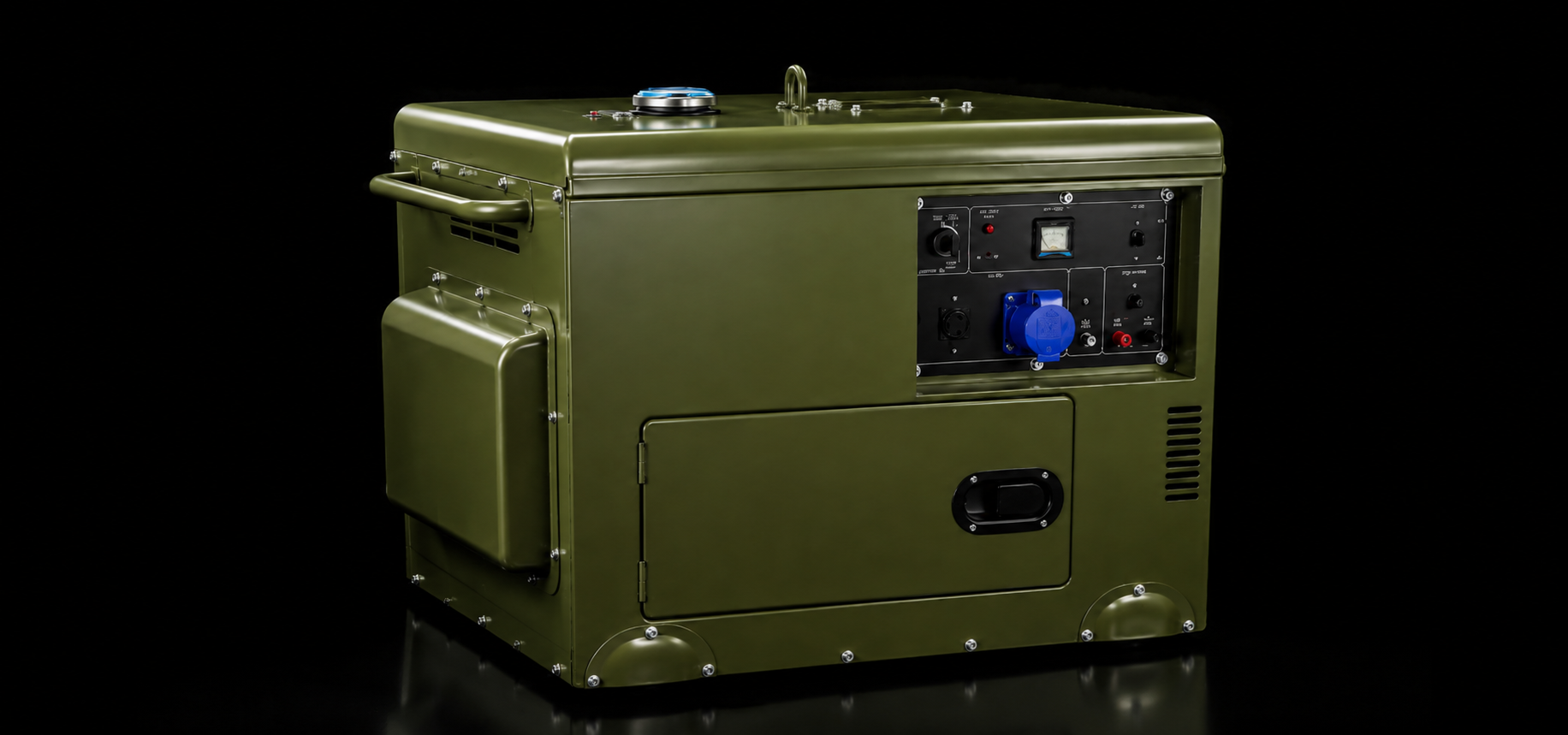

PORTABLE DIESEL GENERATOR
Dedicated field power support for sustained shelter operations, environmental-control equipment, lighting, communications, and essential mission loads.

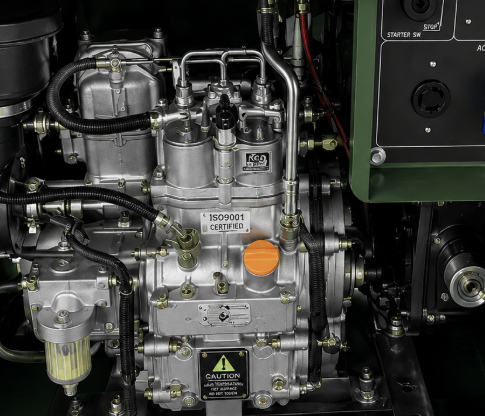

HEAVY-DUTY ENGINE
FOR LONG-HOUR OPERATION

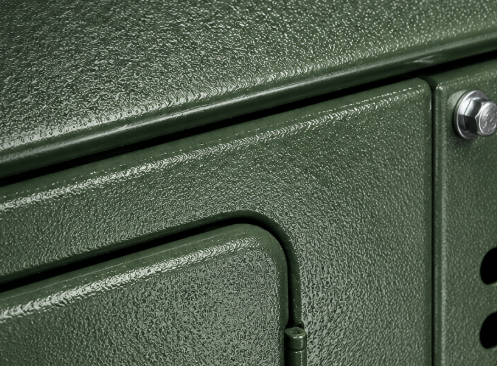

DURABLE STEEL
HOUSING FOR HARSH
ENVIRONMENTS

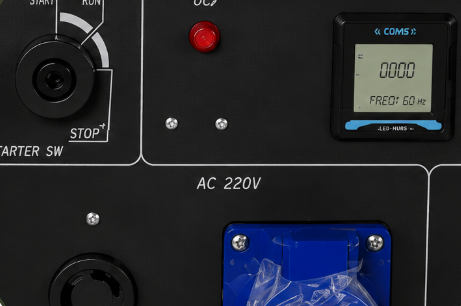

INTEGRATED CIRCUIT BREAKERS, VOLTMETER, OIL-ALERT, AND SAFETY SHUTDOWN

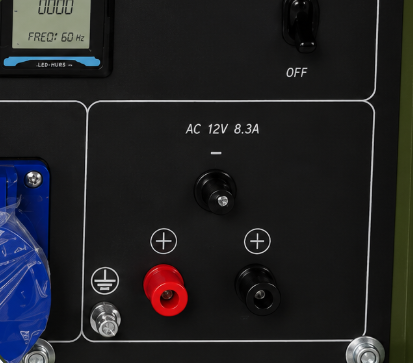

MULTI-OUTPUT CONTROL
PANEL FOR AC AND DC LOADS
PORTABLE DIESEL GENERATOR
TECHNICAL SPECIFICATIONS
RDSS / FIELD POWER SUPPORT MODULE
TECHNICAL SPECIFICATIONS
- • Voltage
- 220 V
- • Frequency
- 60 Hz
- • Rated Power
- 5.0 kW
- • Max Power
- 5.5 kW
- • Power Factor
- cos φ: 1.0
- • Alternator
- Inductive type, self-excited with AVR
- • Engine Type
- Single-cylinder, vertical, 4-stroke air-cooled diesel engine
- • Engine Model
- 188F
- • Engine Speed
- 3600 RPM
- • Displacement
- 456 CC
- • Oil Volume
- 1.65 L (10W/30 SAE)
- • Emission Stage
- Stage III
- • Fuel System
- 0# or −10# light diesel
- • Fuel Tank Volume
- 15 L
- • Fuel Consumption Rate
- ≤280 g/kW·h
- • Alternator Brand
- Inductive load alternator and Yanmar-grade engine
- • Dimensions
- 950 × 580 × 840 mm
- • G.W. / N.W.
- 165 / 160 kg
- • Package
- Kraft box with pallet
- • Warranty
- 2 years or 700 hours, whichever comes first
08 / ENVIRONMENTAL CONTROL

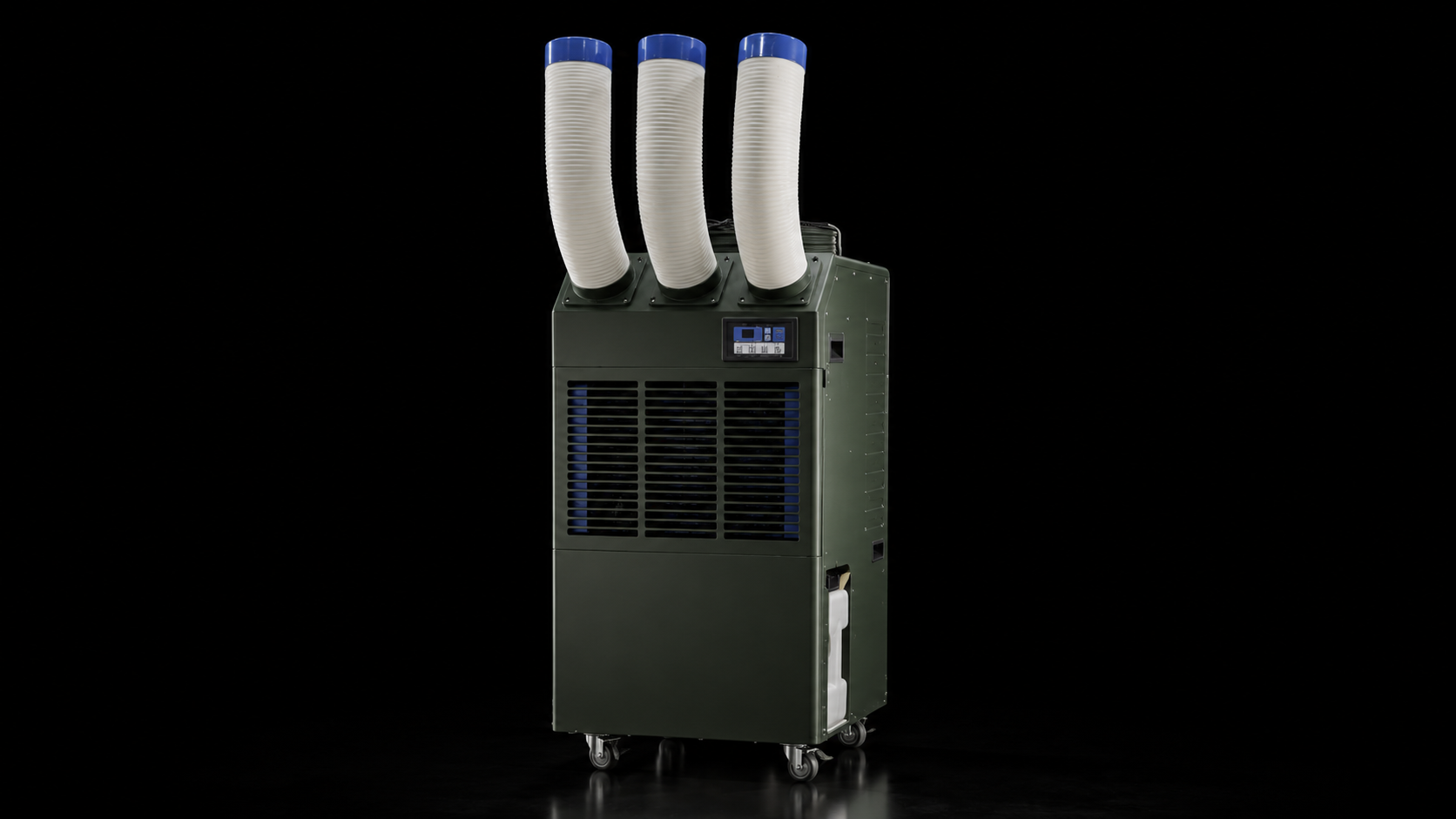

PORTABLE INDUSTRIAL
AIR-CONDITIONING UNIT
Field-ready cooling support engineered to provide stable temperature control, improved habitability, and reliable airflow distribution inside shelters, command posts, and rapidly deployed operational spaces.

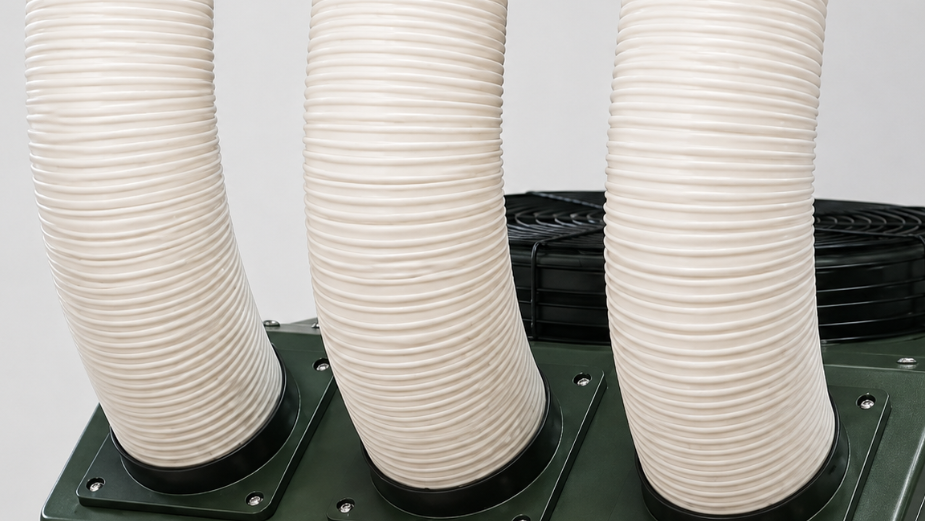

MULTI-DUCT COLD AIR OUTLETS
Distributes cooled air evenly to multiple points inside tents or enclosed field spaces.

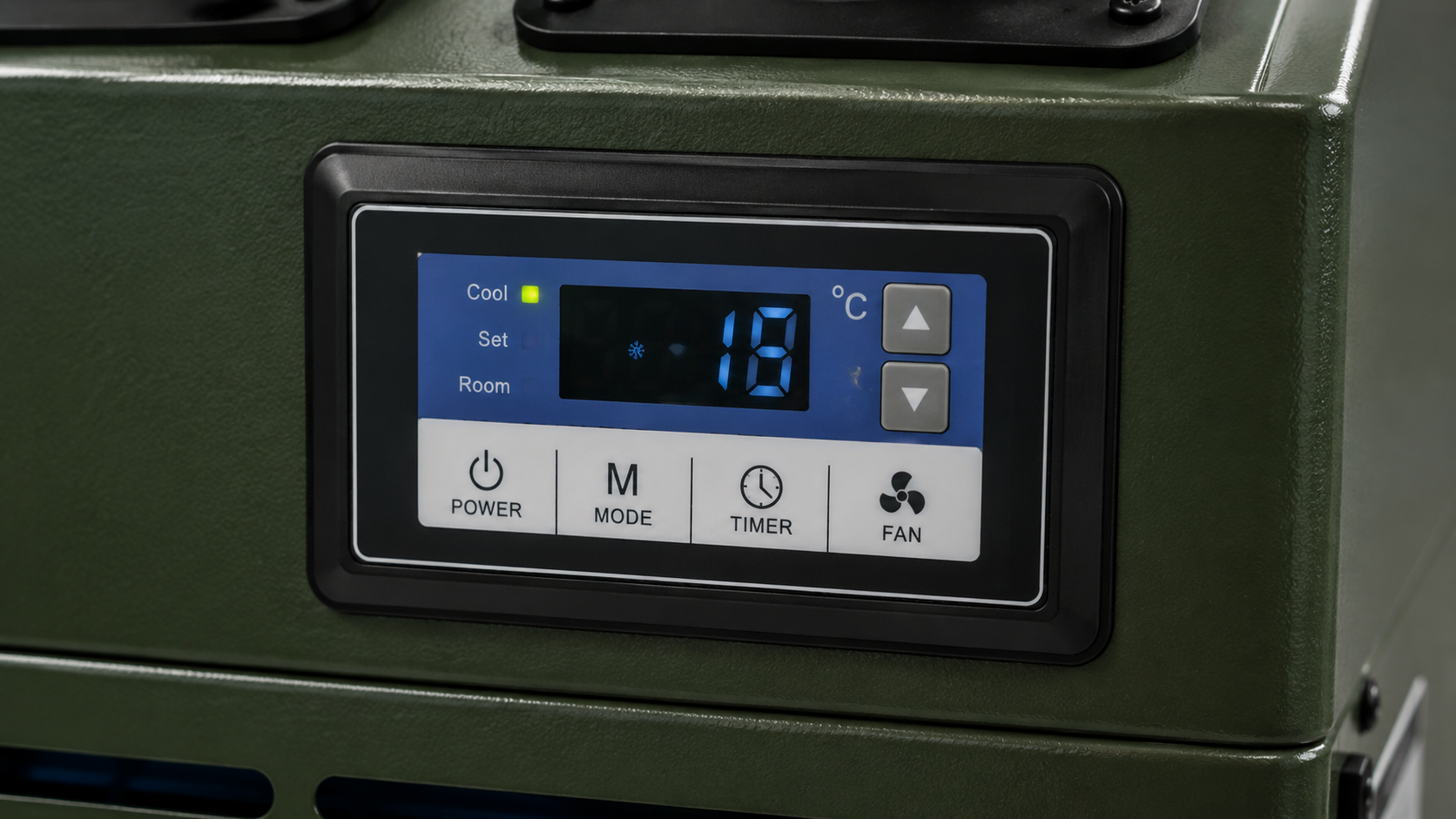

DIGITAL TEMPERATURE CONTROLLER
Provides precise temperature adjustment and convenient operation for consistent field cooling performance.

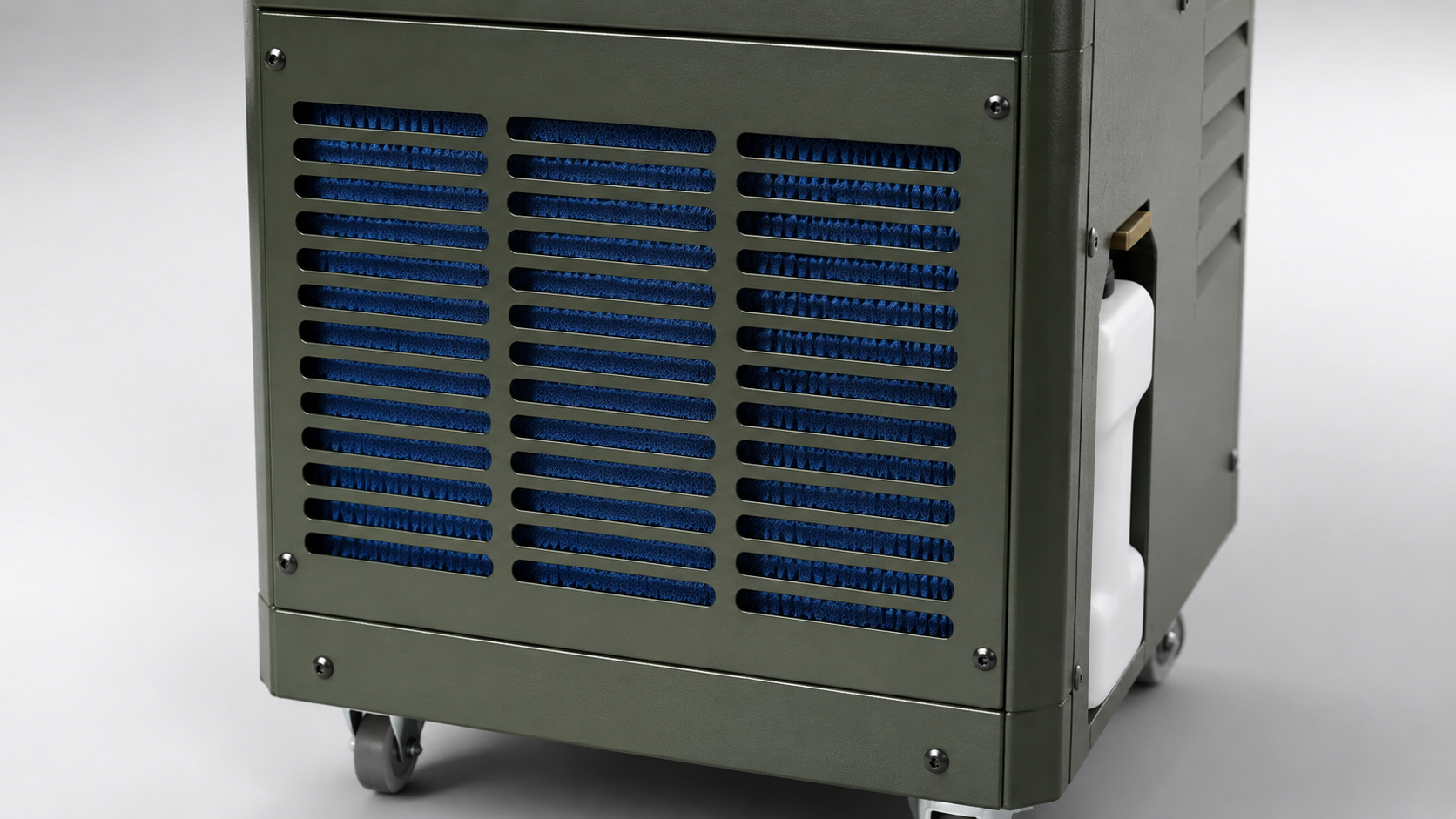

WASHABLE AIR FILTERS &
RUGGED STEEL BODY
Designed for repeated field use with easy maintenance, durable protection, and dependable cooling support.

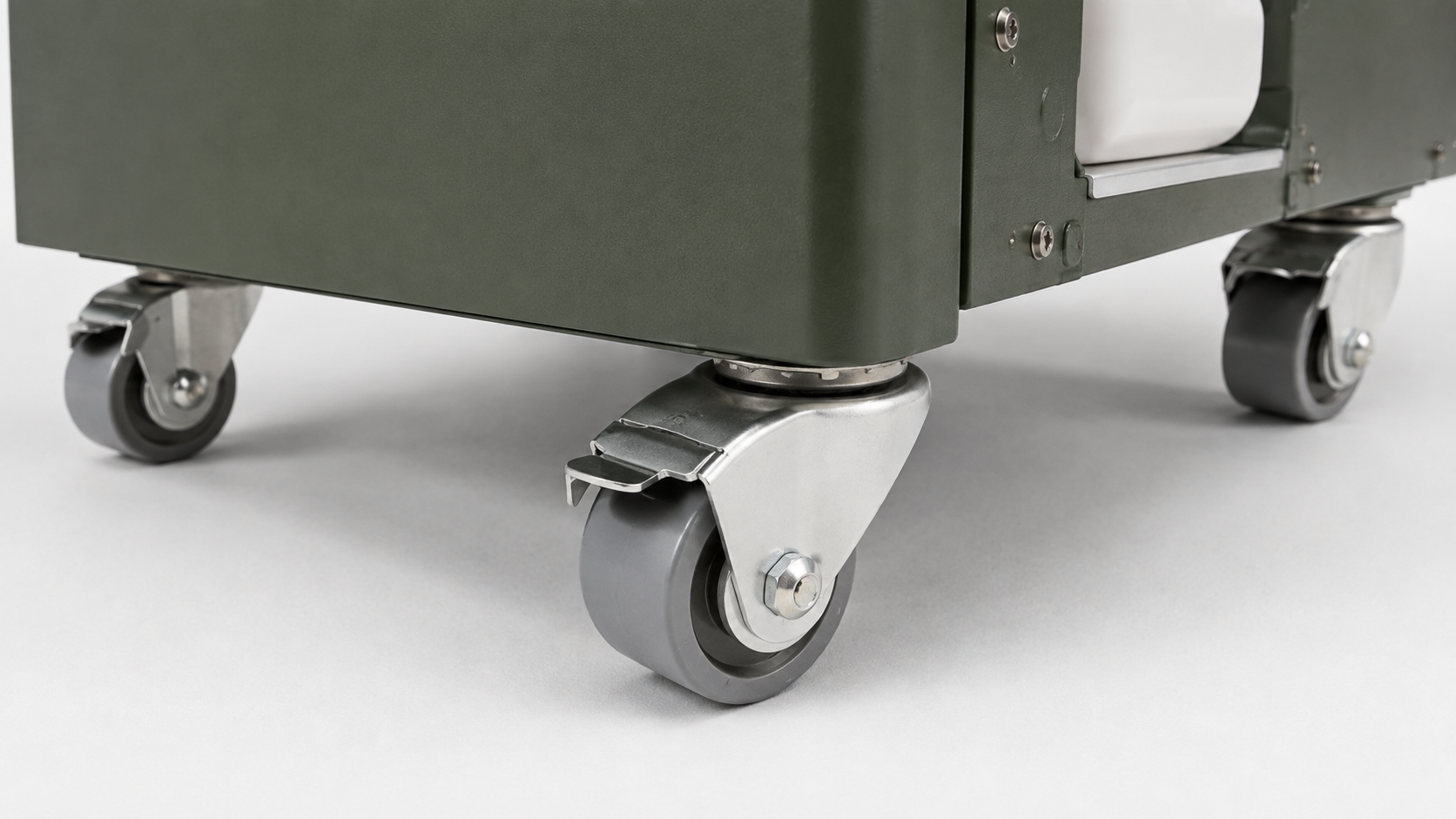

MOBILITY
WHEELS
Integrated wheels enable quick relocation and easy deployment in field environments.
GENERAL TECHNICAL
SPECIFICATIONS
RDSS / PORTABLE INDUSTRIAL AIR-CONDITIONING UNIT
TECHNICAL SPECIFICATIONS
- • Power supply
- 220VAC / 60HZ / Single Phase
- • Cooling capacity
- 6500W / 24000BTU
- • Cold air discharge (air volume)
- High (910m³/h) | Low (775m³/h)
- • Hot air discharge
- 2600m³/h
- • Rated current
- 8.8A
- • Maximum current
- 10.8A
- • Power consumption
- 2350W
- • Max power consumption
- 2400W
- • Condensed Water Drainage
- 14L bucket
- • Refrigerant
- R410A
- • Exhaust pressure
- 3.0MPa
- • Suction pressure
- 0.9MPa
- • Operating pressure (max)
- 4MPa
- • Applicable environment
- 18°C–45°C
- • Dimensions
- 560mm × 630mm × 1260mm
- • Net weight
- 95 kg
- • Gross weight
- 102 kg
