ELECTRO-HYDRAULIC
RESCUE TOOL
EHRT-SE-01
Support Equipment
The Electro-Hydraulic Rescue Tool (EHRT) is a battery-powered, all-electric rescue device designed for rapid emergency response operations. Equipped with detachable cone claws and a high-performance electro-hydraulic system, it delivers powerful cutting, spreading, and prying capabilities while maintaining one-handed operation and portability. Its integrated control panel, lithium battery power source, and rugged construction make it ideal for vehicle extrication, disaster response, and technical rescue applications.
.png)
03 / KEY FEATURES
RAPID RESCUE CAPABILITY
Battery-powered hydraulic performance, quick-change tooling, simplified one-handed control, and centralized system monitoring support fast emergency response in demanding rescue environments.

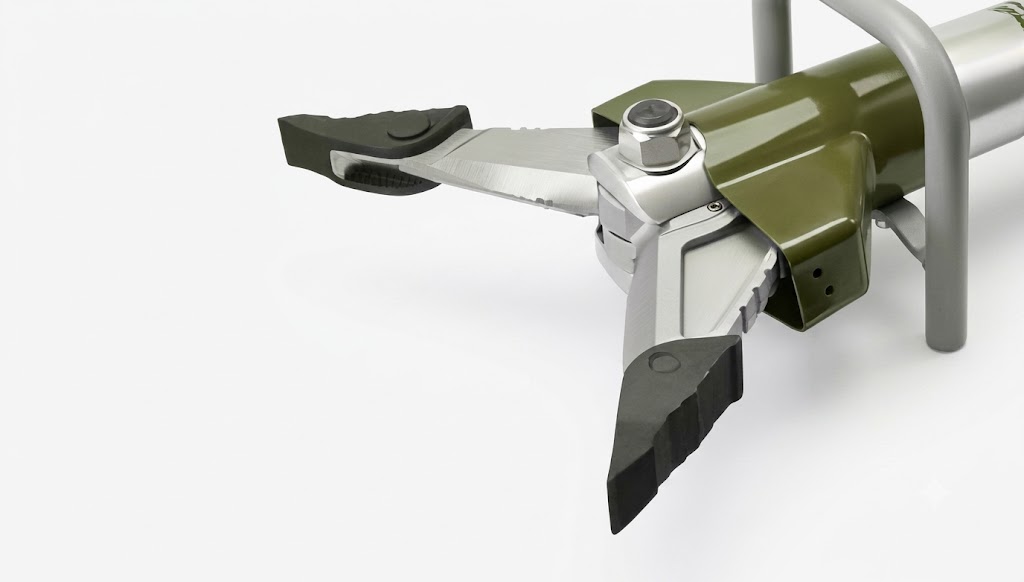

CONE CLAW
Detachable conical claws allow quick replacement for tearing, spreading, squeezing, and more.

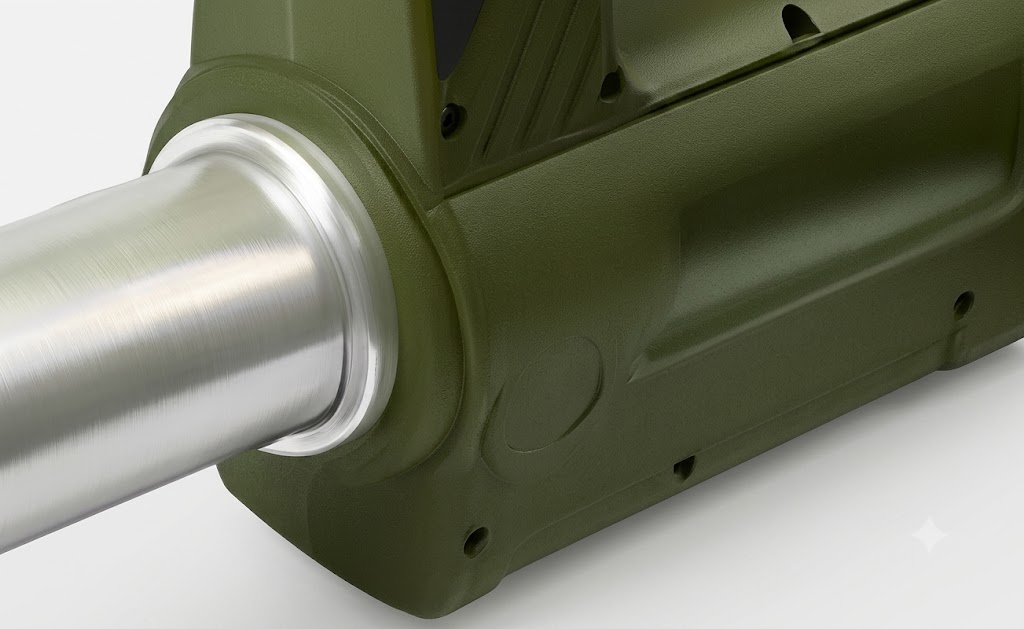

INTEGRATED ELECTRO-HYDRAULIC POWER SYSTEM
Efficient lithium battery with a built-in electro-hydraulic system delivers stable power without requiring an external pump.

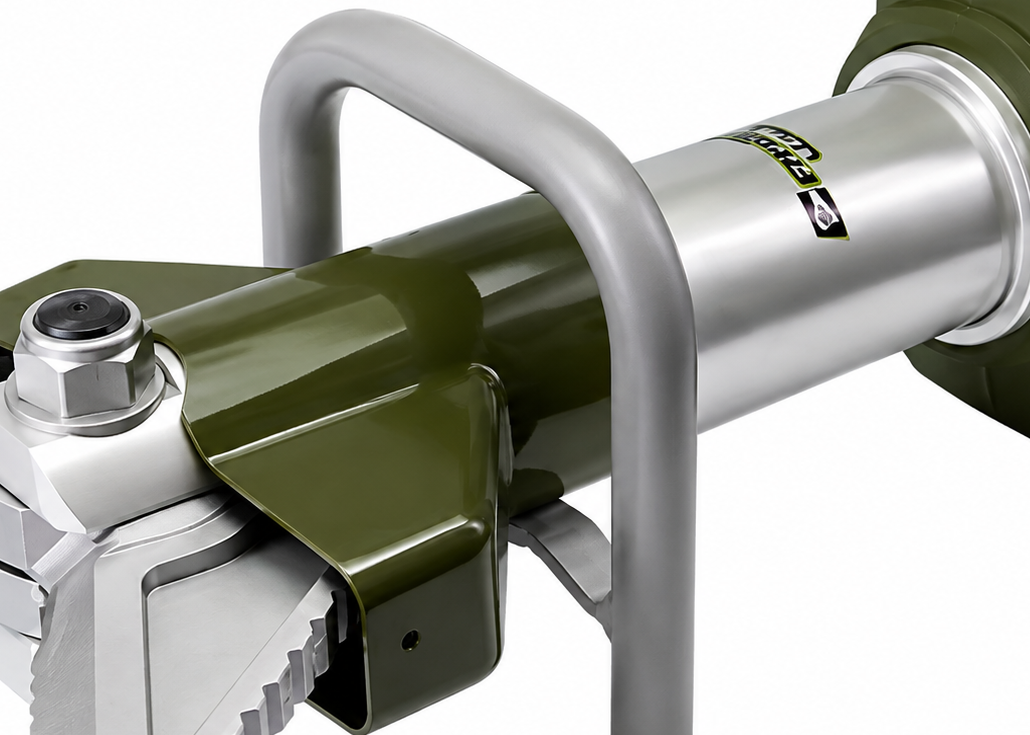

ONE-HANDED OPERATION & BATTERY STATUS
Star-shaped handle valve supports simple one-handed use while a three-level battery indicator provides quick power-status visibility.

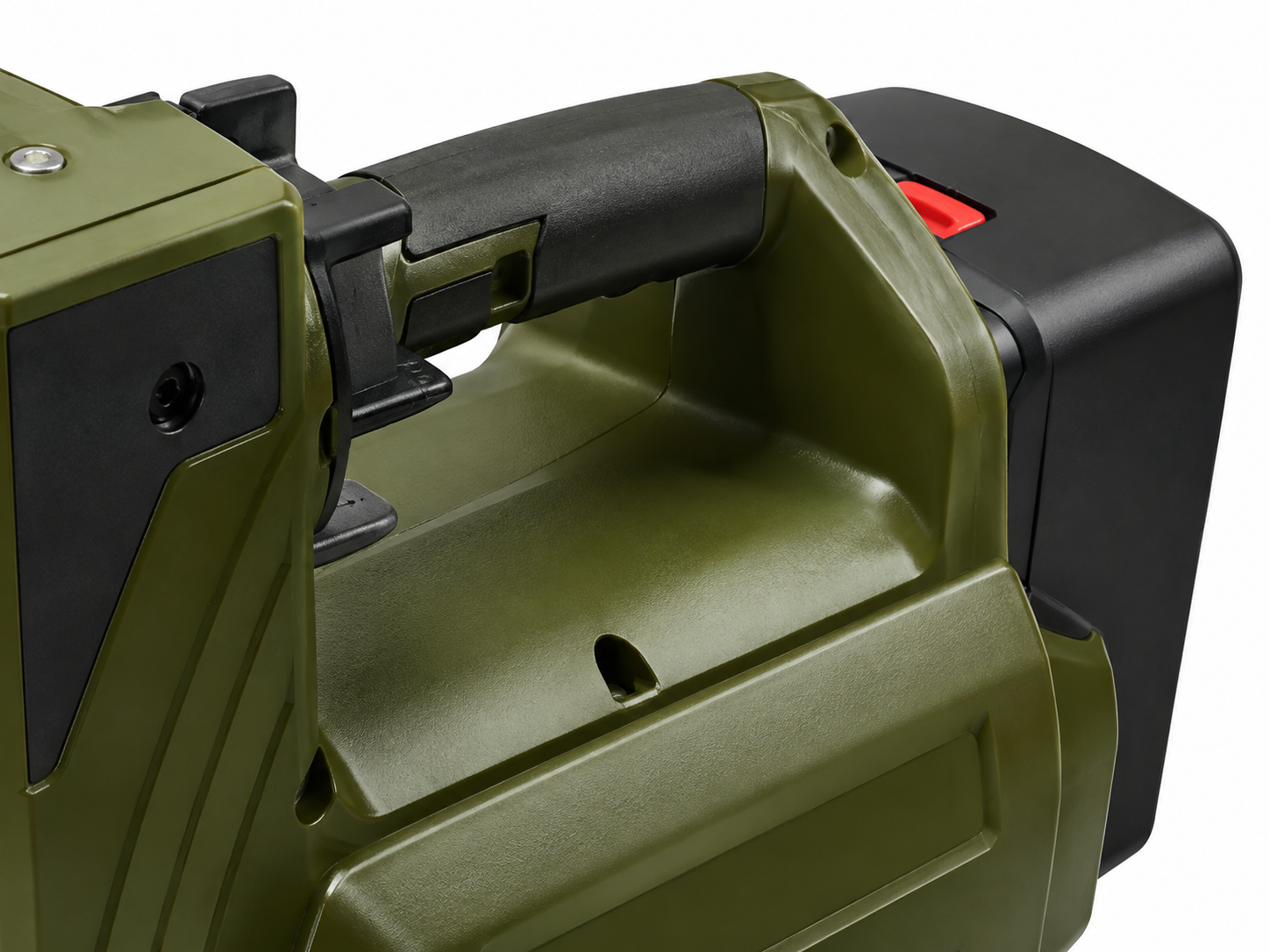

CENTRALIZED OPERATOR CONTROL PANEL
Integrates the power switch, battery and load indicators, work light, and direction control into a single operator interface.
04 / PRODUCT RANGE
EHRT SYSTEM CONFIGURATIONS
Two rescue-tool configurations provide different cutting-opening and spreading ranges while retaining the same 72 MPa operating pressure and battery-powered electro-hydraulic architecture.

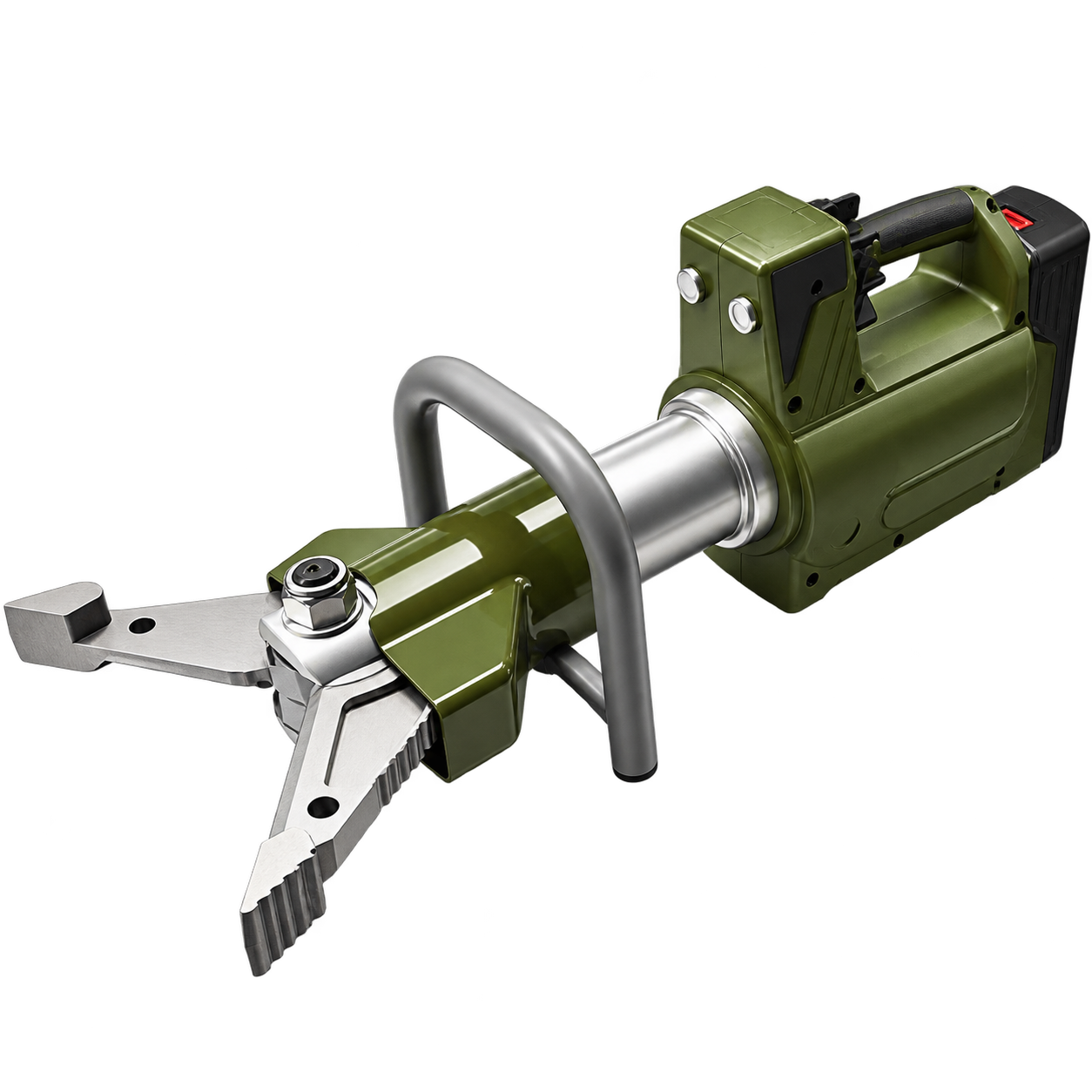

EHRT-001
- Specification
- 72 MPa Working Pressure
- Cutting Opening Distance
- 260 mm
- Spreading Distance
- 370 mm
- Net Weight
- 18.5 kg

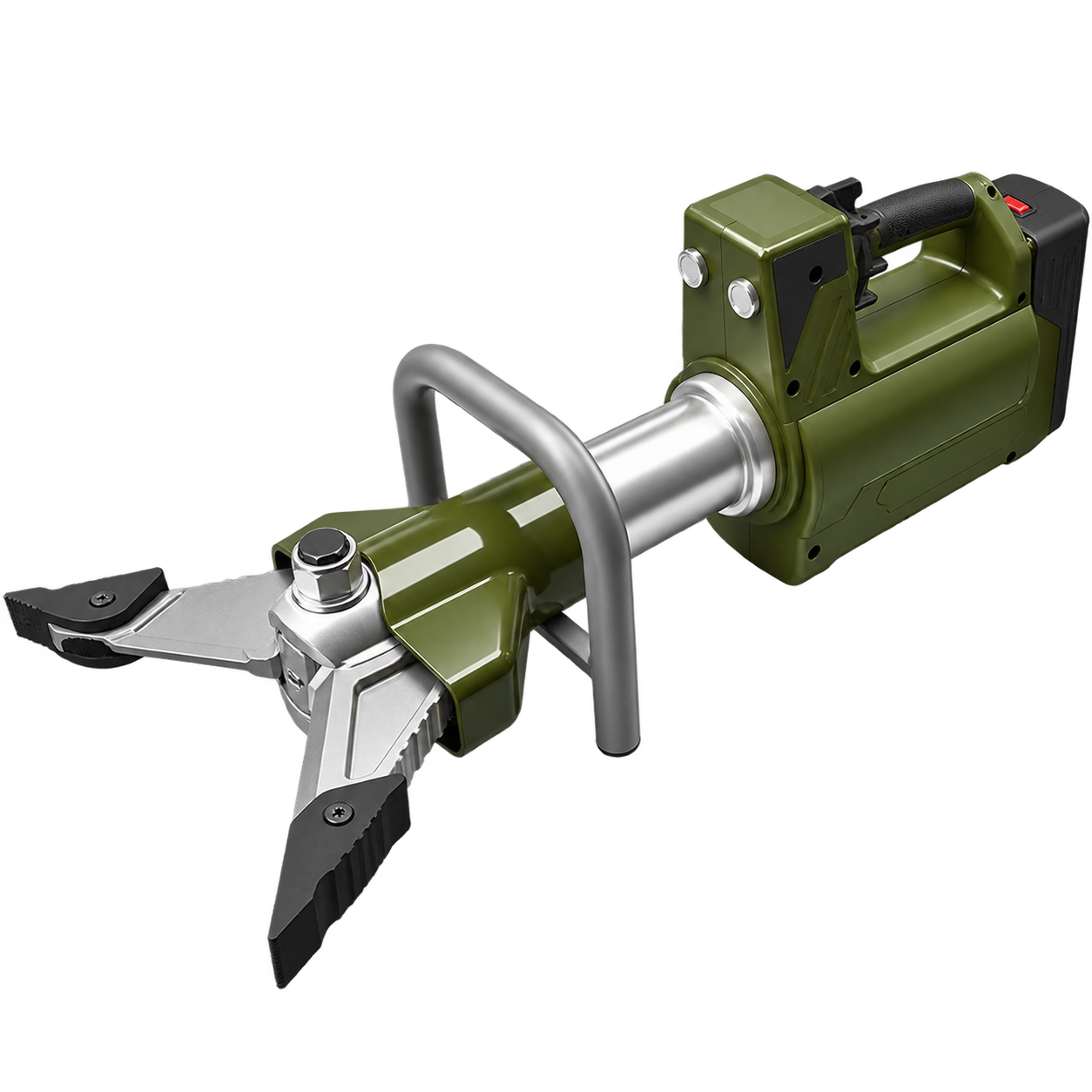

EHRT-002
- Specification
- 72 MPa Working Pressure
- Cutting Opening Distance
- 320 mm
- Spreading Distance
- 470 mm
- Net Weight
- 19.2 kg
05 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Comparative technical data for the EHRT-001 and EHRT-002 electro-hydraulic rescue tool configurations.
| Specification | EHRT-001 | EHRT-002 |
|---|---|---|
| Working Pressure | 72 MPa | 72 MPa |
| Cutting Performance | Ø35 mm Round Bar; 50 × 16 mm Flat Bar |
Ø35 mm Round Bar; 50 × 16 mm Flat Bar |
| Cutting Opening Distance | 260 mm | 320 mm |
| Spreading Distance | 370 mm | 470 mm |
| Minimum Spreading Force | 52 kN | 52.2 kN |
| Net Weight (Battery Not Included) | 18.5 kg | 19.2 kg |
| Battery | 28V 5.6Ah | 28V 5.6Ah (1.3 kg) |
