ATLAS LOG-1
AUTONOMOUS LOGISTICS SUPPORT DRONE
TIER 3
A heavy-lift unmanned logistics platform being developed to provide autonomous resupply capability for dispersed and forward-deployed forces. Atlas is intended to transport mission-essential supplies, medical equipment, ammunition, and sustainment packages while reducing personnel exposure during logistical operations.
03 / KEY FEATURES
HEAVY-LIFT FLIGHT PLATFORM FEATURES
Atlas is structured as a heavy-lift logistics UAV platform combining high-power propulsion, rigid structural reinforcement, and payload support stability for autonomous supply transport in operational environments.

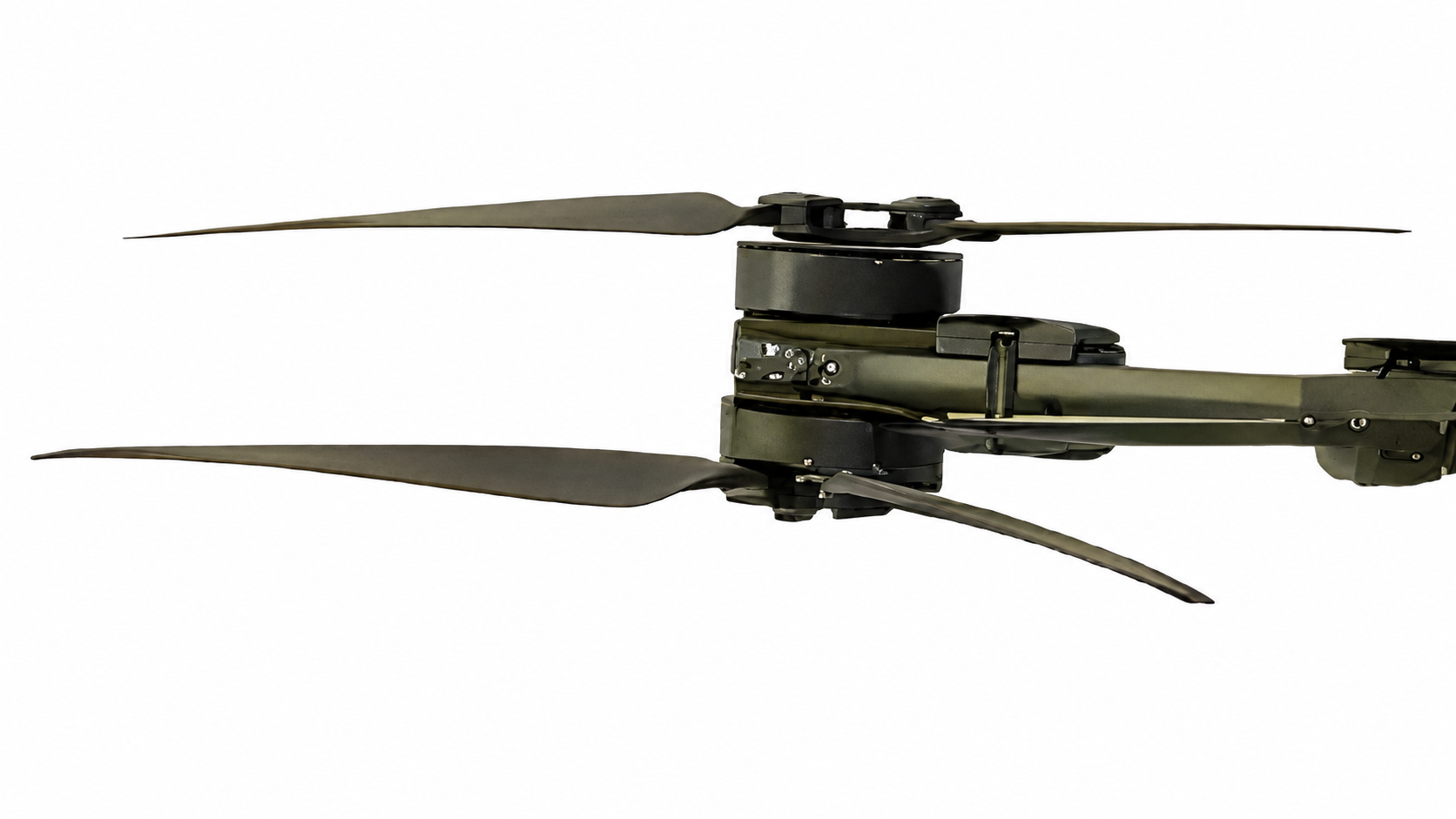

HEAVY-LIFT PROPULSION SYSTEM
High-power brushless motors paired with optimized propellers to generate stable thrust and efficient lifting capability for logistics payload operations.

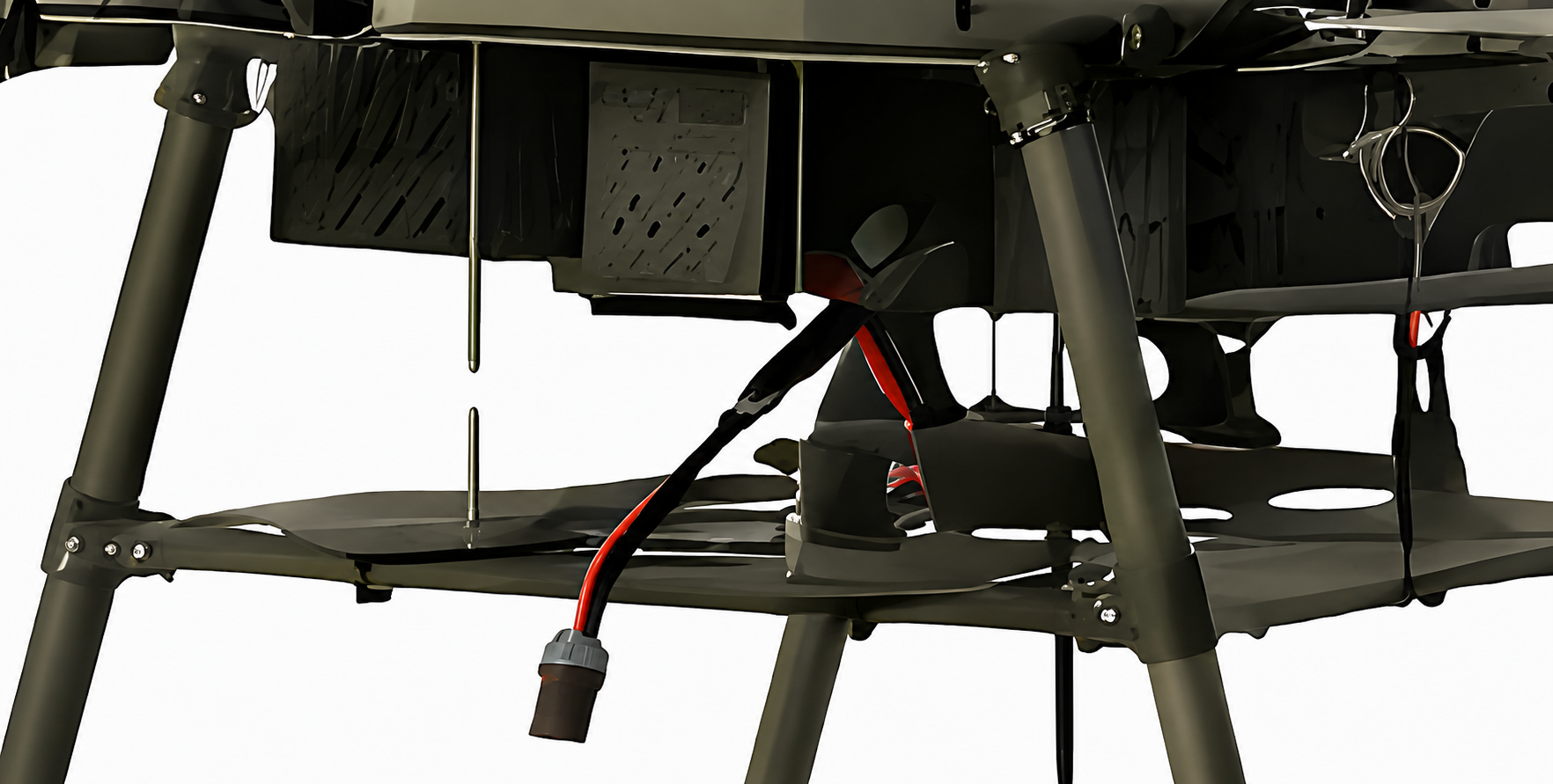

REINFORCED CENTRAL AIRFRAME
Structural drone body engineered to house flight electronics and maintain rigidity for stable heavy-lift operations.

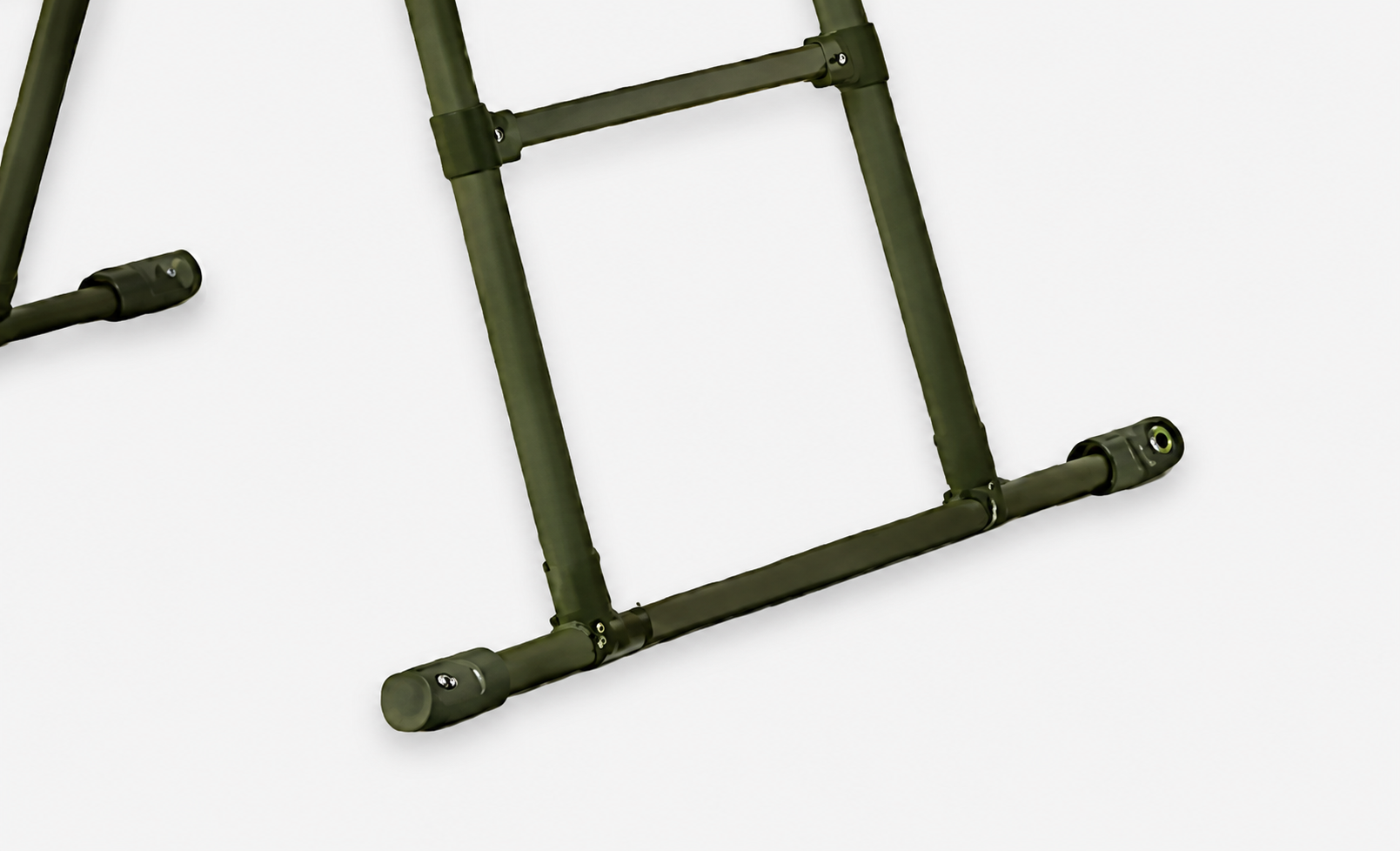

PAYLOAD SUPPORT STABILIZATION
Heavy-duty support structure engineered to maintain drone stability and protect cargo during payload operations.
04 / SYSTEM COMPONENTS
SUBSYSTEM COMPONENTS & SPECIFICATIONS
Atlas subsystem elements include stabilized sensing, long-range command and control, and high-capacity power modules supporting logistics drone employment.

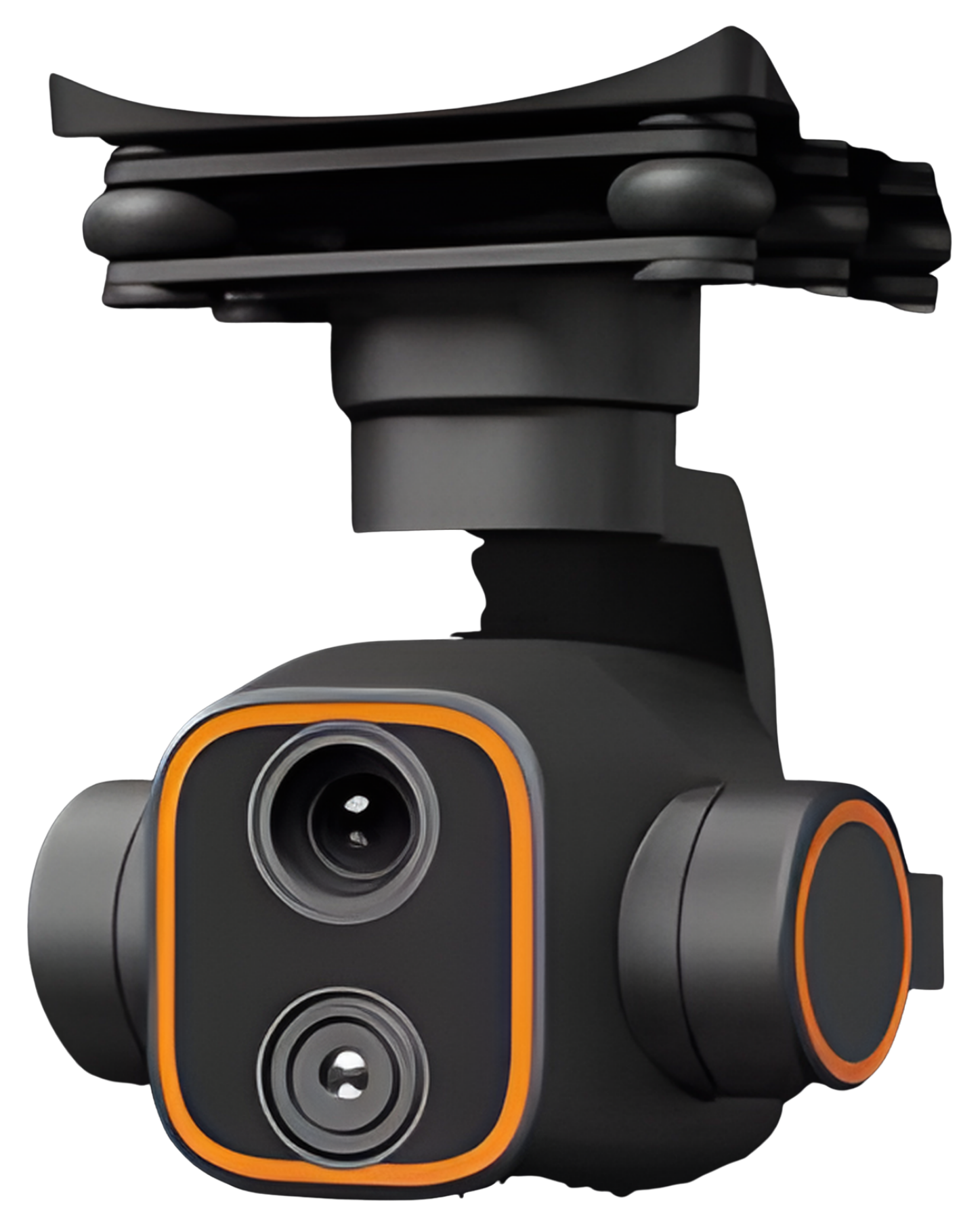

POD SYSTEM
- SPECIFICATIONS
- 3-axis Stabilization
- 2K HD
- Thermal Imaging
- Inverted Mode
- Image Stitching
- Ethernet/RTSP Output
- Intelligent Tracking
- Lightweight

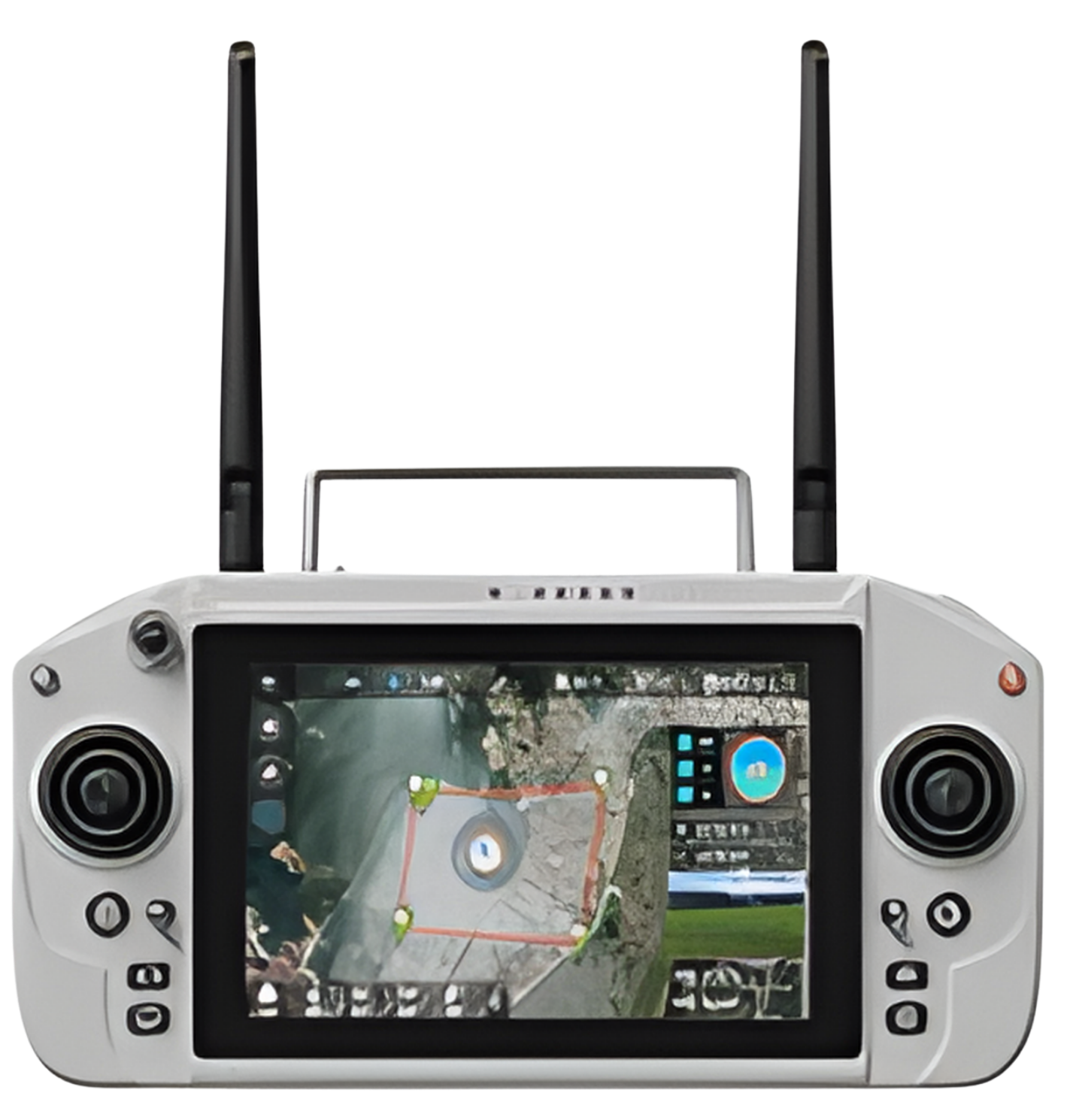

REMOTE CONTROLLER
- SPECIFICATIONS
- Qualcomm 6nm Processor
- 7-inch HD High-brightness Display
- 30KM Image Transmission & Control
- Long Endurance with 36W PD Fast Charging
- Android 13 System
- 2.4GHz/5.7GHz Dual-band Switchable

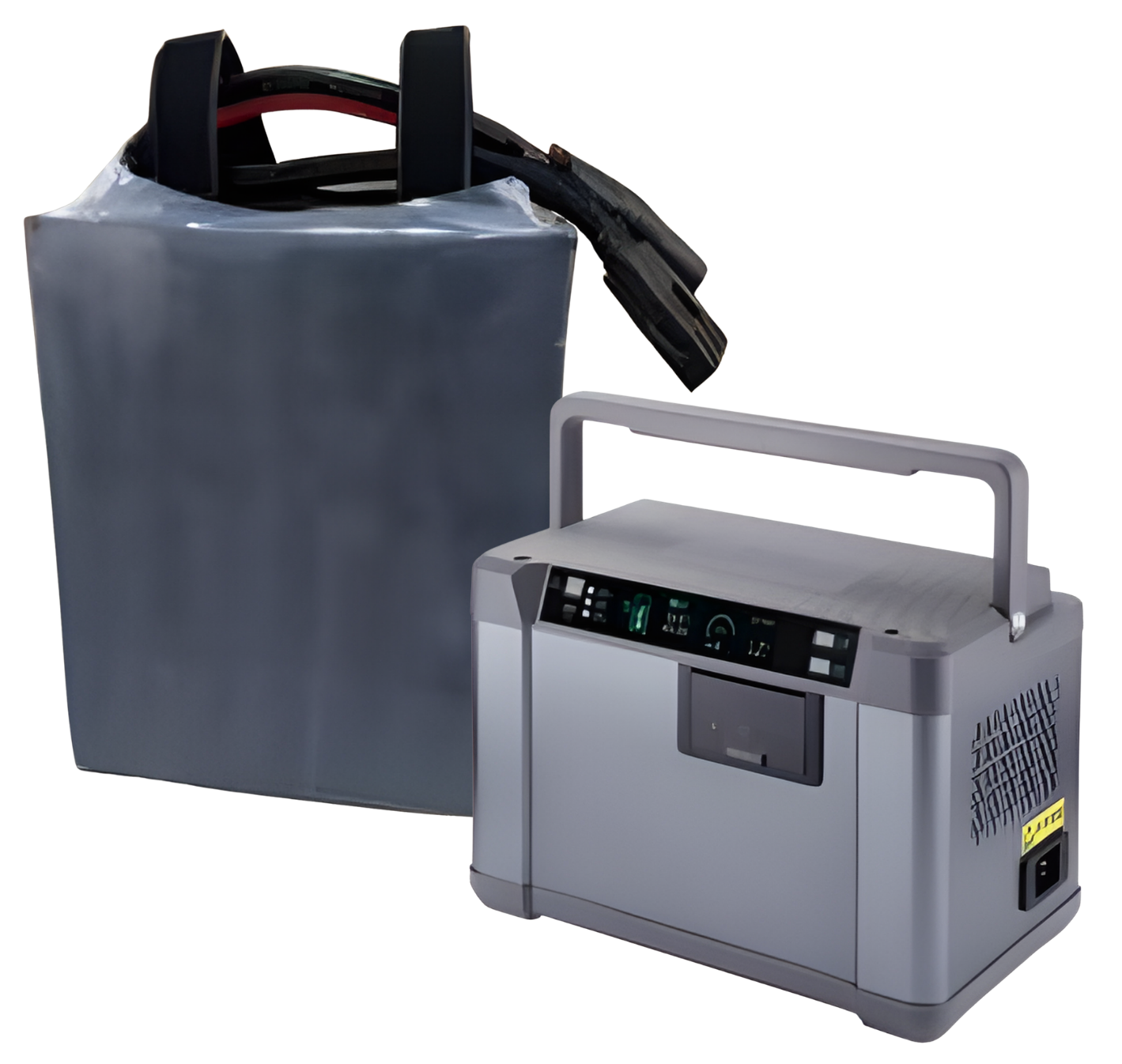

BATTERY & CHARGER
18S 30000mAh LITHIUM BATTERY * 4
- BATTERY WEIGHT
- 10000±300g
- BATTERY CAPACITY
- 18S 30000mAh * 4
- CHARGING TIME
- 20-30 minutes
- CHARGING CYCLES
- 300-500 times
05 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Baseline technical specifications for the DLA-3 ATLAS heavy-lift autonomous logistics drone configuration.
ATLAS LOG-1
AUTONOMOUS LOGISTICS SUPPORT DRONE / GENERAL TECHNICAL SPECIFICATIONS
| DLA-3 ATLAS | TECHNICAL SPECIFICATIONS |
|---|---|
| FLIGHT SPEED | 1-13m/s |
| MAXIMUM ALTITUDE | 2km |
| POWER SYSTEM | XRotor X11plus 43-inch propeller |
| FLIGHT TIME | No load (14S35000mAh*2) >60 minutes, 20kg load (14S35000mAh*2) 30-35 minutes, 20kg load (14S35000mAh*2) 40-45 minutes,10kg load |
| SYMMETRIC WHEELBASE | 2513mm |
| UNFOLDED DIMENSIONS | 2930*2299*1063mm |
| FOLDED DIMENSIONS | 1755*882*1063mm |
| MAXIMUM LOAD CAPACITY | 40kg |
| GROSS WEIGHT (EXCLUDING BATTERY) | 58.8kg |
| STANDARD TAKE-OFF WEIGHT | 180kg (100kg load with 2 batteries) 160kg (80kg load with 2 batteries) 180kg (80kg load with 4 batteries) 160kg (60kg load with 4 batteries) |
| MAXIMUM FLIGHT SPEED | 10-20m/s |
| MOUNTING PLATFORM | Quick-release battery compartment |
| PROPELLER SIZE | 56in |
| WORKING TIME | 8-10 minutes (100kg load with 2 batteries) 15-18 minutes (80kg load with 4 batteries) 10-12 minutes (80kg load with 2 batteries) 20-25 minutes (60kg load with 4 batteries) |
| WORKING VOLTAGE (V) | 67.5-70.2 V (18S) |
| REMARKS | 15km round trip, capable of throwing 8kg weight |
