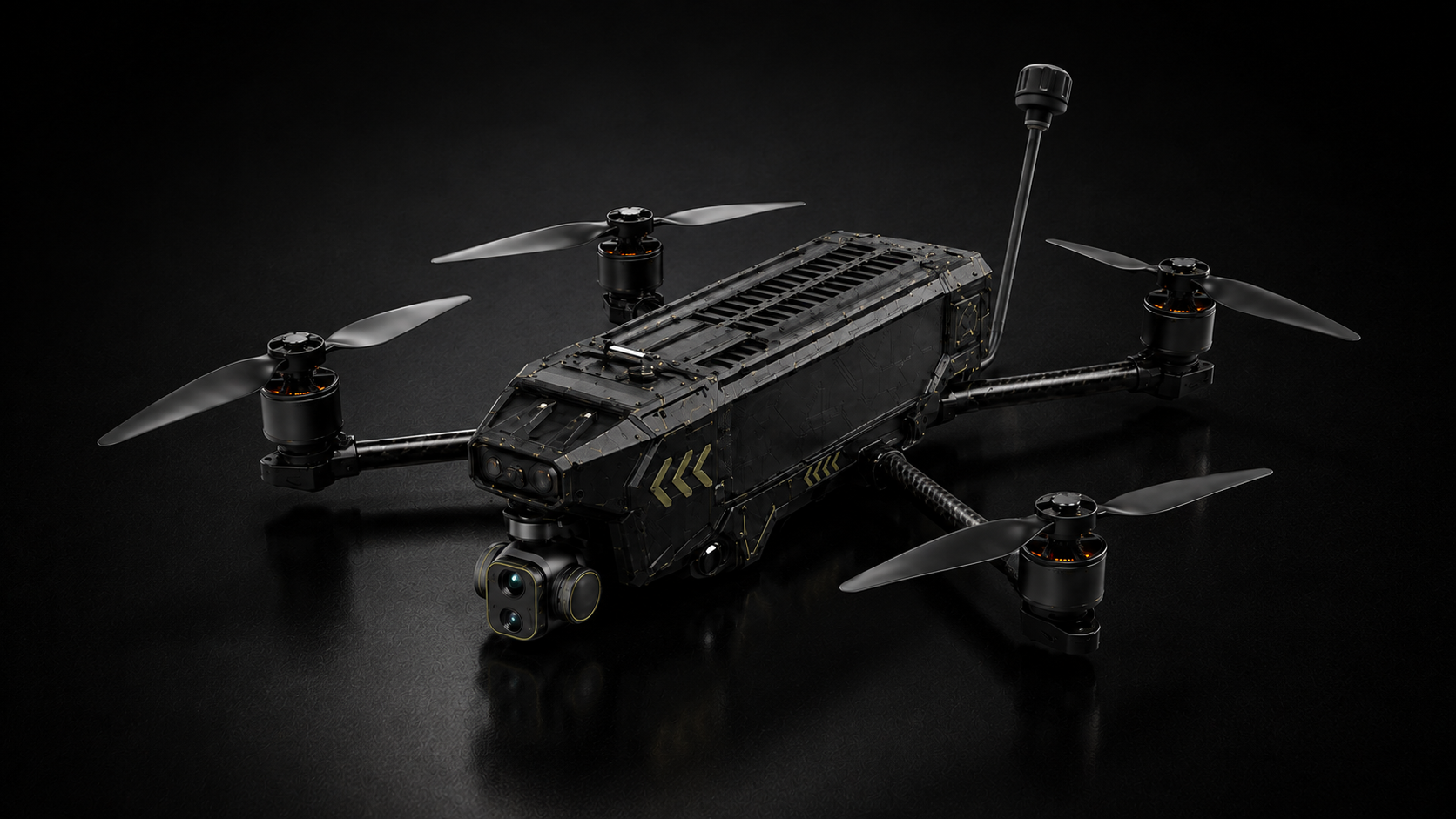

SENTINEL ISR-2
TACTICAL ISR DRONE
TIER 3
A lightweight tactical surveillance drone designed to provide real-time aerial monitoring and situational awareness for squad and platoon-level operations. Sentinel supports reconnaissance, patrol overwatch, perimeter security, and tactical surveillance across urban, jungle, coastal, and maritime environments through rapid deployment and persistent observation capabilities.
03 / KEY FEATURES
TACTICAL FLIGHT FEATURES
Optimized for reconnaissance and tactical observation, Sentinel combines quiet propulsion, stable control links, modular payload integration, and a rugged flight frame for dependable performance in field environments.
LOW-NOISE PROPELLERS
The 1050 3-blade design is engineered to provide efficient thrust, stable flight performance, and reduced acoustic signature, enabling discreet surveillance operations.

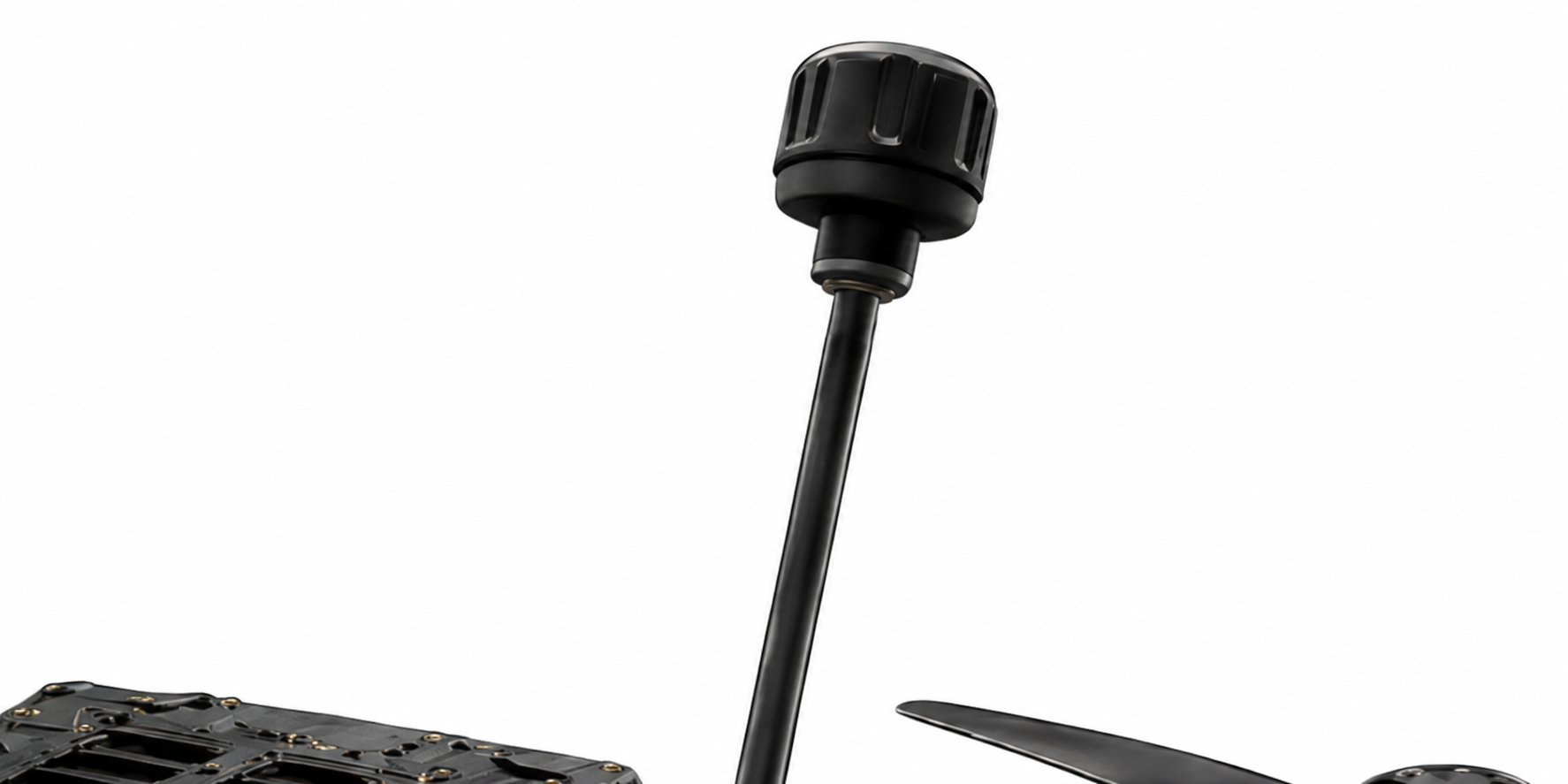

EXTENDED RANGE ANTENNA
The 5.8G SMA L150mm antenna provides stable signal transmission for long-distance control and real-time video telemetry during reconnaissance operations.

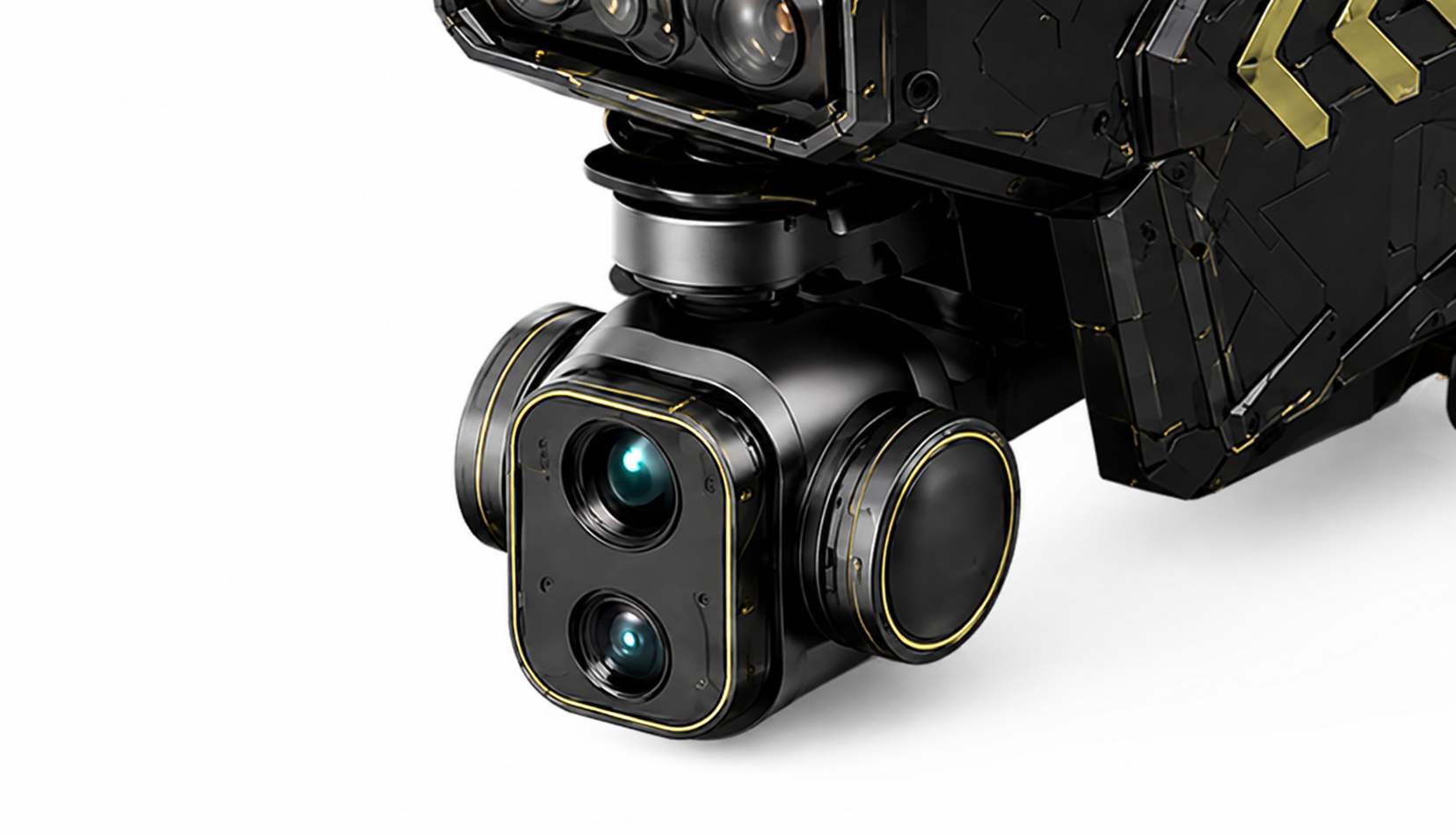

FPV THERMAL CAMERA MOUNT
Front-mounted IRC-640CA module enabling real-time aerial observation and situational awareness for tactical monitoring.

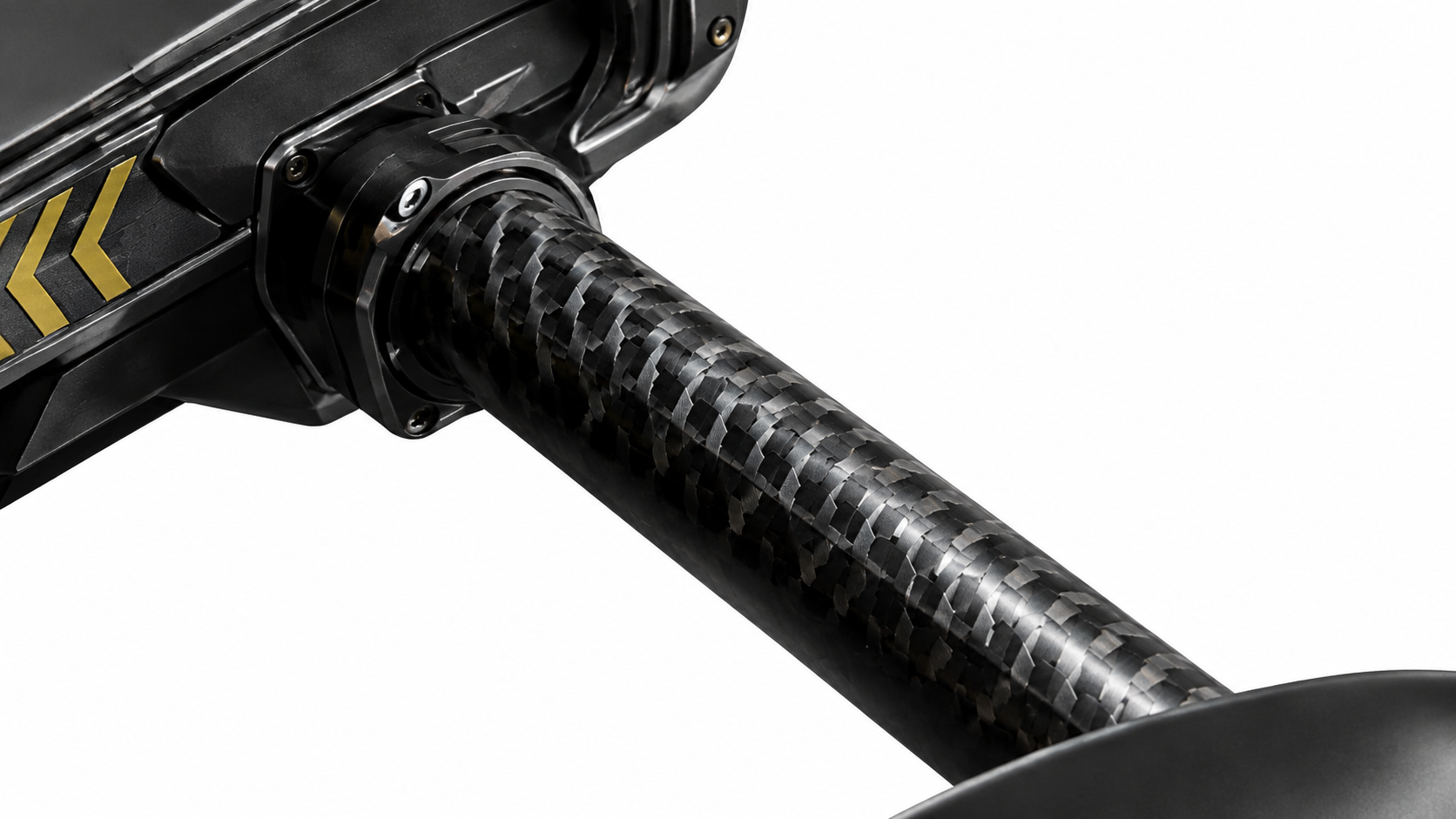

HEAVY-DUTY FRAME STRUCTURE
Lightweight yet rigid structure designed for high durability, vibration resistance, and stable flight performance in demanding operational environments.
04 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Flight, propulsion, power, transmission, positioning, control, and endurance specifications for the Sentinel ISR-2 tactical drone platform.
SENTINEL ISR-2
TACTICAL ISR DRONE / TECHNICAL SPECIFICATIONS
| SPECIFICATION | TECHNICAL SPECIFICATIONS |
|---|---|
| Maximum ascent speed | 10m/s |
| Maximum descent speed | 10m/s |
| Maximum horizontal flight speed (windless) | 30m/s |
| Maximum battery life | 35min |
| Total weight (without battery) | 950g |
| Maximum image data transmission distance | 20KM |
| Disassembled propeller size (L×W×H) | 369*313*80.5mm |
| Installation propeller size (L×W×H) | 578.5*528.7*80.5mm |
| Propeller size | 1050 |
| Diagonal wheelbase | 430mm |
| Input voltage | 6S(26.1V) |
| Battery capacity | 8000mAh |
| Battery weight | Approx. 815g |
| Working temperature | 0-45°C |
| GNSS | GPS+GLONASS+Galileo |
| Working frequency | 2.4/5.8GHz |
| RF power | Maximum 24dBm |
| Hovering accuracy level | Horizontal: ±1m (when GPS is working normally) |
| Remote control | Skydroid G12 (5.5in 1080p Dual band 2.4/5.8GHz) |
05 / SENSOR SUITE
MULTI-SENSOR CAMERA PAYLOAD
An integrated visible-light and thermal imaging payload designed to support aerial reconnaissance, observation, target detection, and environmental awareness in low-light and complex operational settings.
VISIBLE LIGHT & THERMAL IMAGING CAMERA
SENSOR PAYLOAD / CAMERA TECHNICAL SPECIFICATIONS
| CAM | CATEGORY | TECHNICAL SPECIFICATIONS |
|---|---|---|
| VISIBLE LIGHT CAMERA | Visible light camera resolution | 5MP Lens |
| Lens focal length | f=3.5~4.75mm | |
| Aperture | F2.0 | |
| HFOV / VFOV / DFOV | 100° / 52° / 122° | |
| Zoom ratio | 30x electronic zoom | |
| Image transmission resolution | 1280*720 | |
| Recording video resolution | 2560*1440 | |
| Video storage format | MP4 | |
| Camera resolution | 2560*1440 | |
| Photo storage format | JPEG | |
| Supports memory card types | Support MicroSD storage (max to 256GB) | |
| THERMAL IMAGING CAMERA | Resolution | 384*288 |
| Frame rate | ≤25Hz | |
| Thermal time constant | <10ms | |
| Focal length | 7mm | |
| Aperture | F1.0 | |
| FOV | 24.8°*18.7° | |
| Pixel spacing | 12μm | |
| Spectral range | 8~14μm |
