TRACKED UNMANNED
GROUND LOGISTICS VEHICLE
TUGLV-01
TIER 2
The TUGLV-01 Tracked Unmanned Ground Logistics Vehicle is a compact, all-terrain platform engineered for reliable payload transport in demanding operational environments. Its tracked mobility, modular cargo system, and mission-adaptive deployment capability enable efficient logistics support across rugged and restricted terrain.
03 / MISSION APPLICATIONS
MULTI-MISSION LOGISTICS SUPPORT
A modular tracked platform designed to transport mission-critical payloads, supplies, equipment, and support assets across difficult terrain.

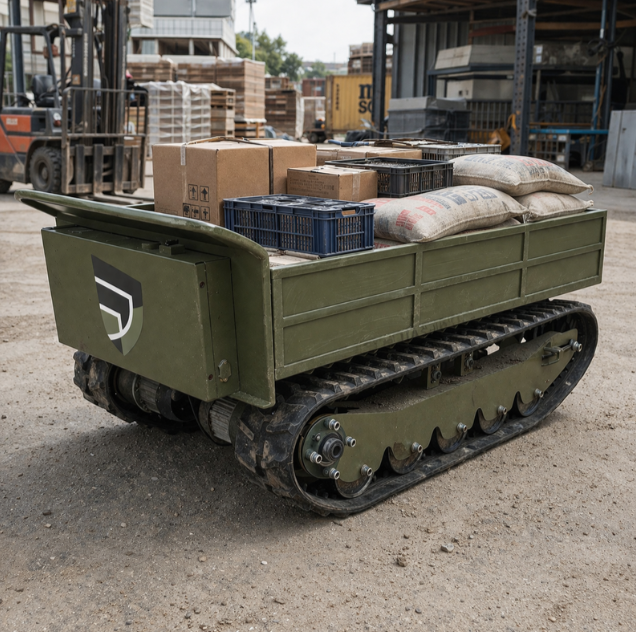

LOGISTICS & SUPPLY TRANSPORT
Movement of general goods, equipment, and field supplies.

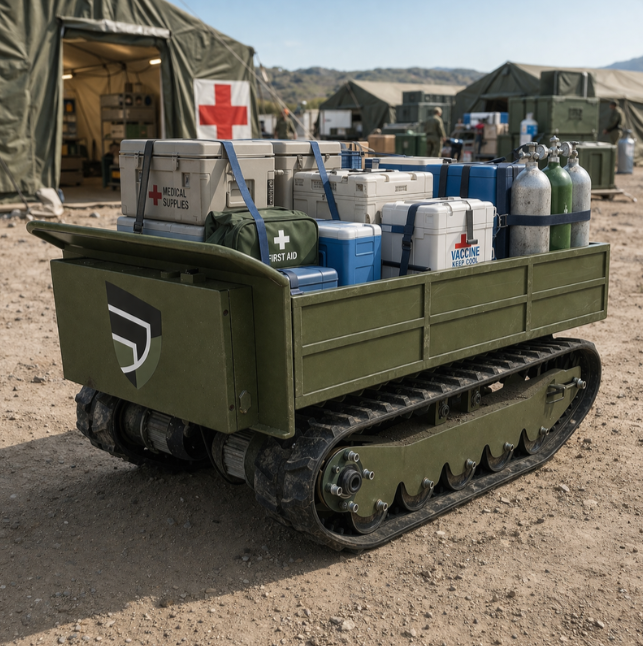

MEDICAL SUPPORT DEPLOYMENT
Delivery of medical kits, field equipment, and casualty support supplies.

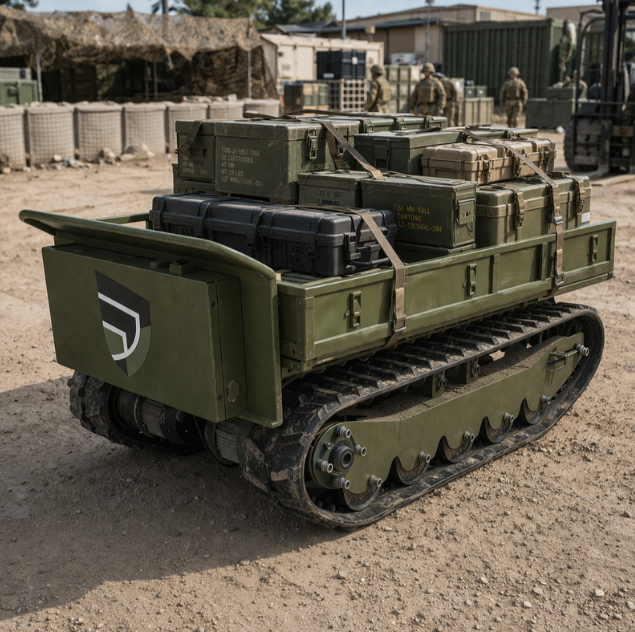

AMMUNITION & ARMORY SUPPORT
Secure transport of munitions and weapons systems.

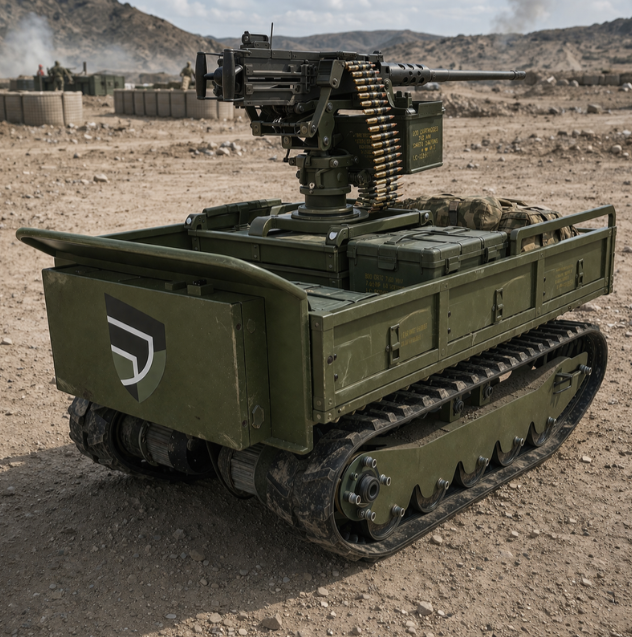

WEAPONIZED PLATFORM INTEGRATION
Configurable to support mounted weapon systems for defensive or tactical use.

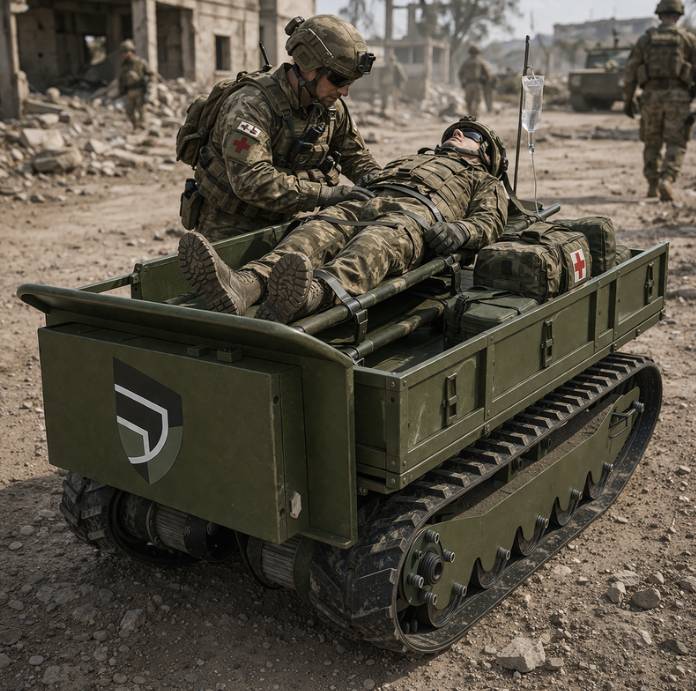

EVACUATION & RESCUE SUPPORT
Capable of transporting injured personnel and supporting emergency extraction in field conditions.

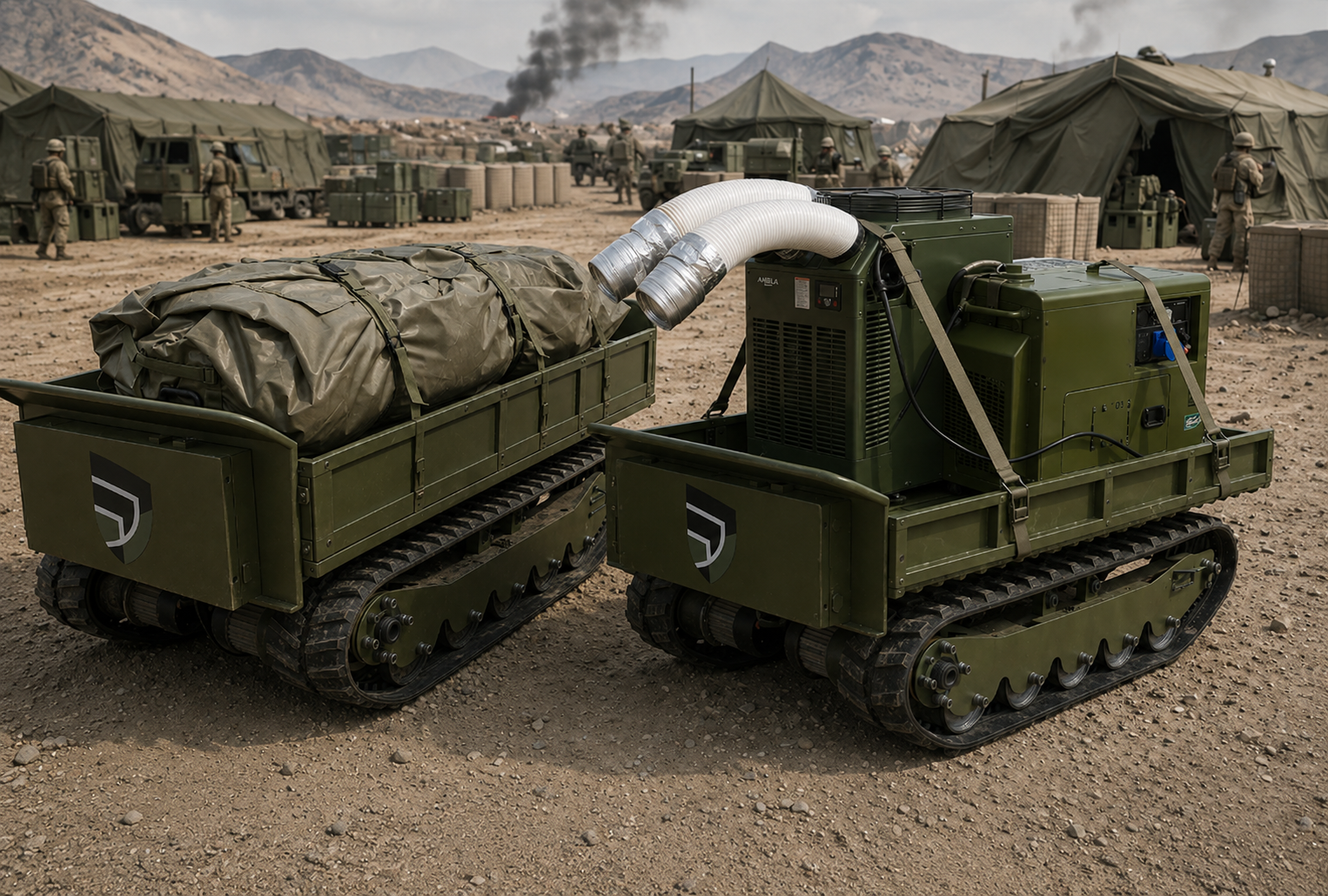

DEPLOYABLE SYSTEMS TRANSPORT
Supports mobile transport and rapid deployment of field assets.
04 / KEY FEATURES
BUILT FOR RUGGED GROUND OPERATIONS
The TUGLV platform combines structural durability, compact mobility, modular payload integration, and tracked traction for sustained field use.

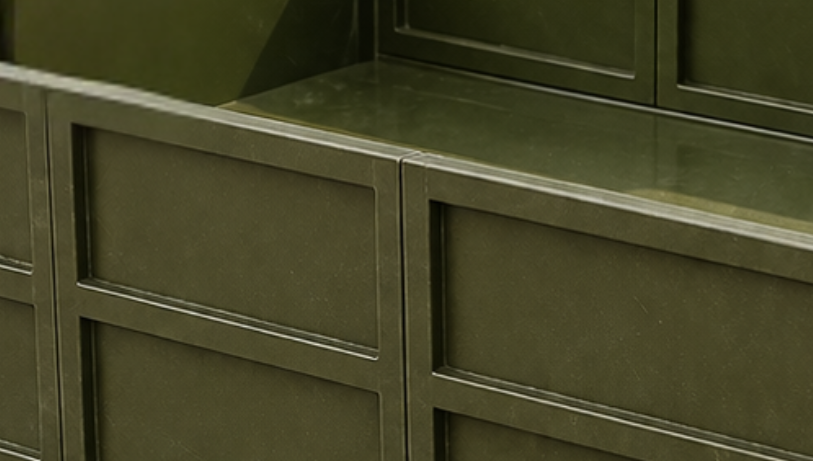

REINFORCED STEEL FRAME
Durable, military-grade build for sustained field operations.

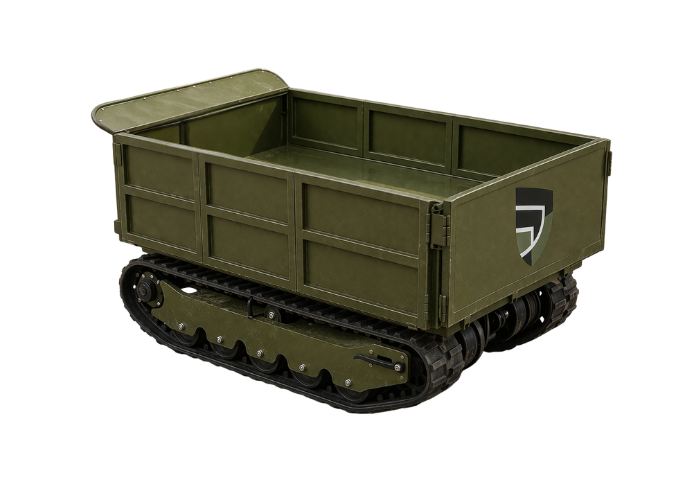

COMPACT LOW-PROFILE DESIGN
Enhanced maneuverability and deployment in confined environments.

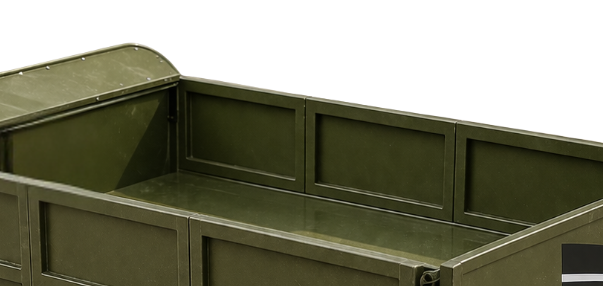

MODULAR CARGO PLATFORM
Configurable space for mission-specific payloads and equipment.

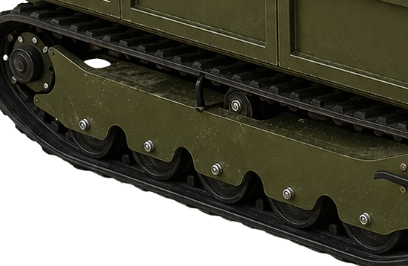

TRACKED MOBILITY SYSTEM
High traction and stability across rugged and uneven terrain.
05 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Core dimensional, payload, mobility, power, endurance, and operating parameters for the TUGLV-01 logistics platform.
TRACKED UNMANNED
GROUND LOGISTICS VEHICLE
TUGLV-01 / TECHNICAL SPECIFICATIONS
| SPECIFICATION | TECHNICAL SPECIFICATIONS |
|---|---|
| Dimensions | 180cm × 100cm × 45cm |
| Loading Platform Area | 140cm × 80cm × 14cm |
| Machine Weight | 380 kg |
| Load Capacity | 2000 kg |
| Remote Control Distance | 200 – 500 meters |
| Load Climbing Angle | 25 – 50 Degree |
| Ground Clearance | 15 cm |
| Battery Capacity | 48V |
| Gasoline Capacity | 8.5 L |
| Battery Life | Unlimited (with Range Extender) |
| Top Speed (Unloaded) | 10 kmph |
| Top Speed (Fully Loaded) | 7 kmph |
| Operating Hours | 4–5 hrs |
