PORTABLE INDUSTRIAL
AIR-CONDITIONING UNIT
PIAC-T2-01
TIER 1
A high-capacity portable cooling system designed for rapid deployment in tents, temporary shelters, command posts, field facilities, and operational environments. Engineered for reliable performance under demanding conditions, the unit delivers efficient cooling, continuous airflow, and mobility for both indoor and outdoor applications. Suitable for disaster response, emergency operations, medical support areas, and modular field infrastructure.
03 / SYSTEM CAPABILITIES
Industrial cooling built for field deployment.
High-output environmental control, portable deployment, wide-temperature operation, and efficient refrigeration support sustained use across temporary and operational facilities.

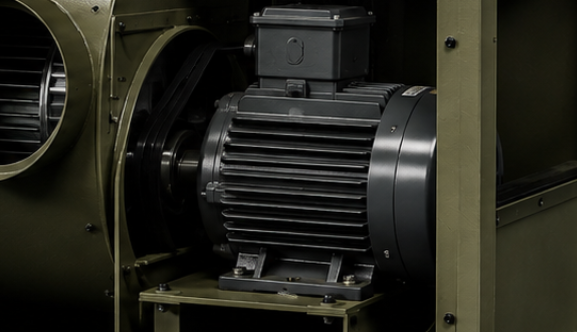

HIGH-CAPACITY INDUSTRIAL COOLING
Delivers up to 61,000 BTU cooling capacity, providing powerful temperature control for inflatable tents, temporary shelters, command centers, warehouses, and operational field environments.

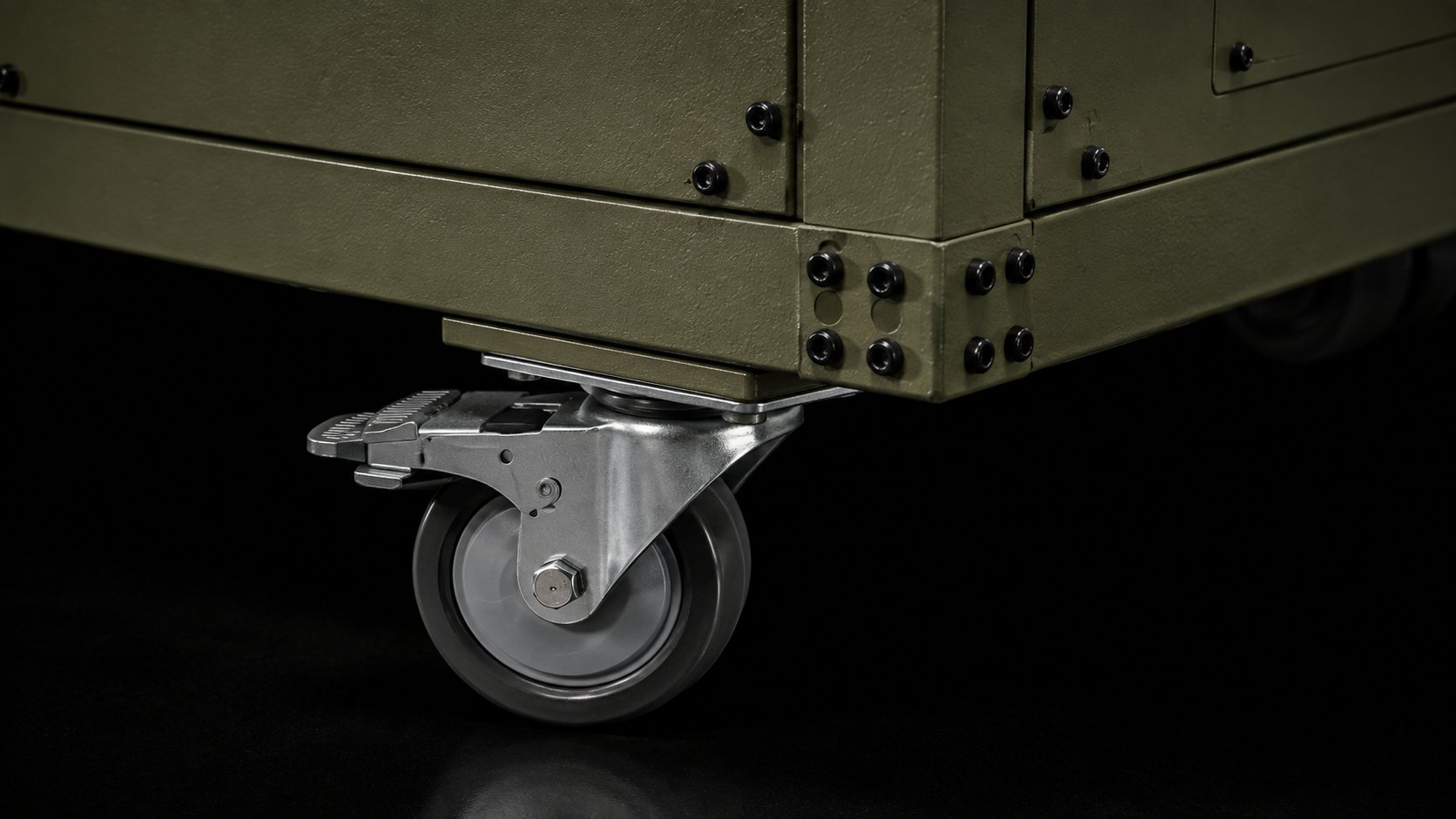

PORTABLE AND RAPID DEPLOYMENT DESIGN
The compact industrial configuration enables quick deployment in temporary facilities, emergency operations, and remote locations.

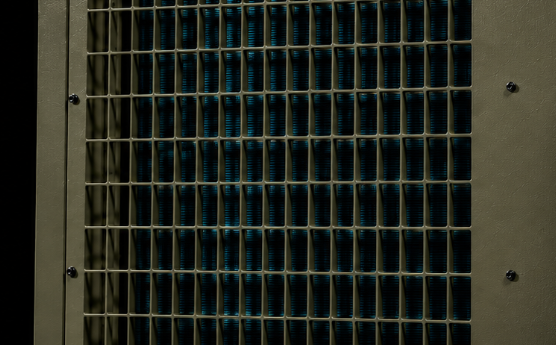

WIDE OPERATING TEMPERATURE RANGE
Engineered to operate efficiently in ambient temperatures from 18°C to 45°C, making it suitable for tropical climates, outdoor deployments, and high-heat operational environments.

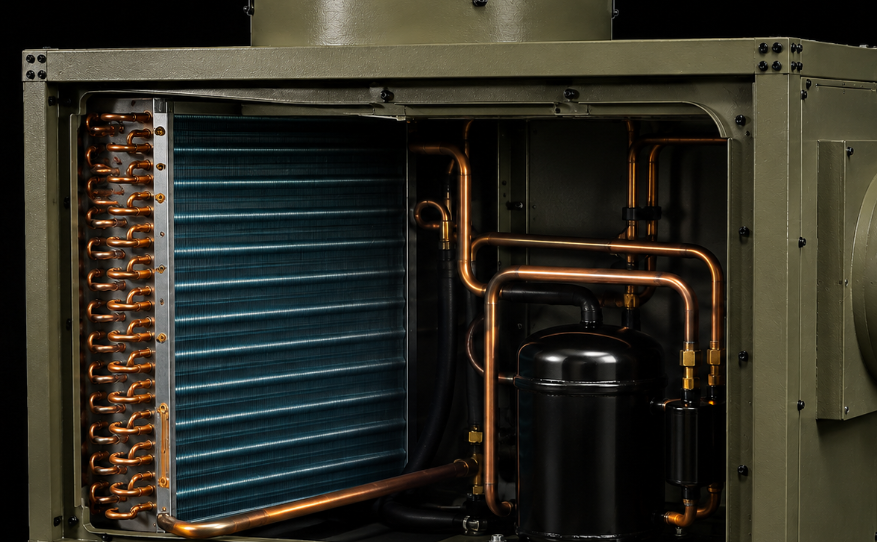

ENERGY-EFFICIENT REFRIGERATION SYSTEM
Uses R410A refrigerant combined with optimized industrial cooling components to deliver stable performance, efficient heat exchange, and reliable long-duration operation.
04 / TECHNICAL DOCUMENTATION
General Technical Specifications
Cooling performance, electrical requirements, operating pressures, environmental limits, physical dimensions, and unit weight.
PORTABLE INDUSTRIAL
AIR-CONDITIONING UNIT
PIAC-T2-01 / PORTABLE INDUSTRIAL AIR-CONDITIONING UNIT
TECHNICAL SPECIFICATIONS
- • Power Supply
- 220VAC / 60HZ / Single Phase
- • Cooling Capacity
- 6500W / 24000BTU
- • Cold Air Discharge (Air Volume)
- High (910m³/h) | Low (775m³/h)
- • Hot Air Discharge
- 2600m³/h
- • Rated Current
- 8.8A
- • Maximum Current
- 10.8A
- • Power Consumption
- 2350W
- • Max Power Consumption
- 2400W
- • Condensed Water Drainage
- 14L bucket
- • Refrigerant
- R410A
- • Exhaust Pressure
- 3.0MPa
- • Suction Pressure
- 0.9MPa
- • Operating Pressure (Max)
- 4MPa
- • Applicable Environment
- 18°C–45°C
- • Dimensions
- 560mm × 630mm × 1260mm
- • Net Weight
- 95 kg
- • Gross Weight
- 102 kg
