DEPLOYABLE WATER
PURIFICATION SYSTEM
DWPS-T2-01
TIER 2
The AQUAPURE Pulse Resonance Smart Water Purifier is an advanced water treatment system utilizing pulse resonance purification technology to deliver clean drinking water without traditional filter consumables. Designed for large-scale deployment, it combines intelligent monitoring, low maintenance requirements, and continuous water quality management.
03 / KEY FEATURES
Intelligent purification without conventional filter consumables.
Pulse resonance technology combines physical water treatment, continuous monitoring, simplified maintenance, and scalable production for large deployment environments.
PURE PHYSICAL WATER PURIFICATION
Treats water through a physical pulse-resonance process without relying on chemical additives or conventional filtration media.
NO FILTER REPLACEMENT REQUIRED
Eliminates routine filter replacement to reduce maintenance requirements, consumable costs, and operational downtime.
INTELLIGENT CLOUD MONITORING
Supports connected monitoring of water quality and consumption data for more efficient system management.
LARGE-SCALE WATER PRODUCTION
Designed to provide continuous purified-water output for communities, field facilities, and other high-demand applications.

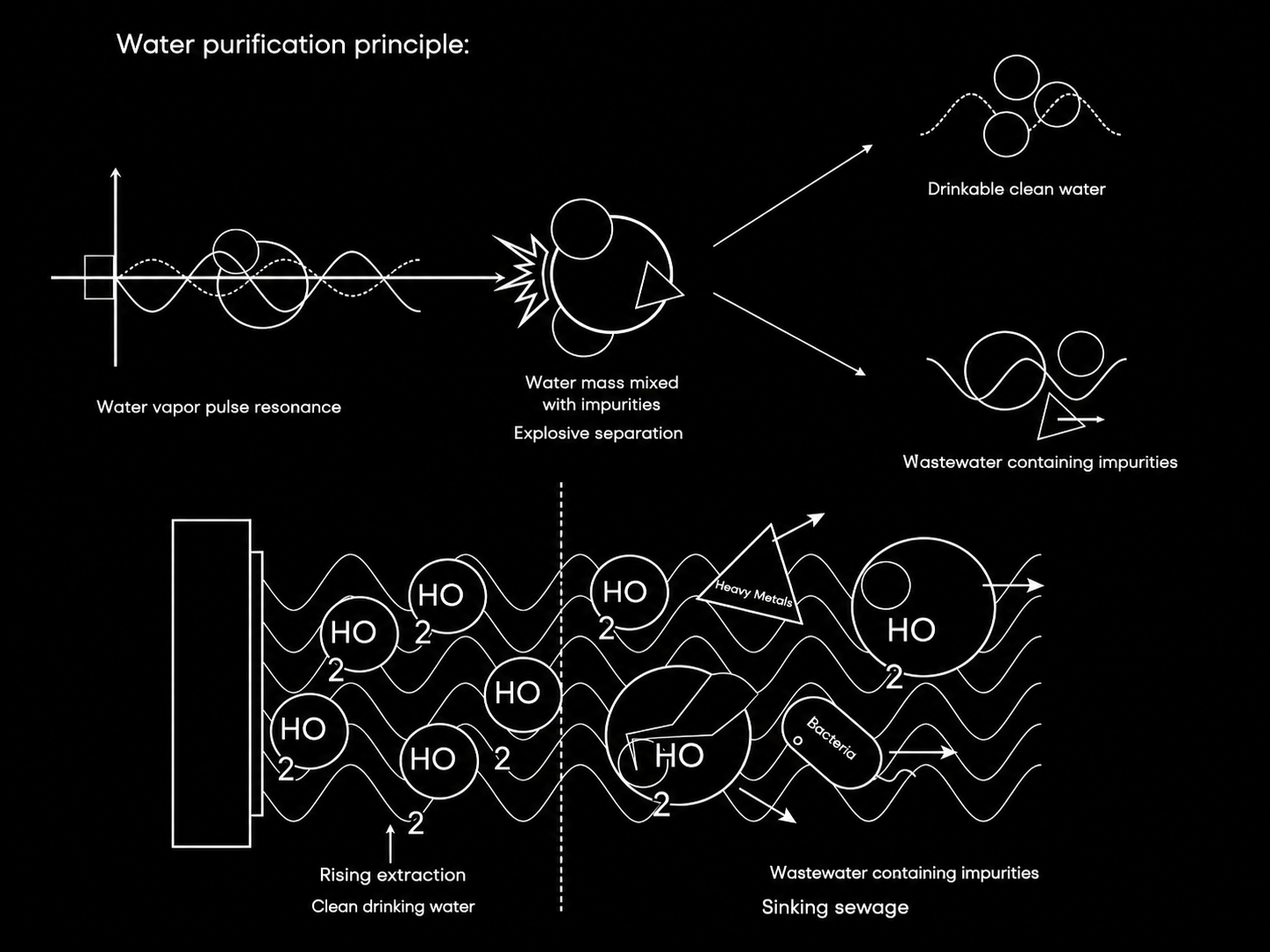

04 / PURIFICATION TECHNOLOGY
PULSE RESONANCE WATER PURIFICATION
Advantages of the pulse water purification system:
- Pure physical water purification can improve residents' drinking-water hygiene safely and on a large scale.
- Supply water by quality, improve the utilization rate of water resources for residents, and save water.
- It can effectively reduce white pollution such as barreled and bottled water, while promoting environmental awareness.
- Save labor and avoid risks associated with transportation and storage of bottled water.
- Provide strategic reserve water for emergencies, with the storage tank supplying additional clean drinking water.
- Low investment and convenient use allow residents to access high-quality and affordable purified water.
- Uses modern Internet of Things technology to build a real-time, intelligent, and controllable drinking-water management platform.

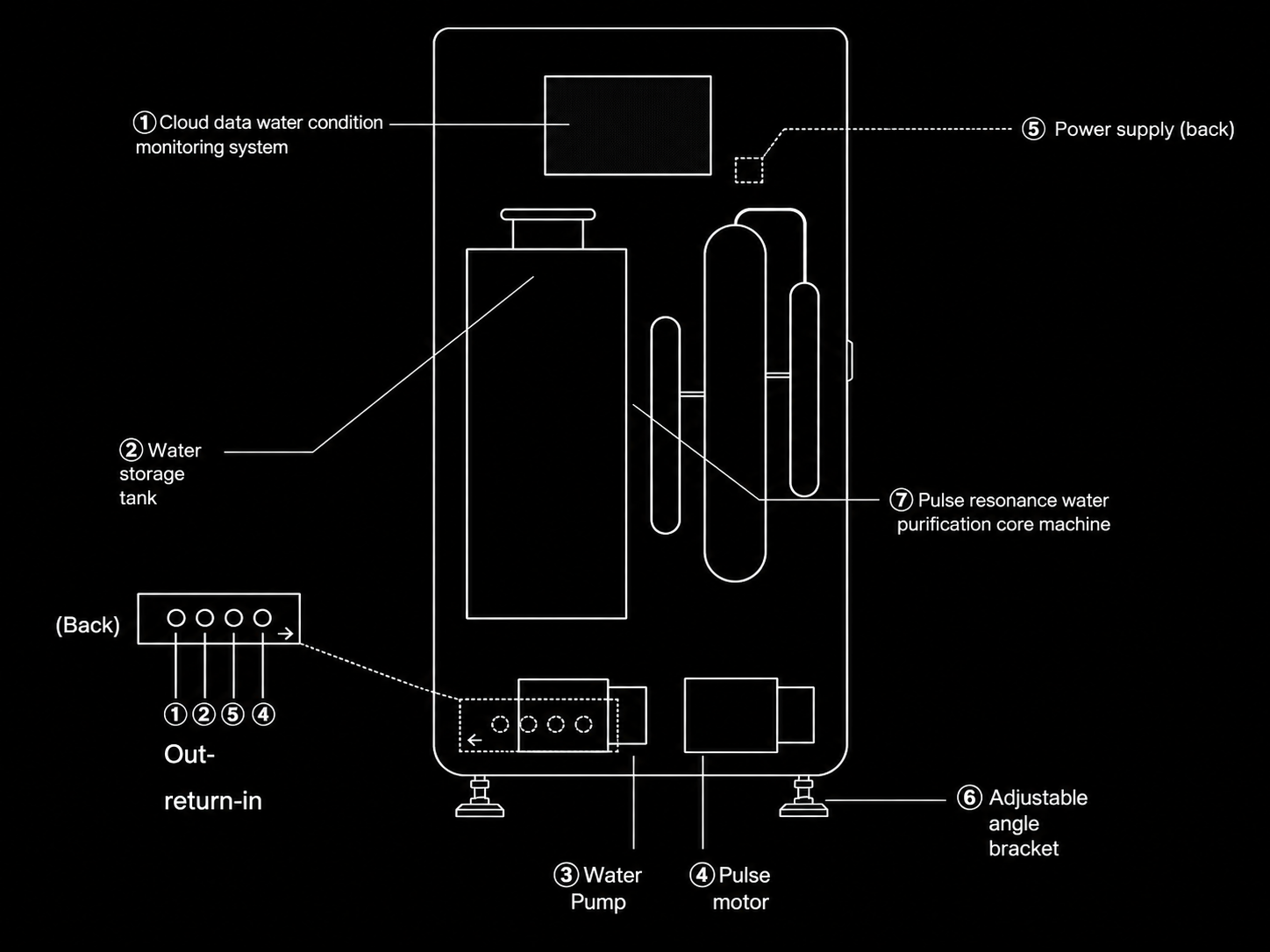

05 / SYSTEM STRUCTURE
WATER PURIFIER STRUCTURE
- Water outlet pipe Purified water output.
- Return pipe Returns circulating water to keep it fresh.
- Sewage pipe Discharges separated heavy metals and impurities as concentrated sewage, which may be used as domestic water for greening and similar applications.
- Power supply 220V AC.
- Pulse motor Silent permanent-magnet motor.
- Water pump Lifts water up to 36 meters, approximately 10 floors.
- Water storage tank Capacity of 0.3 tons.
- Cloud data monitoring system Monitors water quality and consumption.
- Adjustable angle bracket Stainless-steel, waterproof and moisture-proof construction with a 30 mm adjustment range.
- Pulse resonance water purification core machine Uses pulse resonance blasting for impurity separation.
06 / TECHNICAL DOCUMENTATION
PRODUCT PARAMETERS
Core operating, production, storage, maintenance, installation, and water-management parameters from the supplied product sheet.
PRODUCT
PARAMETERS
DWPS-T2-01 / AQUAPURE PULSE RESONANCE WATER PURIFIER
CORE PARAMETERS
- • Name
- Pulse resonance water purifier
- • Brand
- AQUAPUR3
- • Model
- AQ-R3
- • Host Power Supply
- AC 220V
- • Host Power
- Rated 550W, standby 20W
- • Water Production Rate
- 7.2T/day
- • Wastewater Ratio
- 3:1 (clean water)
- • Water Efficiency Level
- Level 1
SYSTEM & OPERATION
- • Tank Water Storage
- 0.3 tons
- • Water Source
- City tap water, rural mountain spring water
- • Warranty Period
- 1 year
- • Circulation Main Material
- Food-grade 304 stainless steel
- • Operation & Maintenance
- No consumables, no filter replacement, zero additives, double-tube live water system
- • Installation Service
- Yes
- • Product Features
- Pure physical water purification, suitable for large-scale use, easy to maintain
- • Product Functions
- Direct drinking water, water quality monitoring, water-use management
- • Installation Method
- Direct drinking through pipes; piped into the home or connected to a water table
- • Water Purification Method
- Pulse resonance blasting purification and separation; pure physical water purification
