DEPLOYED FIELD
SANITATION UNIT
DFSU-T1-01
TIER 1
A self-contained sanitation solution engineered for tactical deployments, disaster-response operations, and remote field environments. Designed for durability, privacy, and operational efficiency, it delivers reliable hygiene support under demanding conditions.
03 / KEY FEATURES
Field hygiene built for demanding operations.
Integrated sanitation fixtures support privacy, safe waste containment, efficient water use, and dependable operation in austere environments.

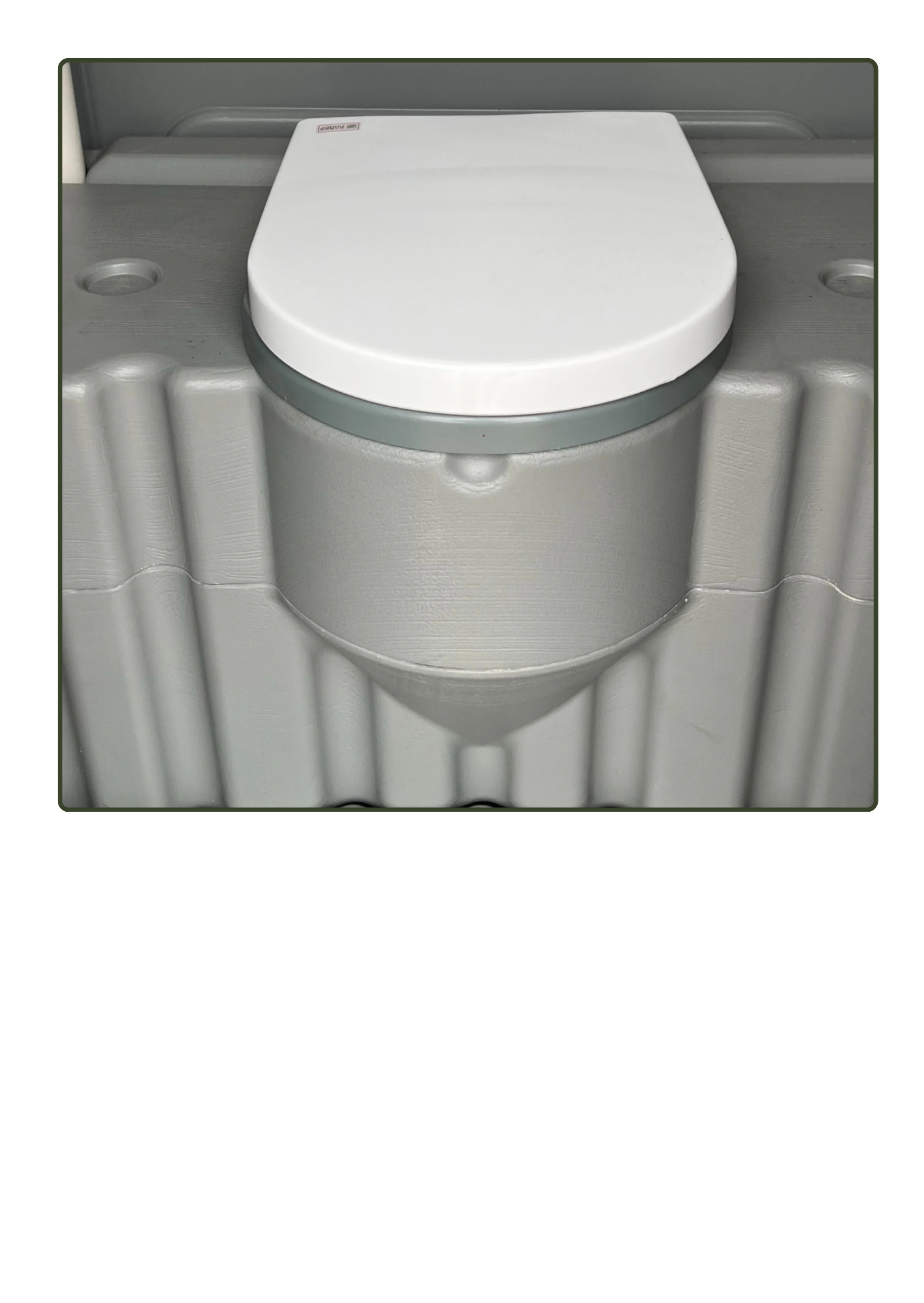

PRIMARY SANITATION FIXTURE
HEAVY-DUTY TOILET BOWL
Features a sealed integrated waste tank and reinforced ergonomic seat for secure, hygienic use. Its durable molded construction ensures stability, easy maintenance, and reliable performance in demanding operational environments.
- Sealed waste-containment system
- Reinforced ergonomic seating
- Easy-clean molded construction
- Stable configuration for field deployment

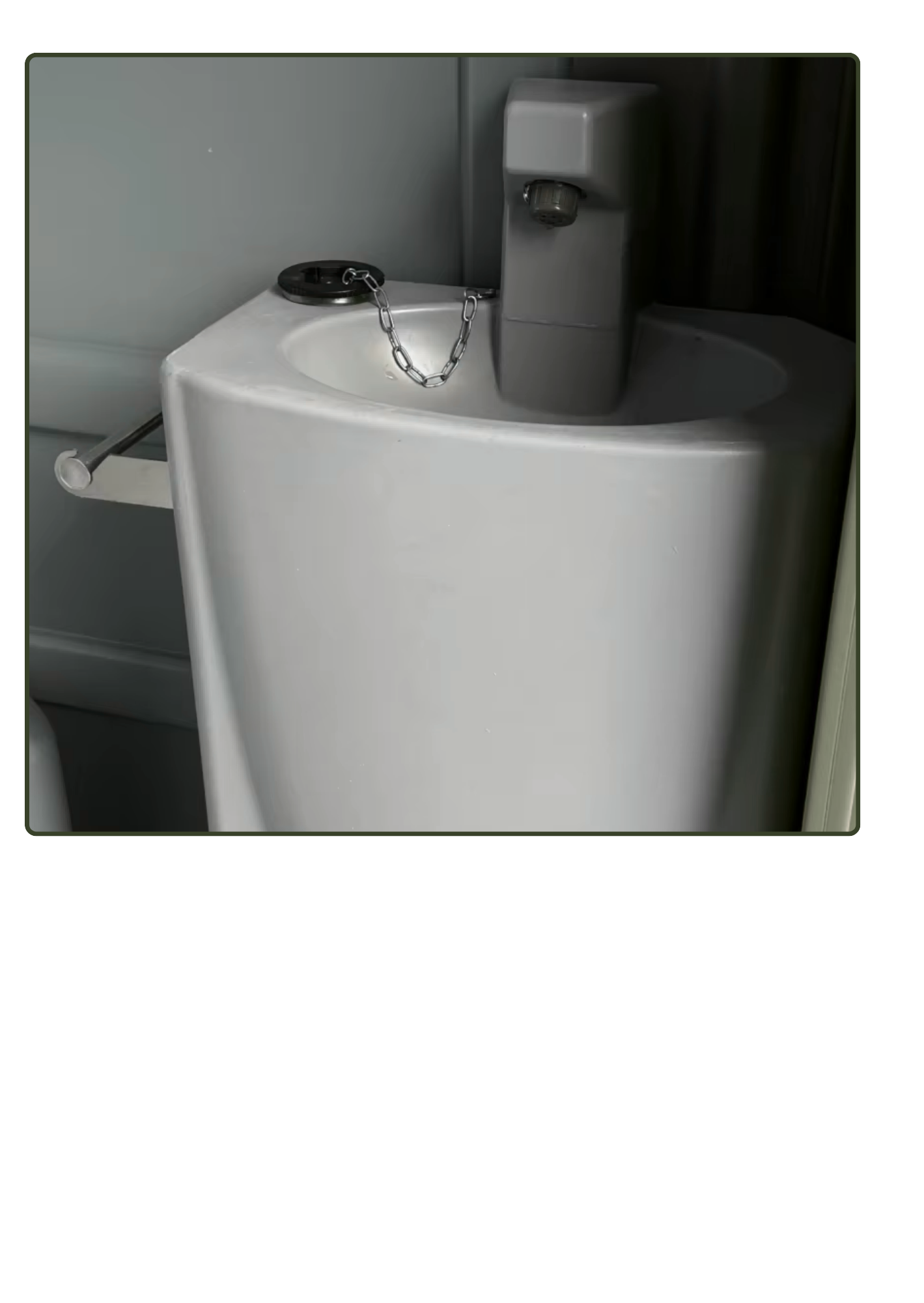

HYGIENE SUPPORT FIXTURE
INTEGRATED FIELD SINK UNIT
Designed for compact efficiency, the foldable, durable, and easy-clean construction supports water-efficient operation in remote and tactical settings.
- Compact foldable configuration
- Water-efficient handwashing support
- Durable and easy-clean surfaces
- Suitable for remote and tactical deployment
04 / TECHNICAL DOCUMENTATION
General Technical Specifications
System construction, tank capacities, accessories, operating features, and vacuum-service module requirements.
GENERAL TECHNICAL
SPECIFICATIONS
DEPLOYED FIELD SANITATION UNIT
1. UNIT SPECIFICATIONS
- • Material
- HDPE, P1-grade
- • Style
- Olive green; customizable
- • Dimensions
- 1.18 × 1.15 m; height customizable to customer requirements
- • Storage Capacity
-
Washing tank: 45 L
Waste tank: 350 L
Clean-water tank: 100 L - • Accessories
- Toilet, wash basin, water tanks, and foot pumps
- • Features
- Eco-friendly, durable, easy installation, environmental protection, IR protection, and waterproof construction
- • Service Life
- 10 years
- • Certification
- CE certification
VACUUM SERVICE MODULE
SPECIFICATIONS
WASTE AND WATER SUPPORT SYSTEM
2. SERVICE-MODULE SPECIFICATIONS
- • Vacuum Pump
- 40-3 (400 cm³), 68 L/s
- • Engine Type
- Diesel engine
- • Engine Power
- 18 HP; electric start
- • Gasoline Generator
- 12.8 kW
- • Sewage Tank
- 1,700 L
- • Clean-Water Tank
- 500 L
- • Overall Dimensions
- 3,300 × 1,800 × 1,300 mm (L × W × H)
- • Weight
- 900 kg
The vacuum-pump designation was transcribed from the supplied low-resolution specification sheet and should be confirmed against the manufacturer’s final datasheet before publication.
