ORION PRS-1
PERSONAL RECONNAISSANCE SYSTEM DRONE
TIER 3
A compact, holster-carried reconnaissance drone designed for individual soldiers, law enforcement personnel, and special operations teams. Orion provides immediate aerial situational awareness without requiring a dedicated drone operator or extensive setup. The system is envisioned to support route reconnaissance, urban surveillance, building and compound inspection, ambush detection, force protection, border security, maritime boarding operations, and search and rescue support.
03 / KEY FEATURES
PERSONAL RECONNAISSANCE SYSTEM FEATURES
Orion is built for immediate field use, combining portability, rapid deployment, and lightweight mission-ready construction to extend real-time situational awareness to the individual operator.

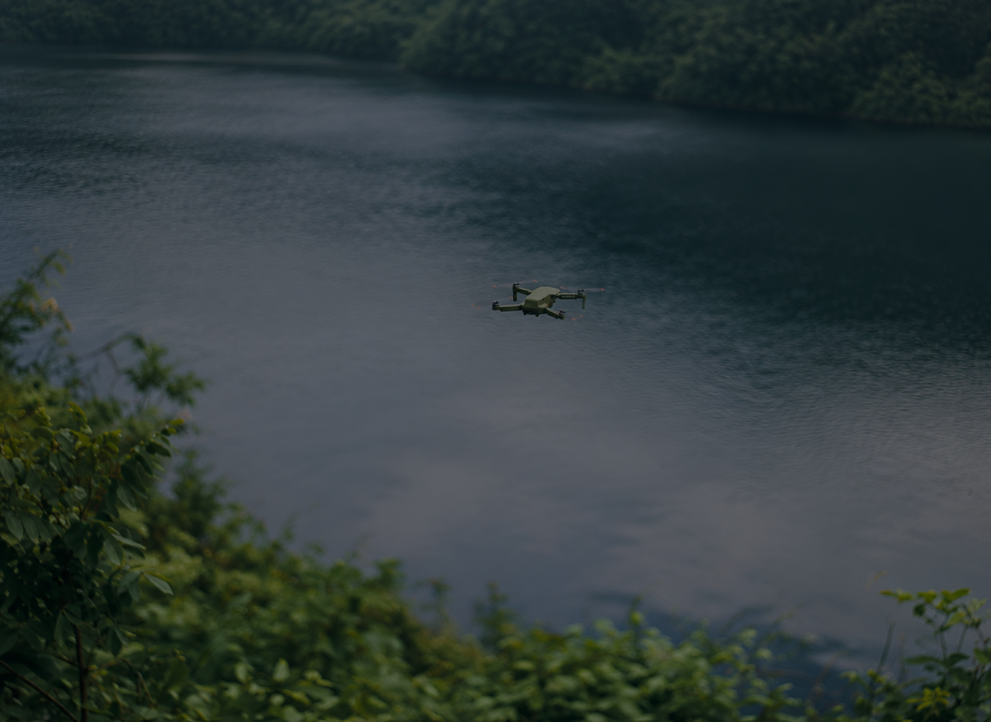

Foldable Tactical Surveillance Drone
A compact and deployable unmanned aerial system designed for rapid field operations, providing real-time aerial surveillance, reconnaissance, and situational awareness. Its foldable design enables easy transport, quick deployment, and reliable performance in challenging environments.

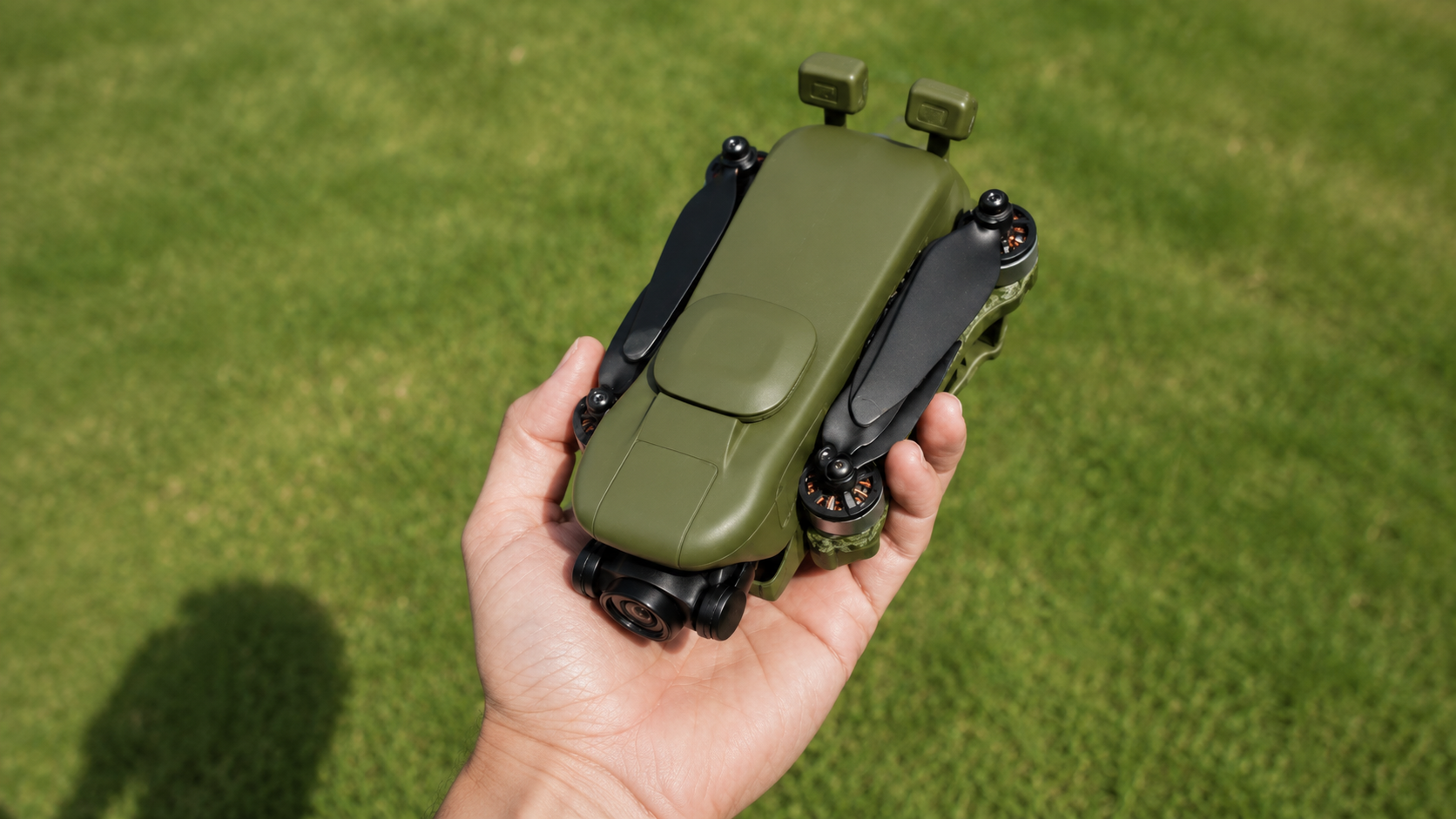

QUICK THROW-LAUNCH MECHANISM
Immediate drone release and automatic stabilization after launch, allowing operators to deploy the UAV quickly in time-sensitive missions.

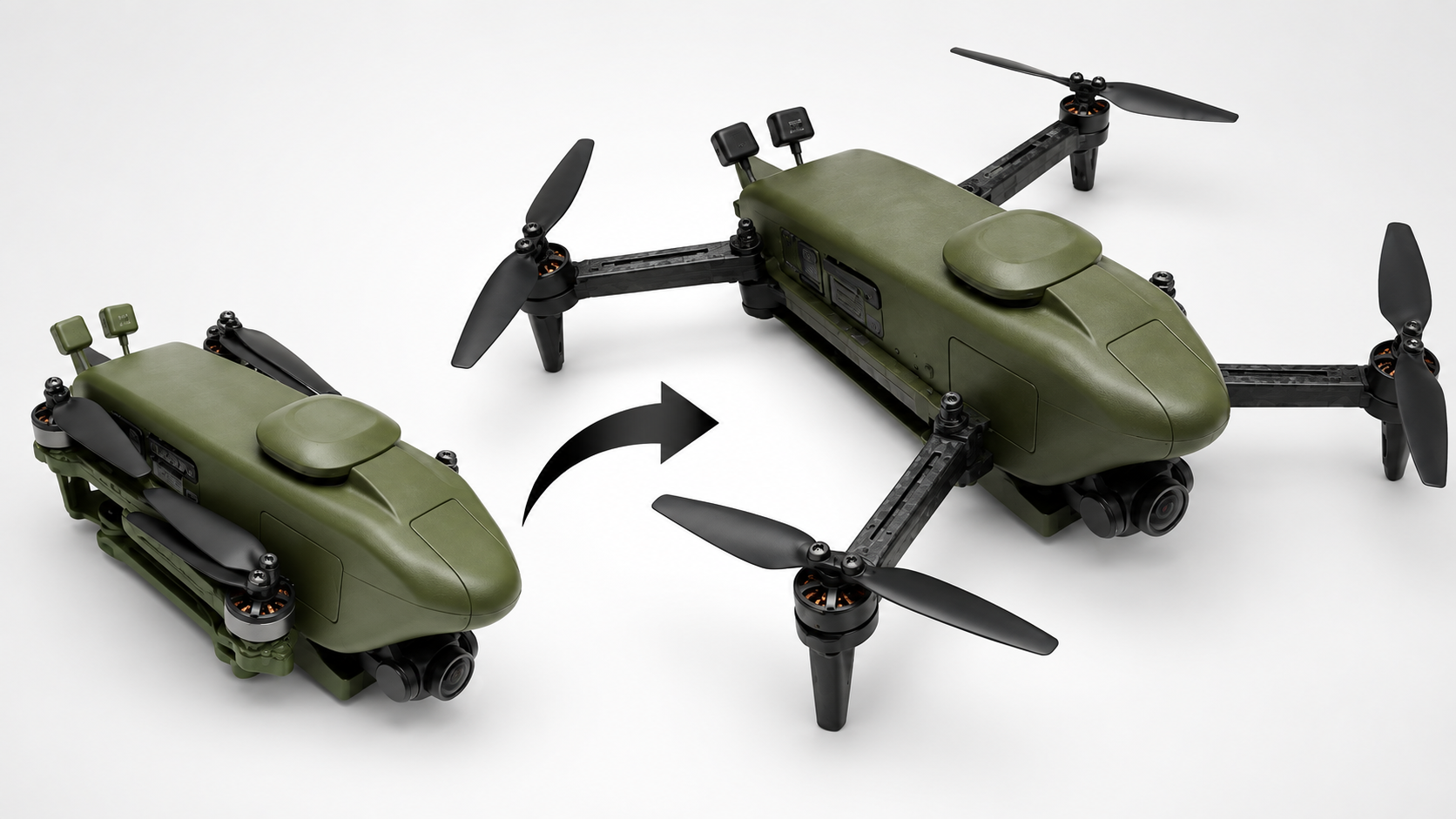

FOLDABLE & Lightweight Construction
Lightweight, rigid structure designed for durability, vibration resistance, and stable flight in demanding environments.
04 / OPERATOR VISION SYSTEM

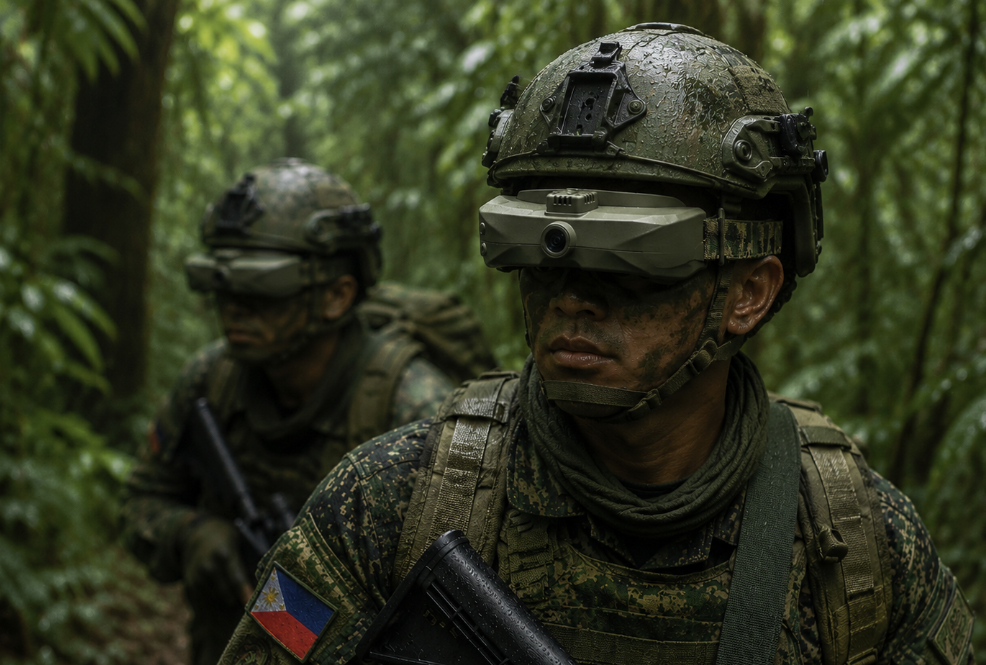

Dual-Mode Tactical Smart Goggles
A lightweight tactical vision system designed for modern field operations, featuring dual functionality that allows operators to switch between normal optical view and real-time drone camera view through dedicated toggle switches located on the right side of the goggles.
05 / SMART GOGGLES FEATURES
TACTICAL GOGGLE SYSTEM FEATURES
Integrated viewing functions provide the operator with seamless transition between direct observation and drone-fed perspective during reconnaissance operations.

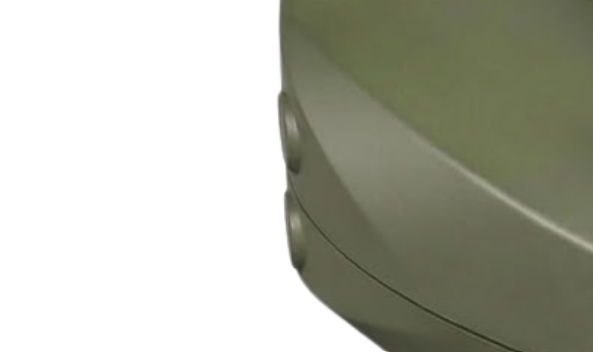

Vision Mode Selector
A side-mounted control switch enables quick switching between normal optical view and drone camera view, enhancing situational awareness.

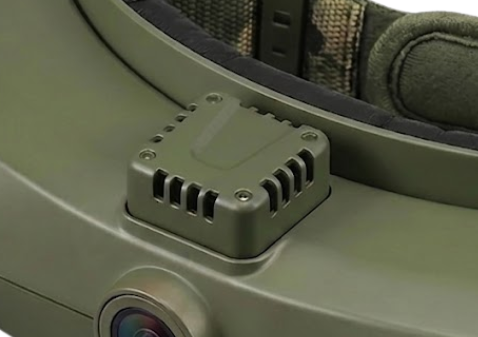

Tactical Protective Housing
Durable, lightweight housing protects internal electronics and offers a compact, ergonomic design for field operations.

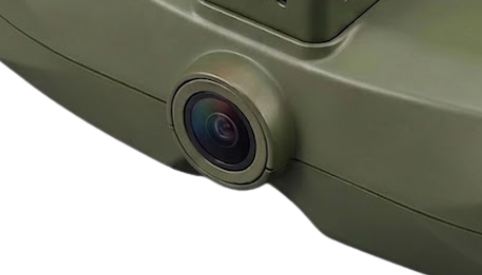

Real-Time Visual Interface
Front-facing camera module for live imagery and remote drone perspective viewing in reconnaissance missions.
06 / CARRY SYSTEM

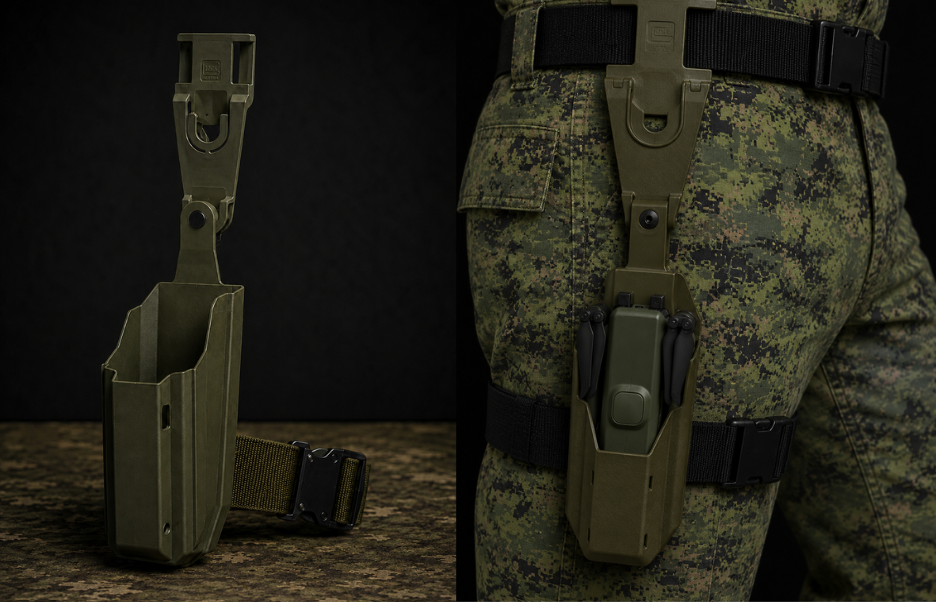

Integrated Wearable Drone Holster System
The lightweight tactical holster allows hands-free movement while keeping the drone protected, accessible, and ready for immediate launch when required.
07 / HOLSTER FEATURES
WEARABLE HOLSTER SYSTEM FEATURES
Designed for mobility and quick accessibility, the integrated holster system supports efficient carriage and rapid deployment during tactical movement.
Lightweight & Durable
Built for extended field use with high-strength materials.
Quick-Access Design
Enables rapid retrieval and deployment of carried equipment.
Adjustable Fit System
Customizable positioning for different users and operational requirements.
Low-Profile Tactical Profile
Maintains mobility while reducing bulk and interference during movement.
08 / TECHNICAL DOCUMENTATION
GENERAL TECHNICAL SPECIFICATIONS
Technical configuration covering flight performance, onboard systems, optics, transmission, power, control, navigation, and operator package details for the Orion PRS-1 platform.
ORION PRS-1
PERSONAL RECONNAISSANCE SYSTEM DRONE / TECHNICAL SPECIFICATIONS
| ITEM | TECHNICAL SPECIFICATIONS |
|---|---|
| Cruising speed | 35km/h |
| Maximum speed | 80km/h |
| Maximum altitude | 2.5km |
| Net weight | 400g |
| Flight range | 5km |
| Endurance | 20min (depends on wind condition) |
| Folded product dimension | L:130mm W:45mm Height: 35mm |
| Flight controller | F405 Mini stack |
| Normal camera |
Image Sensor: 1/2.8" Starlight CMOS Sensor Horizontal Resolution: 1500TVL Lens: FOV D155° H122° V82° | FOV D138° H122° V88° Screen Format: 4:3 / 16:9 Mirror/Flip: Available Signal system: NTSC/PAL WDR: Global WDR Day/Night: Color/BW Menu Control: Cable Control Power: DC 5-36V Current: 120mA@5V / 220mA@12V Housing Material: ABS |
| IR camera |
Detector type: Uncooled Vanadium Oxide Resolution: 640*512@12μm Wavelength Range: 8-14μm Lens: F1.0 / 9.1mm Frame Rate: 50fps Power Consumption: <1.5W Output: NTSC/PAL Supply Voltage: 9V-24V |
| VTX (video transmitter) | Caddx Vista (5.725-5.850GHz, Max. Transmission Distance: FCC/SRRC: 4km; I/O Interface: USB-C, IPEX, 3-in-1 port) + NeutronRC AVLink |
| Motor | 412004 3000KV Brushless DC motor |
| Antenna | RHCP & LHCP IPEX |
| Receiver |
Frequency: 2.4G/915MHz Antenna: 1 antenna (54*78mm, 0.8g) Chip: SX1280+ESP8285 Input voltage: 5V Antenna connector: IPEX1 Dimension: 10.4mm × 18.4mm |
| GPS | WS-M181 M10 160dbm GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic-Antenna |
| Propeller | 4005 0.8 × 2 blade / folded (including spare) 4 inch |
| Battery | 7.4V 2S × 3 Lithium-ion 2250mAh |
| Material | High quality grade ABS |
| Remote controller | ELRS 2.4GHz Remote Controller 8 channel Transmitter |
| Package include | 1 Set of Drone, 1 remote control, 4 pcs propeller, 1 FPV Dual-vision goggles, 1 Remote Controller, 1 Integrated Wearable Drone Holster |
